Quick Details
-
Fork Length:
-
1070 mm
-
Fork Width:
-
125 mm
-
Overall Dimensions:
-
1070*125*45 mm
-
Weight (KG):
-
3000 kg
-
Rated capacity(Kg):
-
3000
-
Load centre(mm):
-
500
-
Max.lifting height(mm):
-
3000
-
Free lifting height(mm):
-
125
-
Fork size(mm):
-
1070*125*45
-
Mast tilt angle(deg):
-
6/12
-
Min.turning radius(mm):
-
2520
-
Max.traveling speed(km/h):
-
20
-
Max.lifting speed(mm/s):
-
500/520
-
Tread(front/rear)(mm):
-
1030/980
Quick Details
-
Min. Lifting Height:
-
105mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Fork Length:
-
1070 mm
-
Fork Width:
-
125 mm
-
Overall Dimensions:
-
1070*125*45 mm
-
Weight (KG):
-
3000 kg
-
Rated capacity(Kg):
-
3000
-
Load centre(mm):
-
500
-
Max.lifting height(mm):
-
3000
-
Free lifting height(mm):
-
125
-
Fork size(mm):
-
1070*125*45
-
Mast tilt angle(deg):
-
6/12
-
Min.turning radius(mm):
-
2520
-
Max.traveling speed(km/h):
-
20
-
Max.lifting speed(mm/s):
-
500/520
-
Tread(front/rear)(mm):
-
1030/980
Contact Way
Alune Xie —— Sales Manager
Mobile/Wechat/WhatsApp: +86 193-1332-9653
Email: alune@richmchn.com
Email: alune@richmchn.com
Products Description

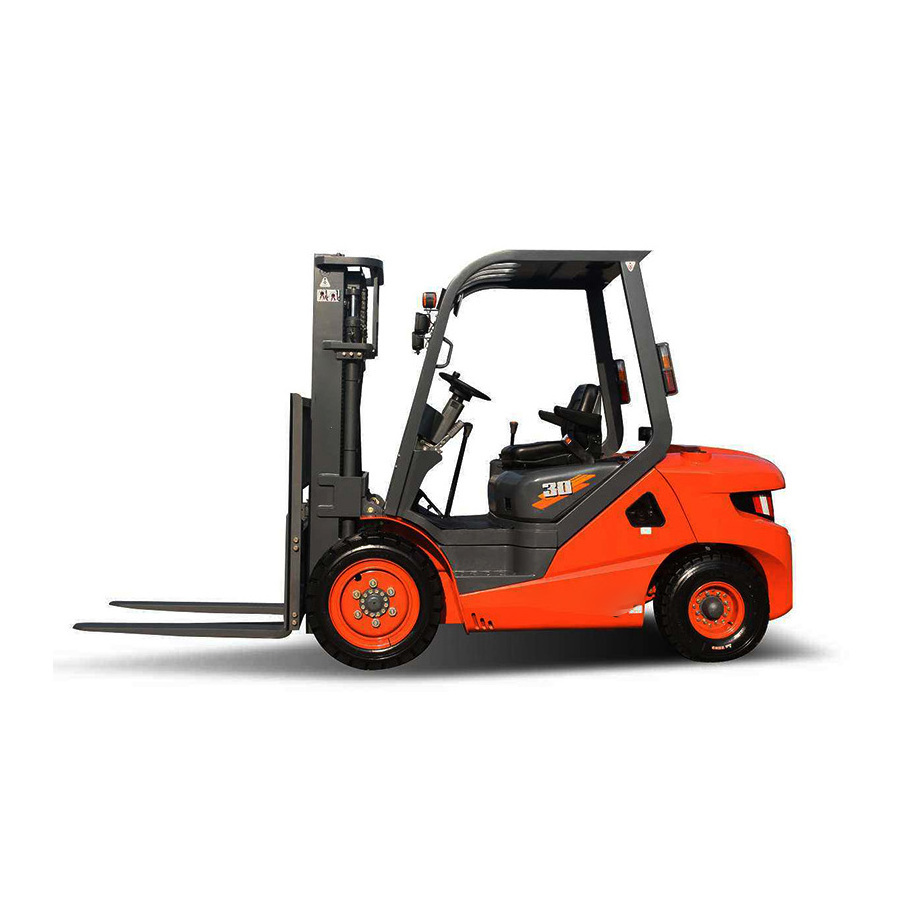

3 ton forklift LG30GLT
Lower pollution
High efficiency hydraulic system decreases the fuel consumption;
This lift truck is equipped with high performance engine to meet EU EC and USA EPA new regulations.
Ergonomics Improved
Right located control lever effectively reduces driver’s arm tiredness;
Make the operator get wider and better visibility through c and optimal design for the box iron, cylinders, chain of mast;
The operator’s legroom is twice to other series with optimized construction;
Conveniently behavior with electro-hydraulic direction changing lever and automobile type double joystick combined switch;
Small diameter steering wheel reduces driver’s left shoulder’s fatigue and makes driving comfortable;
Suspension seat with handrail and seat belt ensure the operator’s safety and comfort;
The dynamic braking system decreases the braking force sharply.
Reliability Improved
Automatic monitor control system could ensure the monitor working stably and safely;
The high strength special-shaped overhead guard is designed to ensure the safety;
Applying the park brake system safety protection device, avoid the hidden danger caused by faulty operation;
Safety wire harness, Reliability and good Maintainability;
More safety operation with the OPSS system;
Lower damping device inside the lifting system reduces mast shock and vibration, improving the whole truck’s safety and
reliability.
High efficiency hydraulic system decreases the fuel consumption;
This lift truck is equipped with high performance engine to meet EU EC and USA EPA new regulations.
Ergonomics Improved
Right located control lever effectively reduces driver’s arm tiredness;
Make the operator get wider and better visibility through c and optimal design for the box iron, cylinders, chain of mast;
The operator’s legroom is twice to other series with optimized construction;
Conveniently behavior with electro-hydraulic direction changing lever and automobile type double joystick combined switch;
Small diameter steering wheel reduces driver’s left shoulder’s fatigue and makes driving comfortable;
Suspension seat with handrail and seat belt ensure the operator’s safety and comfort;
The dynamic braking system decreases the braking force sharply.
Reliability Improved
Automatic monitor control system could ensure the monitor working stably and safely;
The high strength special-shaped overhead guard is designed to ensure the safety;
Applying the park brake system safety protection device, avoid the hidden danger caused by faulty operation;
Safety wire harness, Reliability and good Maintainability;
More safety operation with the OPSS system;
Lower damping device inside the lifting system reduces mast shock and vibration, improving the whole truck’s safety and
reliability.
Applications:
as lifting and transport machineries, G series 1-1.8T Diesel / Gasoline / LPG Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and soon. With other attachments of fork lift truck
Details Images
Product Paramenters
|
MODEL
|
LG30GLT
|
|
|
Power type
|
Gasoline/LPG
|
|
|
Rated capacity(Kg)
|
3000
|
|
|
J Load centre(mm)
|
500
|
|
|
h1STD Max lifting height(mm)
|
3000
|
|
|
h3 Free lifting height(mm)
|
125
|
|
|
L5*W*TSTD Fork size(mm)
|
1070×125×45
|
|
|
Mast tilt angle(deg)
|
6/12
|
|
|
L3 Front overhang(mm)
|
487
|
|
|
L4 Rear overhang(mm)
|
550
|
|
|
R1Min.turning radius(mm)
|
2520
|
|
|
Min.intersectingaisle(mm)
|
4200
|
|
|
Speed(load/unload)
|
|
|
|
Max.traveling speed(km/h)
|
20
|
|
|
Max,lifting speed(mm/s)(load/unload)
|
500/520
|
|
|
Max.gradient(%)
|
20
|
|
|
STD Dead weight(kg)
|
4200
|
|
|
S/PTread(front/rear)(mm)
|
1030/980
|
|
|
L2Axle distance(mm)
|
1750
|
|
|
Min.ground clearance
|
|
|
|
m2Mast(mm)
|
130
|
|
|
m1Frame(mm)
|
165
|
|
