Quick Details
Quick Details
-
Place of Origin:
-
Shanghai, China
Feature

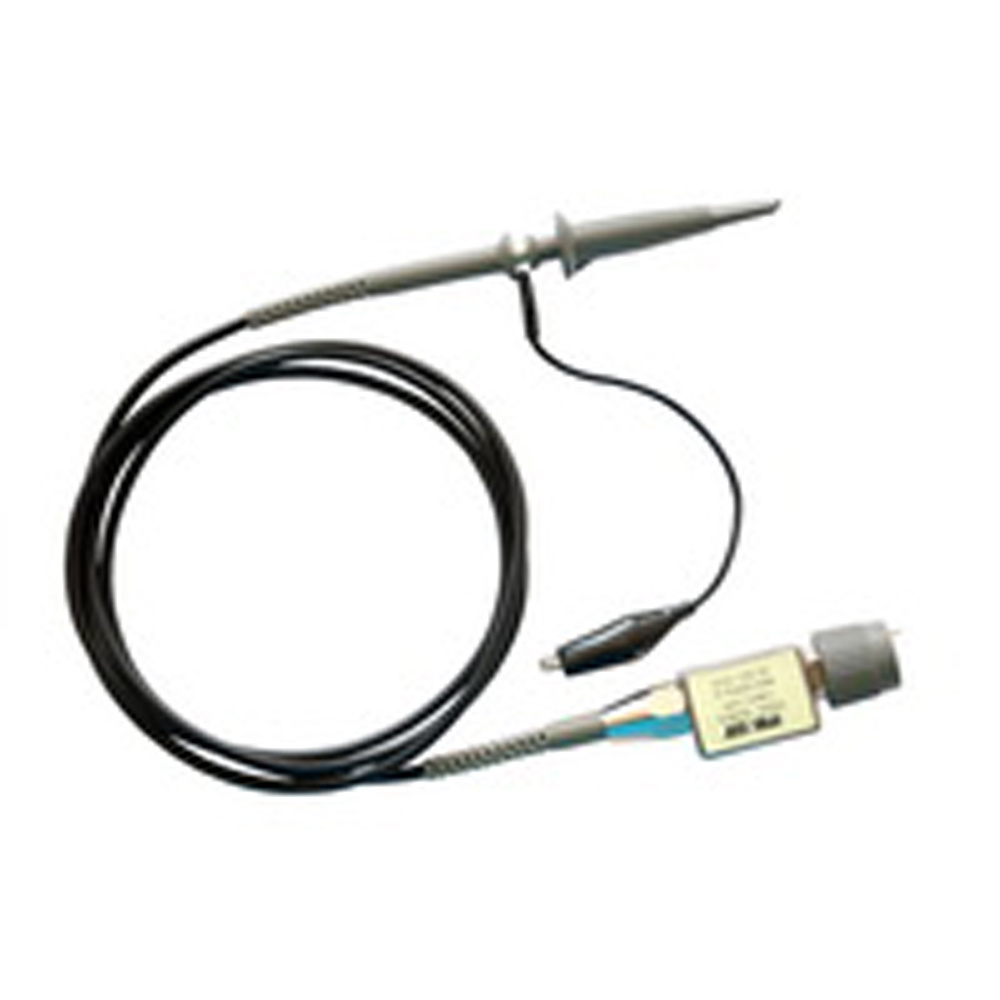

.Bandwidth up to 500MHz
.With a metal-box which has high frequency
compensation hole for HF adjust on any oscilloscope
.Meet IEC-1010, 600Vpp, CATIII
| Specifications | PTL-960-25 | PTL-960-30 | PTL-960-50 |
| Attenuator | X10 | ||
| System Rise-time(ns) | ≤1.4ns | ≤1.15ns | ≤0.7ns |
| System Bandwidth (3dB)MHz | X1: DC-6MHz | X1: DC-6MHz | X1: DC-6MHz |
| X10: DC-250MHz | X10: DC-300MHz | X10: DC-500MHz | |
| Voltage Max. | 600V (DC + Peak AC) | 600V (DC + Peak AC) | 600V (DC + Peak AC) |
| Compensation range(pf) | 9~30 | 9~25 | 9~25 |
| Input Res.(Mohm) | 10 | 10 | 10 |
| Input Cap.(Pf) | 12~15 | 10~13 | 10~13 |
| Cable length | 120cm | 120cm | 120cm |
