Quick Details
-
Brand Name:
-
HT Solar
-
Model Number:
-
HT-FM100W-72P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
630*540*60mm
-
Color:
-
Black Blue
-
Weight:
-
10kg
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP67 rated with TUV
-
Back Cover:
-
TPT(Tedlar-PET-Tedlar)
-
Solar cell:
-
Mono 156*156 Cell
-
OEM Order:
-
Support
-
Factory capacity:
-
600 MW/Year
-
Certificate:
-
IEC61215
Quick Details
-
Type:
-
PERC
-
Panel Efficiency:
-
14.70%
-
Warranty:
-
5 years, 25 years long life service
-
Brand Name:
-
HT Solar
-
Model Number:
-
HT-FM100W-72P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
630*540*60mm
-
Color:
-
Black Blue
-
Weight:
-
10kg
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP67 rated with TUV
-
Back Cover:
-
TPT(Tedlar-PET-Tedlar)
-
Solar cell:
-
Mono 156*156 Cell
-
OEM Order:
-
Support
-
Factory capacity:
-
600 MW/Year
-
Certificate:
-
IEC61215

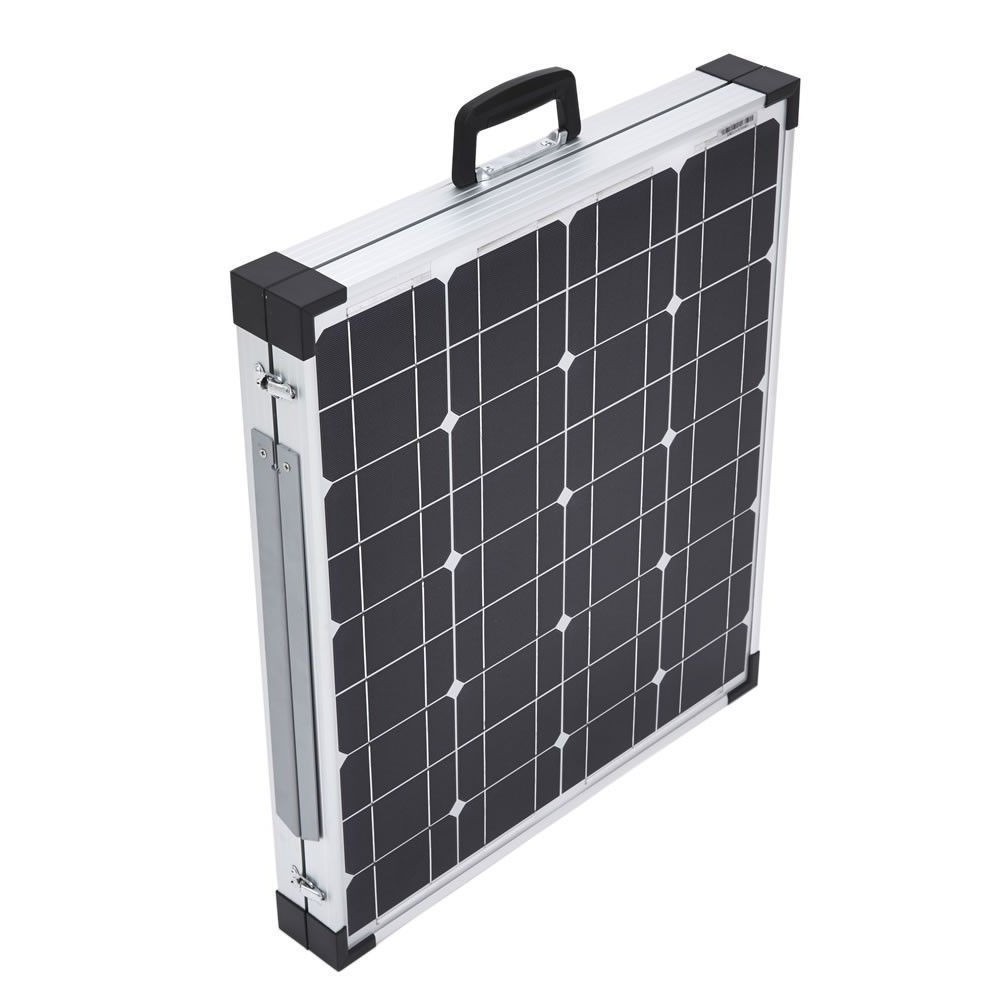

100 Watt Mono PV Folding Solar Panel 12V RV Boat Off Grid-2 by 50W
Product Description
| Electrical Characteristic: | |
| Module Type | HT-M100W-72P |
| Peak power | 100W 3%Toleracne |
| Optimum Operating Voltage(Vmp) | 18.0V |
| Optimum Operating Current(Imp) | 5.56A |
| Open-Circuit Voltage(Voc) | 21.6V |
| Short-Circuit Current(Isc) | 6.12A |
| Maximum system voltage | DC1000V |
| Warranty |
5 years product defect warranty.
90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | HT-M100W-72P |
| Size | 630*540*60mm |
| Weight | 10kg |
| No. of Cells | 72(8*9) pcs |
| Cell dimension | Mono 156*156mm |
| Front cover | 4.0 mm (0.16 inches) tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP67/IP65 rated |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure | 60m/s(200kg /m² ) |
