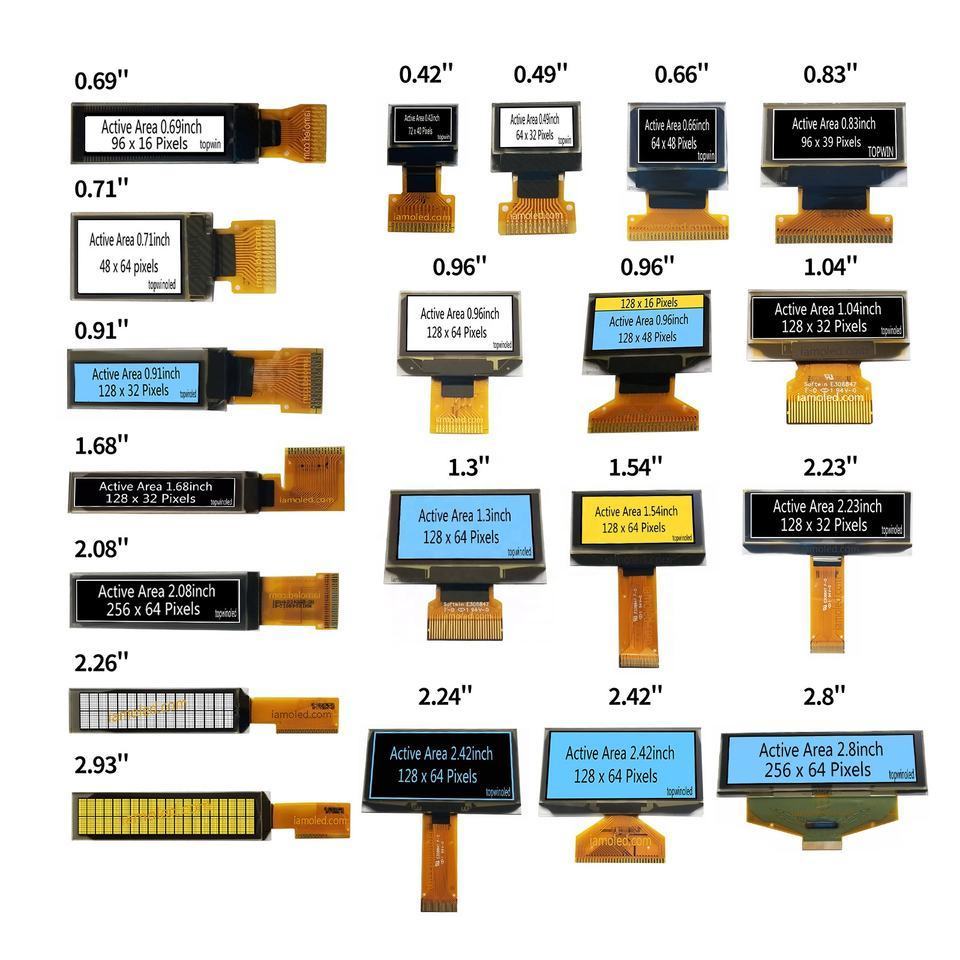

best quality 0.69" 0.71" 0.91" 0.96" 2.23" 3.2'' 3.2 inch full color small oled display panel mini oled for wearable devices

FOB Reference Price: Get Latest Price

≥2 Pieces

US $0.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Topwin

Display Mode:: Passive Matrix

Driver IC:: check the list

Interface:: Parallel, 3-/4-wire SPI, I2C

Display Color:: Monochrome

Datasheet:: Pls contact our sales

Panel Size:: check the list

Active Area:: check the list

Product Name:: oled display panel

Size:: From 0.32~5.5inch

Quick Details

Type:: PMOLED

Display Size:: 0.32~5.5inch

Place of Origin:: Guangdong, China

Brand Name:: Topwin

Display Mode:: Passive Matrix

Driver IC:: check the list

Interface:: Parallel, 3-/4-wire SPI, I2C

Display Color:: Monochrome

Datasheet:: Pls contact our sales

Panel Size:: check the list

Active Area:: check the list

Product Name:: oled display panel

Size:: From 0.32~5.5inch

Product description

Product Information

Display Type	Oled Display
Oled Color	White/Blue/Yellow/Green
Display Mode	Passive Matrix
Datasheet:	Pls check with our sales, will send it immediately
Lead time:	Sample order: 1~2 working day. Bulk order: depends on QTY.
MOQ:	No MOQ
FPC	Soldering/Connector
Size	Monochrome: from 0.32~5.5inch
Interface	Parallel, 3-/4-wire SPI, I2C
Driver IC:	Full options
Operating Temperature:	-40~85°

More products

Display	Resolution	Driver IC	Panel size	AA Size	Interface	Product link
0.32inch	60x32	1315	9.96X6.26X1.2	7.06X3.82	I2C	click here
0.42inch	72X40	1315	12x11x1.25	9.2X5.18	I2C/SPI	click here
0.49inch	64x32	1315	14.5x11.6x1.2	11.18X5.58	I2C	click here
0.5inch	48X88	1115	8.93×17.1×1.23	6.124×11.244	I2C	click here
0.54inch	96x32	1115	18.52×7.04x1.23	12.46×4.14m	I2C	click here
0.63inch	28x120	1312	21.54×6.62×1.22	15.58×3.62	I2C	click here
0.66inch(1)	64X48	1306	18.46x18.1x1.25	13.42×10.06	Parallel /I2C/ SPI	click here
0.66inch(2)	64X48	1305	16.42×16.9×1.25	13.42×10.06	Parallel /I2C/ SPI	click here
0.69inch(1)	16x96	1306/1315	8x26.3×1.2	3.18x17.26	I2C	click here
0.69inch(2)	16x96	1312	6.9X24×1.25	3.18x17.26	I2C	click here
0.71inch	48X64	1306	13.9x22x1.2	10.54x14.7	I2C/SPI	click here
0.77inch	64X128	1312	12.13x23.6x1.22	9.26x17.26	I2C/SPI	click here
0.78inch	80X128	1317	12.13X23.6X1.22	9.68X17.26	I2C	click here
0.83inch	96x39	1306	23.8X16.2X1.30	19.37X7.86	Parallel/I2C/SPI	click here
0.84inch	16X96	1306	9.2X29.1X1.30	3.504X21.04	I2C	click here
0.87inch	32X128	1312	8.58X28.54×1.2	5.58X22.38	I2C/SPI	click here
0.91inch	32X128	1306	11.50X30.0X1.2	5.584X22.38	I2C/SPI	click here
0.96inch(1)	128x64	1306/1315	26.7x19.26x1.45	21.744×11.2	Parallel/I2C/SPI	click here
0.96inch(2)	128x64	1315	24.74×16.6×1.2	21.74×10.86	Parallel/I2C/SPI	click here
0.96vertical	64X128	1312	14×28×1.22	10.86×21.74	I2C/SPI	click here
0.96square	96x96	1317	20.5X23.8X1.2	17.26X17.26	I2C	click here
1.04inch	128x32	1306	14.5x29.8x1.30	25.58x6.38	Parallel/I2C/SPI	click here
1.1inch	64X128	1115	14×31.96×1.22	10.86×25.58	SPI	click here
1.12inch	128X128	1107	27×30.1×1.25	20.14×20.14	Parallel/I2C/SPI	click here
1.3inch	128X64	1306/1106	34.5x23.0x 1.4	29.42×14.7	Parallel/I2C/SPI	click here
1.3vertical	64X128	1312	17.1×35.8×1.41	14.7×29.42	I2C/SPI	click here
1.32inch	128X96	1327	32.6×28.3X1.60	26.86×20.14	SPI	click here
1.4inch	160x160	1120	29x31.9x1.427	25x24.815	Parallel/I2C/SPI	click here
1.5inch	128x128	1107	33.9X37.3X1.44	26.86X26.86	Parallel /I2C/ SPI	click here
1.54inch	128X64	1309/1116	35.052×17.516	35.05×17.52	Parallel /I2C/ SPI	click here
1.78inch	128x32	1312	42.218×10.538	42.22×10.54	Parallel /I2C/ SPI	click here
1.92inch(1)	128x160	1108	32.9×46.55X1.22	28.91×39.34	Parallel /I2C/ SPI	click here
1.92inch(2)	128x160	1127	34.5×48.8X1.4	28.91×39.34	Parallel /I2C/ SPI	click here
2.05inch	128x32	1309	55.6x21.8x1.45	50.54x12.62	Parallel /I2C/ SPI	click here
2.08inch	64x256	1122	19x60.5x1.6	12.78x51.18	Parallel /I2C/ SPI	click here
2.23inch	128x32	1305/1309	62x24x2	55.02×13.1	Parallel /I2C/ SPI	click here
2.42inch	128x64	1309	60.5×37×1.8	55.01×27.49	Parallel /I2C/ SPI	click here
2.7inch(1)	128x64	1325/1322	73x41.86x2	61.41X30.69	Parallel/SPI	click here
2.7inch(2)	128x64	1327	73x40.24x2	61.41X30.69	Parallel/SPI	click here
2.7inch(3)	256x128	1322	73x41.86x2	61.41X30.69	Parallel/SPI	click here
2.8inch	256x64	1322	84x25.8x2	69.10X17.26	Parallel/SPI	click here
2.8vertical	64X256	1122	28.50X80.50X2	17.255x 69.1	Parallel /I2C/ SPI	click here
3.12COF	256x64	1322	88x27.8x2	76.78X19.18	Parallel/SPI	click here
3.12COG	256x64	1322	88x27.8x2	76.78X19.18	Parallel/SPI	click here
3.12vertical	64X256	1362	25.8X86.9X2.0	19.18X76.78	Parallel /I2C/ SPI	click here
3.4inch	240X128	1322	89.52X54.41X2	75.58X40.30	Parallel/SPI	click here
5.5inch	256x64	1322	146x45x2	135.65X33.89	Parallel/SPI	click here
0.6color	64X64	1357	15x17.5x1.2	10.73X10.73	SPI	click here
0.95color	96X64	1331	25.7X22.2X1.2	20.14X13.42	Parallel/SPI	click here
0.96color	64X128	1357	14.86X28.4X1.02	10.86X21.74	Parallel/SPI	click here
1.12color	96X96	SEPS114A/1357	25.9x30.1x1.3	19.85X19.85	Parallel/SPI	click here
1.27color	128X96	1351	33.7x26.9x1.6	27.708X19.28	Parallel/SPI	click here
1.45color	160X128	SEPS525/1333	35.8x30.8x1.4	28.78X23.024	Parallel/SPI	click here
1.5coclor	128X128	1351	33.8x34x1.6	26.86X26.864	Parallel/SPI	click here
1.69color	160X128	SEPS525/1333	39.9X34X1.6	33.575X26.864	Parallel/SPI	click here

Company profile

Team exposition

Practical application

Packing shipping

FAQ

1. What’s the trade team .FOB. Product prices exclude shipping costs. And shipping cost will be quoted separately.

2. What is the delivery method? Option1： By Economical express if the order is not urgent.

Option2: By UPS/DHL/FEDEX 3. What is the payment method? T/T in advance. (For bulk orders: 30% deposit & balance before delivery)

4. How long is the delivery time? Samples:1~2 working days.

Bulk orders: We usually have standard models in stock. If the qty is large, pls check with our sales. . 5. Is there a MOQ? No.We would be happy to provide samples. 6. Is it possible to customize? Accept customization. 7. Is there technical support? We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.

8.Do you have any certificates?

Of course! We were founded in 2005, have specialised in the display industry for 18 years. We have ISO, CE, RoHS certificates, feel free to contact our sales to get our company profile.

9.How do I pay?

Pls contact with our sales, we will creat the order link for you, you can choose Credit Card, PayPal, T/T.

10. How long is the warranty?

One year.

About Topwin:

TOPWIN was founded in 2005, specialising in the electronic display industry for over 18 years and exporting products to over 30 countries worldwide, providing the most suitable displays for electronic devices in different industries.

We have ISO,CE,RoHS certificates, experienced engineers for technical support, the most complete range of products on the market, and most models we keep in stock and can be shipped within 1~3 working days.

In addition, we have strict production quality control, always insist on providing high quality and cost-effective displays, and have established long-term and stable relationships with customers all over the world.
