Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
SP5225A
-
Weight (KG):
-
71 KG
-
Marketing Type:
-
Top 1 selling mature products!!
-
drilling cap.:
-
25mm
-
spindle travel:
-
85mm
-
class of speed:
-
12
-
swing:
-
360
-
table size:
-
290*290mm
-
base size:
-
460*272mm
-
column dia.:
-
80
-
Color:
-
Customized Option
-
Power(W):
-
750/1100W
-
Name:
-
25MM central machinery parts for drill press SP5225A
Quick Details
-
type:
-
floor drill press
-
Max. Drilling Dia. (mm):
-
25
-
Range of Spindle Speed(r.p.m):
-
280 - 2380 r.p.m
-
Place of Origin:
-
China
-
Model Number:
-
SP5225A
-
Weight (KG):
-
71 KG
-
Marketing Type:
-
Top 1 selling mature products!!
-
drilling cap.:
-
25mm
-
spindle travel:
-
85mm
-
class of speed:
-
12
-
swing:
-
360
-
table size:
-
290*290mm
-
base size:
-
460*272mm
-
column dia.:
-
80
-
Color:
-
Customized Option
-
Power(W):
-
750/1100W
-
Name:
-
25MM central machinery parts for drill press SP5225A
Drill capacity 25mm
central machinery parts for drill press SP5225A
zjq5125
Products Description
Quick Detail:
Drilling capacity: 25mm
Motor power: 750/900W
Class of Speed: 12
Spindle taper: MT3
Description:

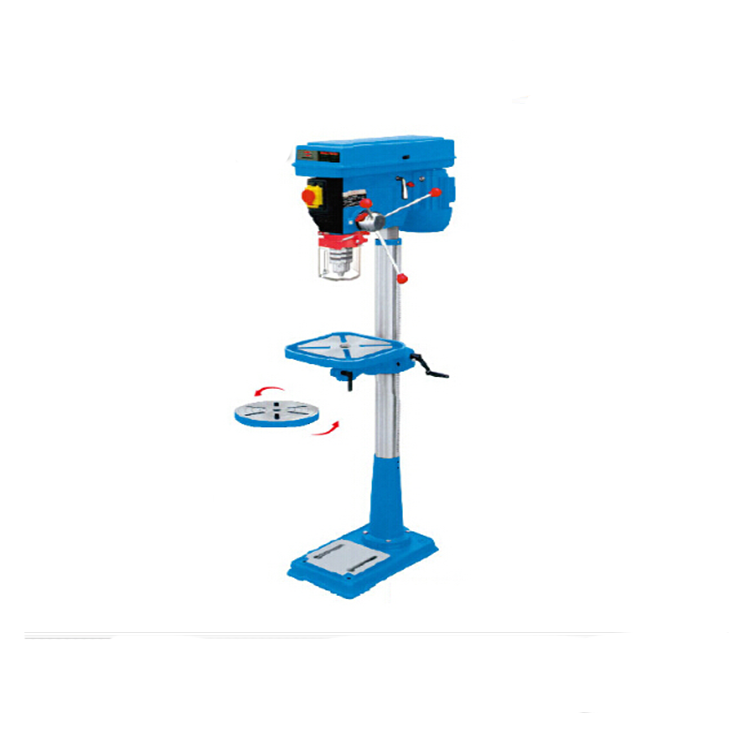

SP5225A Mini machine drill press belongs to one of our most Mini machine drill press. It is new condition not used Mini machine drill press. And it is medium in size and delicate in design. This medium size machine drill press is made in China, but have the similar quality with German drill press. The main features are as below:
1. Adjustable depth stop
2. Quiet belt drive operation
3. FWD/REV toggle switch
4. Headstock runs in precision-bearings
5. Speeds allow selection of optimum speeds at the work piece
6. Cast iron plastic handle, easy to operate
7. Humanized design, electromagnetic switch is available.
8. High precision.
Drilling capacity: 25mm
Motor power: 750/900W
Class of Speed: 12
Spindle taper: MT3
Description:
SP5225A Mini machine drill press belongs to one of our most Mini machine drill press. It is new condition not used Mini machine drill press. And it is medium in size and delicate in design. This medium size machine drill press is made in China, but have the similar quality with German drill press. The main features are as below:
1. Adjustable depth stop
2. Quiet belt drive operation
3. FWD/REV toggle switch
4. Headstock runs in precision-bearings
5. Speeds allow selection of optimum speeds at the work piece
6. Cast iron plastic handle, easy to operate
7. Humanized design, electromagnetic switch is available.
8. High precision.
Specification
|
Model
|
SP5225A
|
|
Drilling capacity
|
Ø25mm(1")
|
|
Motor power
|
750/900W
|
|
Chuck Capacity
|
5-20mm
|
|
Spindle stroke
|
85mm
|
|
Class Of Speed
|
12
|
|
Speed 50/60Hz
|
280~2380/340~2860 R.P.M
|
|
Spindle taper
|
MT3
|
|
Auto-feeding step of worktable
|
180mm
|
|
Max.distance from spindle end to surface of table
|
685mm
|
|
Max.distance from spindle end to surface of base
|
1175mm
|
|
Swing
|
360mm
|
|
Table size
|
290X290mm
|
|
Base Size
|
460X270mm
|
|
Column Diameter
|
Ø72mm
|
|
Height
|
1600mm
|
|
N.W./G.W.
|
71/75kg
|
|
Packing size
|
1140X500X300mm
|
