Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-5000K
-
Product Weight（kg）:
-
0.6
-
Input Voltage(V):
-
AC10-277V
-
Lamp Luminous Flux(lm):
-
750
-
Model Number:
-
DA-RL4W9(Wall Swith)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DANS
-
Item Type:
-
Downlights
-
Product Name:
-

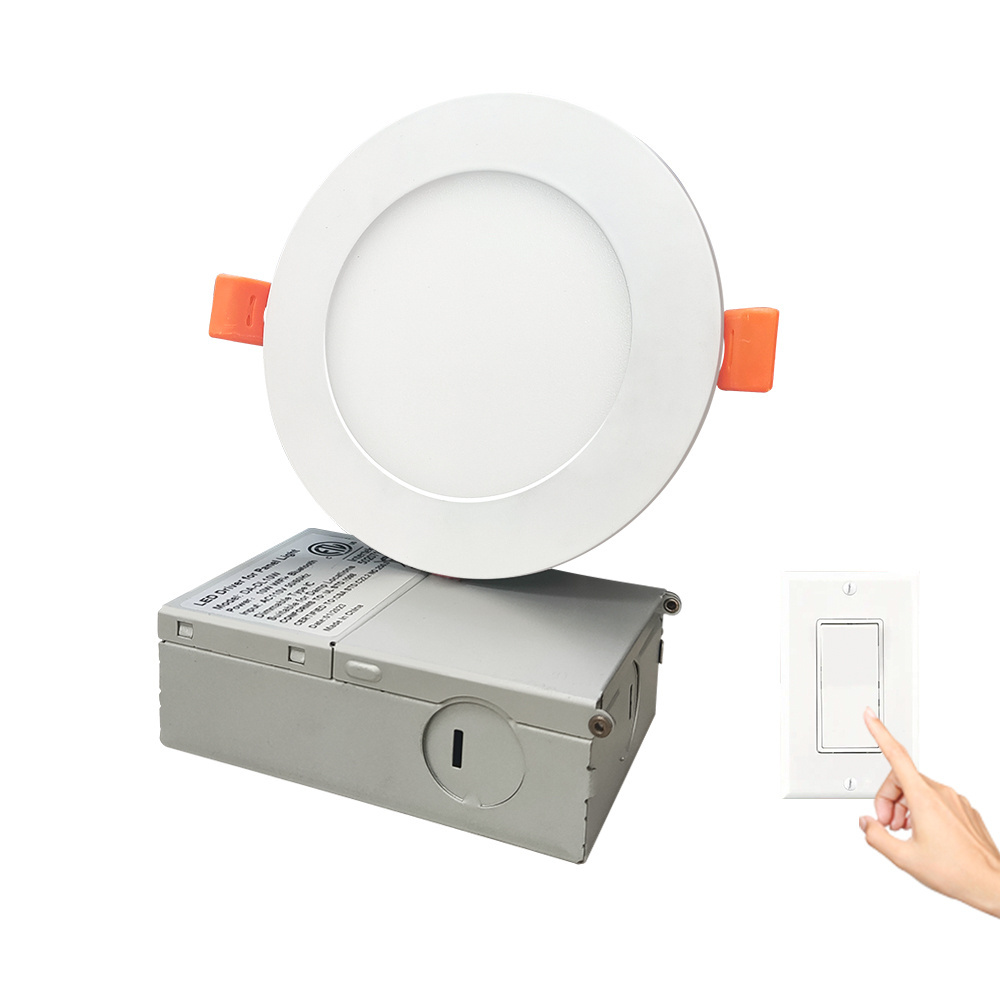

4 inch recessed downlight intertek led slim pot lights
-
Beam Angle:
-
120
-
LED Quantity:
-
40pcs smd 2835
-
Color temperature(CCT):
-
3000-5000K
-
Dimension:
-
D120x12mm
-
Driver:
-
Junction box driver
-
Item:
-
ETL(5004879) listed 4'' ultra thin led down light
-
Certificate:
-
energy star ,ETL,SAA
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Lamp Body Material:
-
Aluminum Alloy
-
Install Style:
-
Embeded
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000-5000K
-
Product Weight（kg）:
-
0.6
-
Input Voltage(V):
-
AC10-277V
-
Lamp Luminous Flux(lm):
-
750
-
Model Number:
-
DA-RL4W9(Wall Swith)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DANS
-
Item Type:
-
Downlights
-
Product Name:
-
4 inch recessed downlight intertek led slim pot lights
-
Beam Angle:
-
120
-
LED Quantity:
-
40pcs smd 2835
-
Color temperature(CCT):
-
3000-5000K
-
Dimension:
-
D120x12mm
-
Driver:
-
Junction box driver
-
Item:
-
ETL(5004879) listed 4'' ultra thin led down light
-
Certificate:
-
energy star ,ETL,SAA
4 inch can lights 4 inch recessed downlight intertek led slim pot lights
| Specs. | 3w | 7w | 9w | 12w | |
| 1. | Item: | ultra thin led down light with driver in a box | ultra thin led down light with driver in a box | ultra thin led down light with driver in a box | ultra thin led down light with driver in a box |
| 2. | Model No.: | DA-DL-C2-3X1W | DA-RL3W7 | DA-RL4W9 | DARL6W12 |
| 3. | Input Volt: | AC85-265V,347V | AC85-265V,347V | AC85-265V,347V | AC85-265V,347V |
| 4. | LED brand: | Epistar | Epistar | Epistar | Epistar |
| 5. | LED qty: | 3pcs | 7pcs | 40pcs SMD2835 | 60 pcs SMD2835 |
| 6. | Driver | constant current driver | constant current driver | constant current driver | constant current driver |
| 7. | Power Factor: | >0.95 | >0.95 | >0.95 | >0.95 |
| 8. | CRI: | >80 | >80 | >80 | >80 |
| 9. | CCT: | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| 10. | Efficiency : | 90lm/w | 80lm/w | 80lm/w | 80lm/w |
| 11. | Lumens : | 270lm |
560lm |
720lm | 1020lm |
| 12. | Dimension : | D90X50mm | D110x68mm | D150X12m | D170X12mm |
| 13. | Cut size : | D70mm | D90mm | 4'' | 6'' |
| 14. | IP level: | IP44 | IP44 | IP44 | IP44 |
| 15. | Lifespan: | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| 16. | Warranty: | 5 years | 5 years | 5 years | 5 years |
| 17. | A ngle: | 30,45,60,9 0° | 30,45,60,9 0° | 30,45,60,9 0° | 30,45,60,9 0° |
| 18. | Certificates: | CE,ROHS,SAA,ETL | CE,ROHS,ETL,energy star | CE,ROHS,ETL,energy star | CE,ROHS,ETL,energy star |
| 19. | Material: | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| 20. | Working temp: | -20 ° to +45 ° | -20 ° to +45 ° | -20 ° to +45 ° | -20 ° to +45 ° |
Quality Control
1).3'' 4'' 6'' ultra thin led down light with junction box driver efficiency: 80-90lm LED chip.
2).3'' 4'' 6'' led down light with junciton box driver Efficiency >90 in reality.
3).3'' 4'' 6'' ultra thin led down light with junciton box driver CRI>82Ra,subject color is real and nice.
4).3'' 4'' 6'' ultra thin led down light with junction box Heat Dissipation,housing temperature about 30-50 degree.
5).3'' 4'' 6'' led down light with junction box Beam Angle 120 degree available,up to your application.
6).aluminum alloy quality,Anti-UV,Anti-corrosion dealing etc.;Driver detailed & long time test.
7).36h aging test to confirm all landscape lamps quality is great.
8).following schedule for quality and lead time.Every order's progress is shown to all relative perons in software and board Every Day.
9).files for item No.,quantity,color temperature,voltage,label,packing etc.All with signature of responsible persons.
10).All 3'' 4'' 6'' led down light with junction box driver managed by software
3'' 4'' 6'' ultra thin led down light with driver in a box Aging test: 48 h aging test to confirm all quality is great .
3'' 4'' 6'' ultra thin led down light with driver in a box application:
for 3'' 4'' 6'' ultra thin led down light with driver in a box
