Quick Details
-
Voltage:
-
12V/24V
-
Power:
-
25W
-
Protection Class:
-
IP56
-
Lamp Holder:
-
BAY15d
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bozhou (Mingbo)
-
Product Name:
-

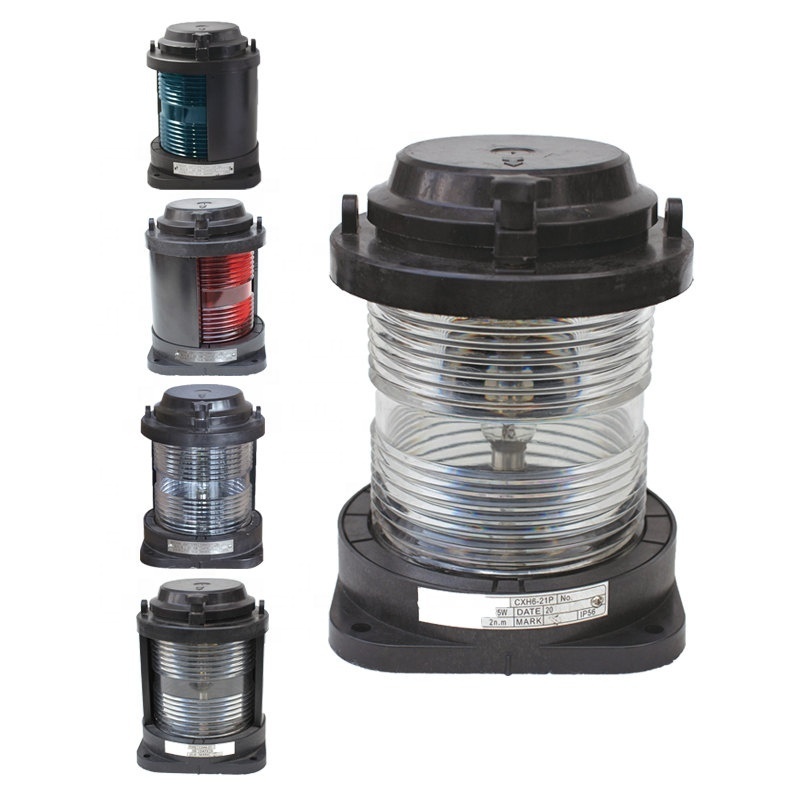

Marine Navigation Signal Light
-
Voltage:
-
12V/24V
-
Power:
-
25W
-
Protection Class:
-
IP56
-
Lamp Holder:
-
BAY15d
Products Description
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopts the good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the harsh environment.
3. The signal lights choose the special signal bulb which conform to the ship crterion, it can replace bulb as open the up cover.
4. The signal lights can work normally under the temperature -30℃ ~55℃.
Adopt standard
1. Conform to《THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972》and《GRADE ENTRY NORMS FOR STEEL SHIPS》.
2. Conform to the international standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.
|
Name
|
Model
|
Visible distance
|
Level arc
|
Lamp holder
|
Bulb
|
Portection class
|
Color
|
|
Starboard light
|
CXH1-2P
|
2n.m
|
112.5.
|
BAY15d
|
12V/25W 24V/25W
|
IP56
|
Green
|
|
Port light
|
CXH2-2P
|
2n.m
|
112.5.
|
|
|
|
Red
|
|
Masthead light
|
CXH3-2P
|
5n.m
|
225.
|
|
|
|
Transparent
|
|
Stern light
|
CXH4-2P
|
2n.m
|
135.
|
|
|
|
Transparent Yellow
|
|
All-round light
|
CXH6-2P
|
2n.m
|
360.
|
|
|
|
Red/Green/
Transparent
|
