Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2750*1150*2050mm
-
Machine Weight:
-
1500 kg
-
Bucket capacity:
-
0.3m³, 0.3cbm
-
Product name:
-
Mini loader
-
Keyword:
-
Front Loader Tractor
-
Bucket width:
-
1.3m
-
Engine type:
-
Perkins403J-11/KUBOTAD1105
-
Engine power:
-
18.4KW/24.8BHP
-
Wheelbase:
-
1340mm
-
Tire:
-
27*8.5-15TL/26*12-12
-
Min turning radius:
-
1469mm
-
After Warranty Service:
-
Online Support Video Technical Support
Quick Details
-
Engine Brand:
-
Perkins
-
Power:
-
18.4KW
-
Brand Name:
-
GOCHA
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2750*1150*2050mm
-
Machine Weight:
-
1500 kg
-
Bucket capacity:
-
0.3m³, 0.3cbm
-
Product name:
-
Mini loader
-
Keyword:
-
Front Loader Tractor
-
Bucket width:
-
1.3m
-
Engine type:
-
Perkins403J-11/KUBOTAD1105
-
Engine power:
-
18.4KW/24.8BHP
-
Wheelbase:
-
1340mm
-
Tire:
-
27*8.5-15TL/26*12-12
-
Min turning radius:
-
1469mm
-
After Warranty Service:
-
Online Support Video Technical Support
Products Description
GA-
Perkins/906

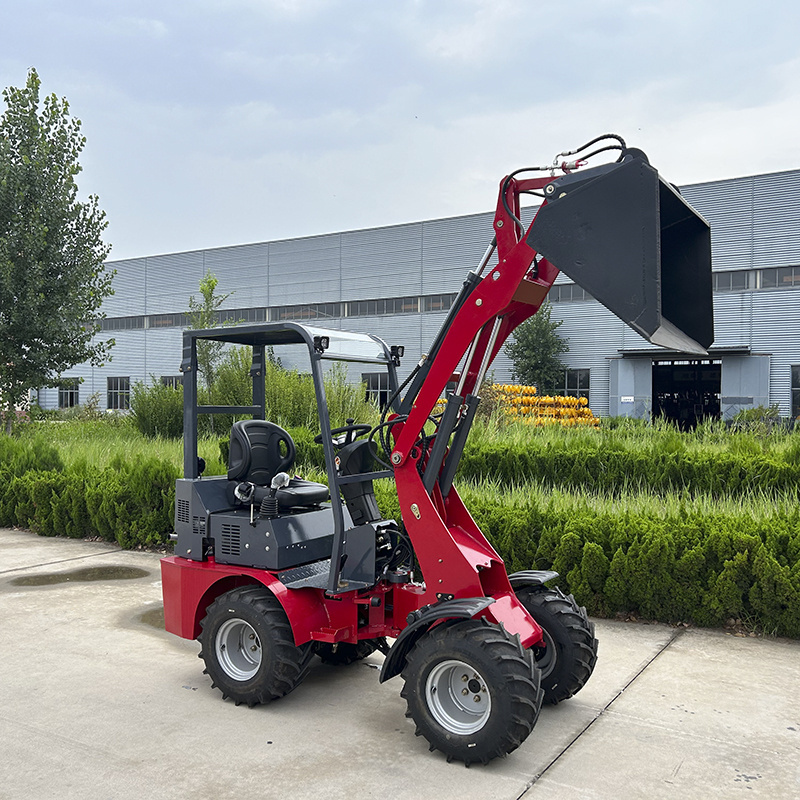

Mini Wheel Loader
1. Adopting Perkins 18.4kw power to achieve Euro 5 emissions, energy-saving and environmentally friendly.
2. Closed hydrostatic walking system, low energy consumption, energy-saving.
3. Easy to operate quick change structure to meet the needs of multi-purpose work.
4. Integrated multifunctional joystick, easy and easy to operate.
5. LED segmented display of fuel monitor, intuitive, concise and elegant.
6. Unique articulated frame design, compact and durable.
7. Suitable for a wide range of wide tires and shock absorbing seats, safe and comfortable.
8. The operation radius is small and flexible.
|
Model
|
GA-Perkins/910
|
GA-936
|
GA-946
|
|
Total weight(kg)
|
1500
|
3100
|
3300
|
|
Lifting height(mm)
|
2400
|
3200
|
3500
|
|
Bucket width(mm)
|
1300
|
1800
|
1800
|
|
L*W*H(mm)
|
3150*1300*1500
|
5300*1900*2700
|
5900*2150*2750
|
|
Power(KW)
|
18.4
|
42
|
78
|
|
Wheelbase(mm)
|
1100
|
2350
|
2350
|
Details Images
|
Model
|
Model
|
GA-920
|
GA-932
|
GA-942
|
|
|
size
|
L*W*H(mm)
|
3150*1300*1500
|
5700*1930*2750
|
5900*2050*2850
|
|
|
|
Wheelbase(mm)
|
2050
|
2180
|
2340
|
|
|
|
Track width（mm）
|
1280
|
1510
|
1550
|
|
|
|
Lifting height(mm)
|
2400
|
3200
|
3560
|
|
|
|
Unloading distance（mm）
|
730
|
850
|
900
|
|
|
|
Min.ground clearance（mm）
|
250
|
230
|
310
|
|
|
|
Turning radius(mm)
|
2900
|
3400
|
3400
|
|
|
|
Bucket width(mm)
|
1300
|
1900
|
1800
|
|
|
|
Bucket capacity（m³）
|
0.5
|
0.6
|
1
|
|
|
|
Rated load（KG）
|
800
|
1000
|
1800
|
|
|
|
Total weight(KG)
|
2200
|
3200
|
4400
|
|
|
|
Lifting center cylinder(mm)
|
inner 35,outer 73
|
inner 50,outer 100
|
inner 60,outer 110
|
|
|
|
Lifting side cylinder(mm)
|
inner 35,outer 73
|
inner 45,outer 90
|
inner 50,outer 102
|
|
|
|
Tire
|
1000-6
|
20.5/70-16
|
16/70-20
|
|
|
|
Brand/Model
|
Huadong 490
|
Yunnei 490
|
Yunnei 4102
|
|
|
|
Rated power(KW)
|
40
|
58
|
76
|
|
|
|
Rated speed（r/min）
|
2400
|
2400
|
2400
|
|
|
|
Form
|
Four-stroke
|
Four-stroke
|
Four-stroke
|
|
|
|
Weight(KG)
|
230
|
|
360
|
|
|
|
Torque converter size
|
265 type integrated
|
265 type integrated
|
265 type integrated
|
|
|
|
Torque converter form
|
hydraulic transmission
|
hydraulic transmission
|
hydraulic transmission
|
|
|
|
Transmission form
|
hydraulic shift
|
hydraulic shift
|
hydraulic shift
|
|
|
|
Gear position
|
two forward,two backword
|
two forward,two backword
|
two forward,two backword，Double high and low speed
|
|
|
|
Fuel tank capacity(L)
|
28
|
50
|
85
|
|
|
|
Fuel size(mm)
|
380*170*450
|
|
420*300*750
|
|
|
|
Standard bridge
|
narrow wheel
|
Cast steel wheel side bridge
|
Middle wheel side cast steel bridge
|
|
|
|
Standard form
|
gear pump
|
gear pump
|
single lever operation
|
|
|
|
Lifting time(S)
|
4
|
7
|
7
|
|
|
|
Falling time(S)
|
3
|
6
|
6
|
|
|
|
Vehicle braking
|
air brake
|
air brake
|
air brake
|
|
|
|
Parking braking
|
mechanical handbrake
|
mechanical handbrake
|
mechanical handbrake
|
|
|
|
Main gear pump
|
CBF-32
|
CBF-40
|
CB-2063
|
|
|
|
Traveling pump
|
316
|
CNB-F316
|
CBF200
|
|
|
|
steering gear
|
160
|
250
|
NBF-200
|
|
|
|
Dispenser
|
16F
|
18F
|
20A
|
|
|
|
Walking speed（KM/H）
|
30
|
40
|
35
|
|
|
|
Boom thickness(mm)
|
16
|
25
|
30
|
|
Optional Attachment
8 tons of wheel loaders can be equipped with the above tools:
with rock bucket/ with big bucket / with wood grab/ with tube grab / with pallet fork /with fork/ with snow plough / with side-dump bucket /with quick hitch /with lift/with high dump bucket/with long boom/with wood grapple/
with rock bucket/ with big bucket / with wood grab/ with tube grab / with pallet fork /with fork/ with snow plough / with side-dump bucket /with quick hitch /with lift/with high dump bucket/with long boom/with wood grapple/
