Quick Details
-
Overall Dimensions:
-
1550*780*1580mm
-
Weight (KG):
-
700 kg
-
Loading Capacity:
-
500kg
-
Brand:
-
JICHUAN
-
Fork Size:
-
750*40mm
-
Lifting height:
-
2100mm
-
Load center distance:
-
300mm
-
Net Weight:
-
700kg
-
Storage Battery Voltage/Capacity:
-
48V45AH
-
Min.height off the ground F:
-
120mm
-
Min.outside turning radius WA:
-
950
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
China
-
Fork Length:
-
750mm
-
Overall Dimensions:
-
1550*780*1580mm
-
Weight (KG):
-
700 kg
-
Loading Capacity:
-
500kg
-
Brand:
-
JICHUAN
-
Fork Size:
-
750*40mm
-
Lifting height:
-
2100mm
-
Load center distance:
-
300mm
-
Net Weight:
-
700kg
-
Storage Battery Voltage/Capacity:
-
48V45AH
-
Min.height off the ground F:
-
120mm
-
Min.outside turning radius WA:
-
950
Product Description

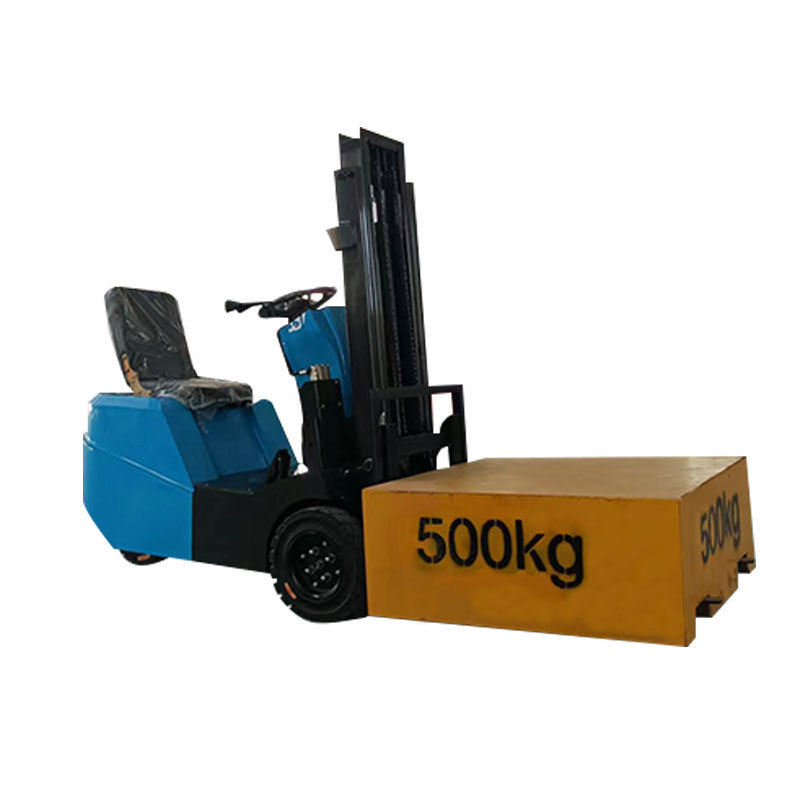

Electric Forklift
Forklift is a transportation vehicle, used for loading and unloading, short distance transport, heavy lifting, is called industrial. Vehicle by the international organization for Standardization ISO/TC110, used as transport machine, widely used in national economic departments, for example: the railway station, port, airport, factory, warehouse, etc., is efficient equipment mechanical for loading and unloading, stacking and short distance transport.
Specification
|
item
|
unit
|
value
|
|
Loading Capacity
|
kg
|
500
|
|
Load center distance
|
mm
|
300
|
|
Max.lifting height H
|
mm
|
2100
|
|
Min.outside turning radius WA
|
mm
|
950
|
|
Standard fork length
|
mm
|
750
|
|
Fork thickness
|
mm
|
40
|
|
Min.height off the ground F
|
mm
|
120
|
|
Front tire model and material
|
Solid rubber
|
400*100
|
|
Rear tire model and material
|
Solid rubber
|
300*100
|
|
storage battery
|
voltage/V
|
48
|
|
Net Weight
|
kg
|
700
|
|
Warranty
|
|
2
|
