Quick Details
-
Material:
-
HT150 200 QT450-10 500-7
-
Product name:
-

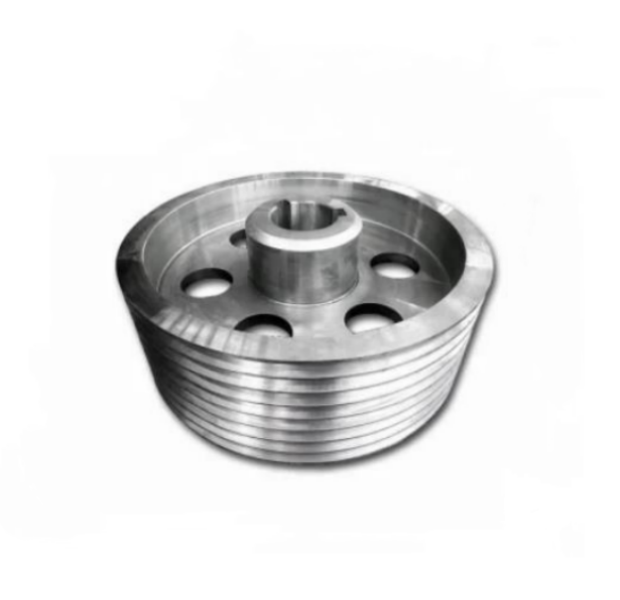

casting iron sand casting construction machine spare parts
-
Process:
-
Casting +Machining(if Need)+surface Treatment
-
Surface treatment:
-
Painting or Powder Coating or Antirust oil
-
Lead Time:
-
45-50 Days
-
Standard:
-
GB ASTM AISI DIN BS
-
Payment Terms:
-
T/T 30% Deposit Advanced
-
Certifications:
-
ISO 9001:2008,TUV16949,PED
-
Unit weight:
-
14.04kgs
Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SIMIS
-
Model Number:
-
Customized
-
Material:
-
HT150 200 QT450-10 500-7
-
Product name:
-
casting iron sand casting construction machine spare parts
-
Process:
-
Casting +Machining(if Need)+surface Treatment
-
Surface treatment:
-
Painting or Powder Coating or Antirust oil
-
Lead Time:
-
45-50 Days
-
Standard:
-
GB ASTM AISI DIN BS
-
Payment Terms:
-
T/T 30% Deposit Advanced
-
Certifications:
-
ISO 9001:2008,TUV16949,PED
-
Unit weight:
-
14.04kgs
Product Description
Product Description
|
Material
|
Carbon steel, alloy steel, stainless steel,Aluminum alloy, Copper, ect.
|
|
Process
|
Resin sand casting / shell mold casting + cnc machining
|
|
Casting dimension tolerance
|
CT9 - CT12
|
|
Casting surface roughness
|
Ra 12.5 um
|
|
Casting weight range
|
0.1-300 kg
|
|
Casting Size
|
Max linear size: 1200 mm, Max diameter size: 600 mm
|
|
Machining Precision
|
Positioning accuracy 0.008 mm, Rep. position. accuracy 0.006 mm
|
|
Machining surface roughness
|
Ra0.8 ~ 6.3 um
|
|
Max Travel Of Spindle
|
1900 mm x 850 mm x 700 mm
|
|
Max Turning Diameter
|
830 mm
|
|
Material standard
|
GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR
|
|
Surface treatment
|
KTL (E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, b-lack oxide, Painting, Hot galvanizing,Powder coating, Nickel plating.
|
|
Service available
|
OEM & ODM
|
|
Quality control
|
0 defects,100% inspection before packing
|
|
Application
|
Train & railway, automobile& truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery,
construction, valve and pumps, electric machine, hardware, power equipment and so on. |
|
Keywords
|
Sand casting, steel casting, iron casting, ductile iron casting, shell mold casting, resin sand casting, gray iron casting, cast iron casting
|
