Quick Details
-
Model Number:
-
DS-623
-
Max. Current:
-
5A
-
Mechanical Life:
-
50000 Cycles
-
Product Name:
-
Toggle Switch
-
Terminal:
-
Solder Terminal
-
Housing Color:
-
Red
-
Switch Type:
-
SPDT
-
Function:
-
Momentary
-
Number of Contact Terminals:
-
6
-
Material:
-
Metal, Plastic
-
Mounting Hole:
-
M6
-
Operating Temp:
-
-25°C to +85°C
-
Product type:
-
Spring Return Toggle Switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
DS-623
-
Max. Current:
-
5A
-
Mechanical Life:
-
50000 Cycles
-
Product Name:
-
Toggle Switch
-
Terminal:
-
Solder Terminal
-
Housing Color:
-
Red
-
Switch Type:
-
SPDT
-
Function:
-
Momentary
-
Number of Contact Terminals:
-
6
-
Material:
-
Metal, Plastic
-
Mounting Hole:
-
M6
-
Operating Temp:
-
-25°C to +85°C
-
Product type:
-
Spring Return Toggle Switch

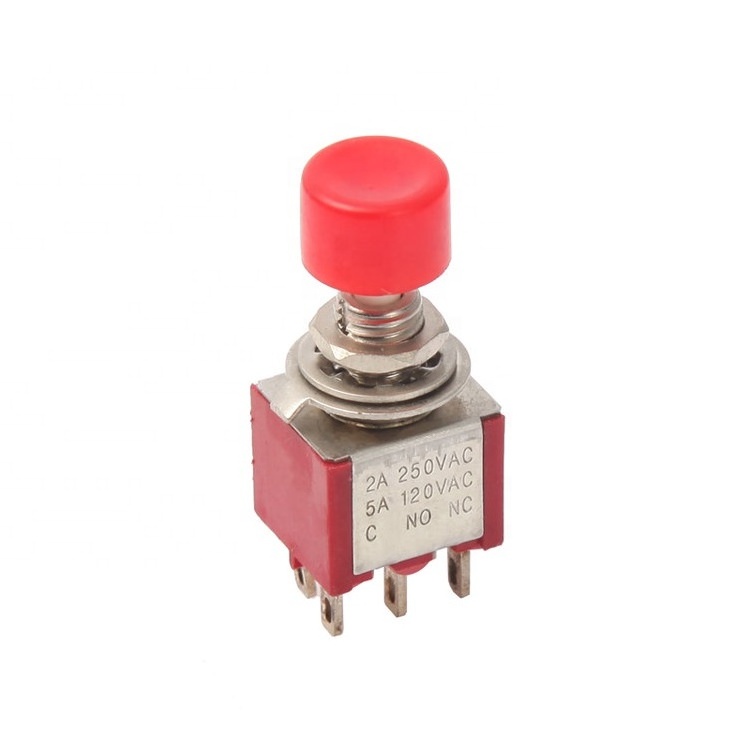

6mm Spring Loaded DPDT ON-(ON) 6 Pin Momentary Spring Return Toggle Switch For Machine
Number of Terminal: 6 ; Diameter of Screw: 6mm/ 0.24in
Switch Rating: 2A 250VAC; 5A 125VAC
Action Type: Momentary
ON-(ON)
Environmental protection, high temperature resistance
Material: plastic and metal
Button
Color: red
or
green, yellow, black
|
Product Name |
Toggle Switch |
|
Items |
DS-623 |
|
Mounting Hole |
M 6 |
|
Operation Type |
Momentary / Reset |
|
Rating |
5 A 125VAC; 2 A 250VAC |
|
Dielectric strength |
1000 V RMS (min) |
|
Mechanical life |
More than 50.000 cycles |
|
Electrical life |
More than 10,000 cycles |
|
Operating Temperature |
-25°C ~+80°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessory hardware |
Metal washer, Locking tooth washer & Mounting nut. |
|
QTY/Box |
100 pcs |
|
What You Get |
100 Pcs Toggle switch Red button , 6 Pins, Momentary |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
