Quick Details
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2635mmx1270mmx2220mm
-
Weight (KG):
-
2850 kg
-
Product Name:
-
Electric Reach Truck
-
Type:
-
Stand-on
-
Power type:
-
Lead acid / Lithium ion
-
Steering System:
-
Electric Power Steering
-
Color:
-
Yellow, Red, Orange, Blue
-
Controller:
-
USA Curtis/Italy Zapi controller
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Min. Lifting Height:
-
3000-12000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EQUIPMAX
-
Fork Length:
-
1070mm
-
Fork Width:
-
120mm
-
Overall Dimensions:
-
2635mmx1270mmx2220mm
-
Weight (KG):
-
2850 kg
-
Product Name:
-
Electric Reach Truck
-
Type:
-
Stand-on
-
Power type:
-
Lead acid / Lithium ion
-
Steering System:
-
Electric Power Steering
-
Color:
-
Yellow, Red, Orange, Blue
-
Controller:
-
USA Curtis/Italy Zapi controller
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
CE
-
Marketing Type:
-
Hot Product 2021
Product Description

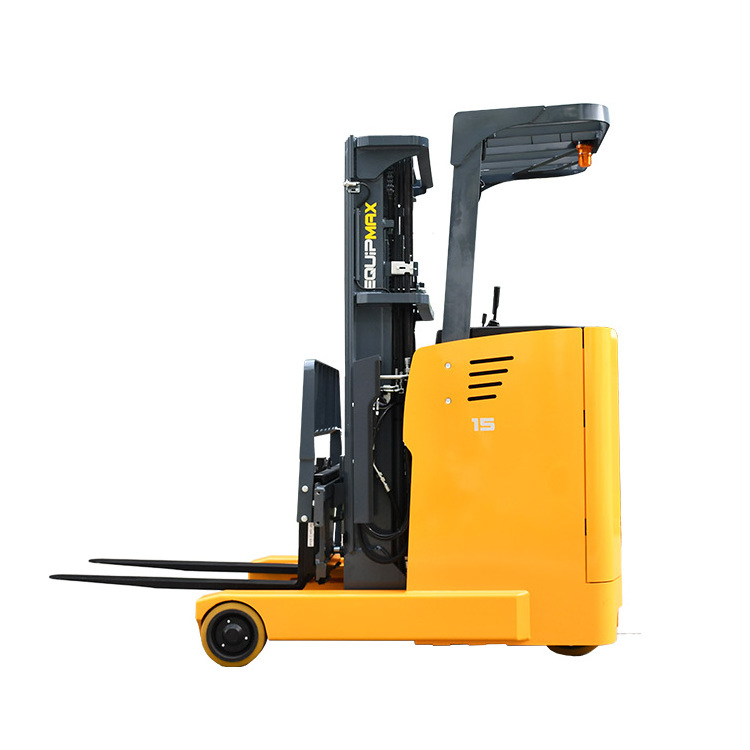

EQUIPMAX FBR10-30 series stand-on type electric reach truck adopts the latest ergonomics technologies and concepts in designing and manufacturing. It is with low cost of ownership, superior visibility, unmatched productivity, safety and ergonomics designing for operator. The reach truck can be widely used in various kinds of indoor working condition like warehouse, market store, logistic center, express distribution warehouse, etc.
| 1 | Brand | EQUIPMAX | EQUIPMAX | |
| 2 | Model | FBR15 (Duplex) | FBR15 (Triplex) | |
| 3 | Power type | Battery | Battery | |
| 4 | Operation type | Stand on | Stand on | |
| 5 | Rated capacity | Q(kg) | 1500 | 1500 |
| 6 | Load center | C(mm) | 500 | 500 |
| 7 | Service weight(incl. battery) | kg | 2450 | 2850 |
| 8 | Fork tilt | α/β(°) | 3/5 | 3/5 |
| 9 | Lift height | h3(mm) | 3000 | 4500 |
| 10 | Mast extended height with load-backrest | h4(mm) | 3960 | 5460 |
| 11 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 12 | Overall length | l1(mm) | 2258 | 2283 |
| 13 | Overall width | b1/b2(mm) | 1090 | 1090/1170 |
| 14 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/35 |
| 15 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2663 | 2681 |
| 16 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2714 | 2737 |
| 17 | Turning radius | Wa(mm) | 1594 | 1594 |
| 18 | Driving speed(load/unload) | km/h | 9/10 | 9/10 |
| 19 | Lifting speed(load/unload) | mm/s | 240/400 | 200/350 [ 4 ] |
| 20 | Lowering speed(load/unload) | mm/s | 300/270 | 320/280 [ 4 ] |
| 21 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 22 | Brake type | Mechanical | Mechanical | |
| 23 | Driving Motor(S2-60min) | kw | 4.5 | 4.5 |
| 24 | Lifting Motor(S3-15%) | kw | 7.5 | 7.5 |
| 25 | Battery voltage/capacity | V/Ah | 48/300 | 48/300 |
| 26 | Battery weight | kg | 500 | 500 |
| 27 | Steering system | EPS | EPS | |
| 28 | Battery replacement type | Side pull | Side pull |
