Quick Details
-
Dimension(L*W*H):
-
820*750*600mm
-
Weight:
-
65 KG
-
Product name:
-

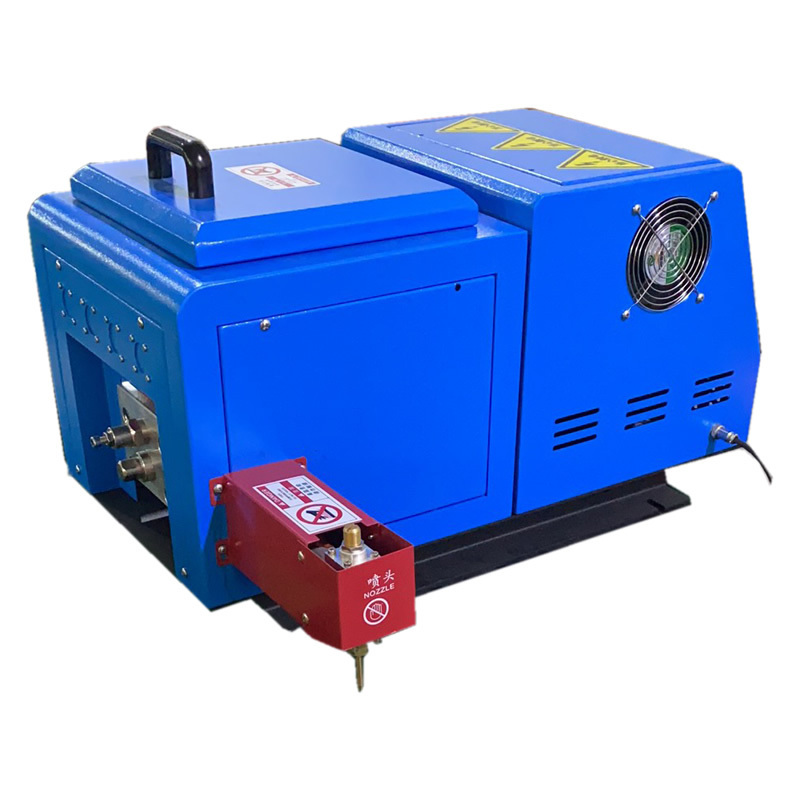

Gear Pump Hot Melt Glue Applicator
-
Usage:
-
dot/strip/spray
-
Control:
-
TOUCH SCREEN/KNOB
-
Pump Type:
-
Gear Pump
-
Maximum operating temperature:
-
250℃
-
Melting rate:
-
10KG/HOUR
-
MAX CPS:
-
30000CPS
-
Tank Capacity:
-
5L
-
Power:
-
2.8KW
-
Marketing Type:
-
Fixed glue gun
Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Dimension(L*W*H):
-
820*750*600mm
-
Weight:
-
65 KG
-
Product name:
-
Gear Pump Hot Melt Glue Applicator
-
Usage:
-
dot/strip/spray
-
Control:
-
TOUCH SCREEN/KNOB
-
Pump Type:
-
Gear Pump
-
Maximum operating temperature:
-
250℃
-
Melting rate:
-
10KG/HOUR
-
MAX CPS:
-
30000CPS
-
Tank Capacity:
-
5L
-
Power:
-
2.8KW
-
Marketing Type:
-
Fixed glue gun
1. The new type of guiding backflow device (safety valve) regulate s pressure and flow more accurately and stably.
2. Frame structure, easy installation, and maintenance.
3. Double-layer permeable Teflon anti-carbonization coating in the melting cylinder; progressive fin heating the bottom layer to improve glue melting efficiency.
4. Double-layer filtration of fuselage flow passage can effectively prevent iron filings and sundries from entering the rubber passage and prevent the flow pump from getting stuck and damaged.
5. Precision metering pump ensures stability and continuity of glue output.
6 . intelligent PID constant temperature, timing automatic switch machine preheating, one-key heat preservation, glue level trough with glue to remind.
7. USA imported heating bars and K type universal thermocouple, quantitative glue, automatic glue spray compensation of encoder glue amount.
Main Specifications
|
Product Name
|
5L hot melt gluing machine
|
|
Voltage |
22 0V |
|
Frequency |
50H Z |
|
Power |
2.8 KW |
|
Tank Capacity |
5 L |
|
Melt ing rate |
10kg/hour
|
|
MAX CPS |
30 000CPS |
|
Pump |
Gear pump |
|
Machine dimensions |
78 0* 360 * 46 0 mm |
