Quick Details
-
Weight (KG):
-
2000
-
Application:
-
Polishing
-
Product name:
-

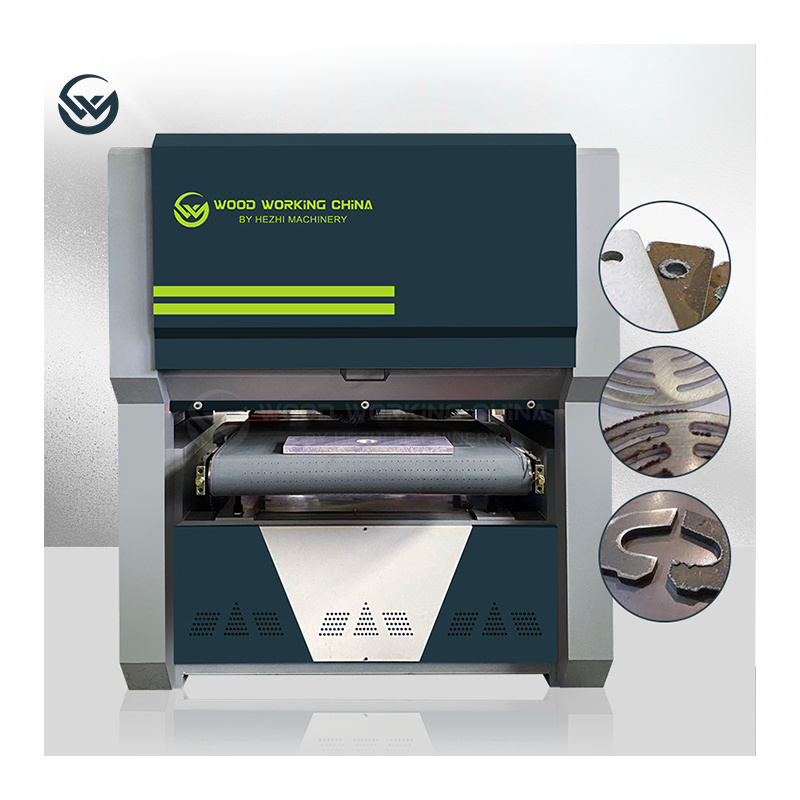

Automatic Metal Polishing Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Workpieces Surface Deburring Polishing
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hezhi
-
Power (kW):
-
22
-
Weight (KG):
-
2000
-
Application:
-
Polishing
-
Product name:
-
Automatic Metal Polishing Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Workpieces Surface Deburring Polishing
Products Description
|
Model
|
HZ-R-R400
|
HZ-R-R600
|
HZ-R-R1000
|
HZ-R-R1300
|
HZ-R-R1600
|
||||
|
Width
|
400mm
|
600mm
|
1000mm
|
1300mm
|
1600mm
|
||||
|
Thickness
|
0.5-100mm
|
0.5-100mm
|
0.5-100mm
|
0.5-100mm
|
0.5-100mm
|
||||
|
Speed
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
||||
|
Diameter
|
140mm
|
160mm
|
190mm
|
210mm
|
240mm
|
||||
|
Motor
|
12.47kw
|
16.87kw
|
23.87kw
|
48.37kw
|
49kw
|
||||
|
Pressure
|
≥0.55Mpa
|
≥0.55Mpa
|
≥0.55Mpa
|
≥0.55Mpa
|
≥0.55Mpa
|
||||
|
Dimension
|
1400x900x1600mm
|
1700x1150x2000mm
|
2000x1600x2100mm
|
2350x2450x2100mm
|
3000x2100x2100mm
|
||||
|
Weight
|
900kg
|
1200kg
|
1800kg
|
1800kg
|
4000kg
|
||||
|
Default voltage
|
3 phase 380v 50hz
|
|
|
|
|
||||
|
Sand frame
|
Sanding belt and wheels can be customized
|
|
|
|
|
||||
features：
* The economical model meets the sanding requirements of general customers and has simple structure. Low failure rate and high cost performance.
* The equipment can realize one-time processing, one-sided and all-round removal of metal plate rust or slag burr formed by laser cutting, shearing blanking, plasma cutting, flame cutting,stamping blanking, machining, aluminum plate, elc. It is suitable for pre grinding of metal platesurface, deburring of holes and edges, surface wire drawing and other processingprocesses,saving the trouble oflow efficiency, flying dust and different grinding of workpieces.
