- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
demma
-
Model Number:
-
AC Series, DC Series, EC Series
-
Voltage:
-
DC:12/24/48/110V AC:85-380V EC:110/230V
-
Product name:
-

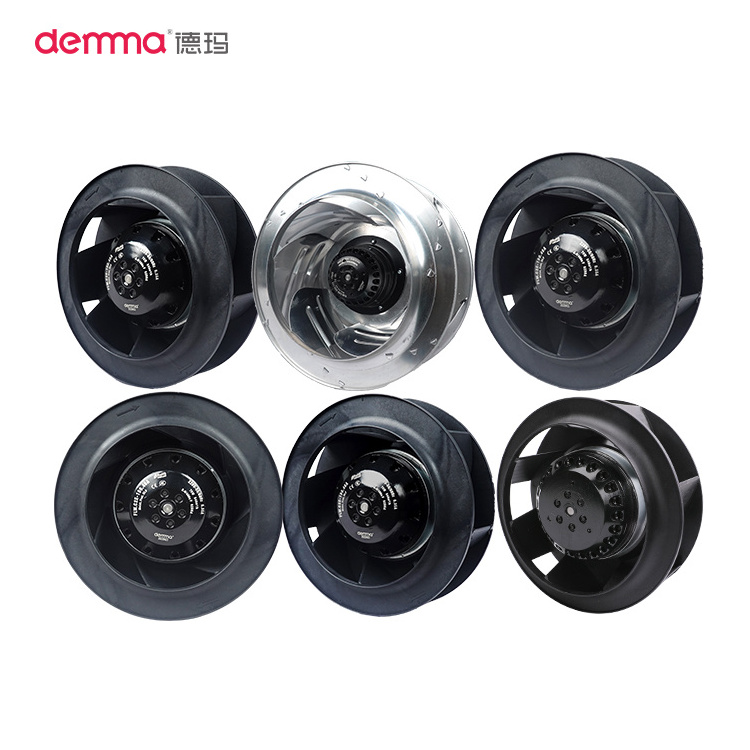

Centrifugal Exhaust Fan
-
Blade material:
-
Propylene with glass fiber reinforced
-
Power Input:
-
DC:12/24/48/110V AC:85-380V EC:110/230V
-
Direction:
-
Clockwise see from rotor
-
Bearing:
-
Ball Bearing-50000Hours
-
Application:
-
Ventilation ,Cooling system
-
Amb,Temp:
-
-25 to +60℃
-
Insulation:
-
B/F
-
Protection Class:
-
IP 54
-
Certification:
-
CE/RoHS/ISO9001/CCC
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other
-
Electric Current Type:
-
EC
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
demma
-
Model Number:
-
AC Series, DC Series, EC Series
-
Voltage:
-
DC:12/24/48/110V AC:85-380V EC:110/230V
-
Product name:
-
Centrifugal Exhaust Fan
-
Blade material:
-
Propylene with glass fiber reinforced
-
Power Input:
-
DC:12/24/48/110V AC:85-380V EC:110/230V
-
Direction:
-
Clockwise see from rotor
-
Bearing:
-
Ball Bearing-50000Hours
-
Application:
-
Ventilation ,Cooling system
-
Amb,Temp:
-
-25 to +60℃
-
Insulation:
-
B/F
-
Protection Class:
-
IP 54
-
Certification:
-
CE/RoHS/ISO9001/CCC
Products Description
|
General characters
|
|
|
|
Motor structure
|
external rotor asynchronous motor;
|
|
|
Impeller
|
Black PA nylon injection mold ing;
|
|
|
Storage temperature
|
AC:﹣25℃ - ﹢80℃
|
|
|
|
DC:﹣40℃ - ﹢56"℃
|
|
|
|
EC:﹣25°℃ ~ ﹢60°℃
|
|
|
Altitude
|
≤ 2500m;
|
|
|
Relative temperature
|
€ 90% RH (25*℃);
|
|
|
Protection grade
|
AC: IP44
|
|
|
|
DC: IP42
|
|
|
|
EC: IP54
|
|
|
Insulation class
|
Class B, class F;
|
|
|
EC Rotation direction
|
Counterclockwisefrom the lead
|
|
|
EC Electrical characteristics
|
Speed regulation input 1~10VDC/PWM, speed and signal output
|
|
|
EC Protection
|
Stall protection, current limiting protection, soft start
|
|
|
Product features
|
compact structure, low noise, fast heat dissipation, long service life;
|
|
|
Applicable accessories
|
protective cover, airinlet guide ring, capacitor,junction box;
|
|
|
Usage
|
it is generally used in places where ventilation and heat dissipation are needed,such as electrical control cabinet, machine
tool,EPS, UPS, medical equipment, oven, etc. |
|
