This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce PET bottled juice and other non-gas beverage. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
water, 0.2ml
-
Voltage:
-
30
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Faygo
-
Dimension(L*W*H):
-
4.2*1.5*2.4
-
Weight:
-
800 KG
-
Motor brand:
-
Siemens
-
Contactor:
-
Siemens
-
Heater material:
-
Foundry Aluminum
-
Raw material:
-
stainless steel
-
Product name:
-
csd carbonated beverage drink cola soda filling machine price
-
Capacity:
-
3000-20000BPH
-
Function:
-
bottle filling
Quick Details
-
Machinery Capacity:
-
12000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
water, 0.2ml
-
Voltage:
-
30
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Faygo
-
Dimension(L*W*H):
-
4.2*1.5*2.4
-
Weight:
-
800 KG
-
Motor brand:
-
Siemens
-
Contactor:
-
Siemens
-
Heater material:
-
Foundry Aluminum
-
Raw material:
-
stainless steel
-
Product name:
-
csd carbonated beverage drink cola soda filling machine price
-
Capacity:
-
3000-20000BPH
-
Function:
-
bottle filling
Product Description
Specification
|
Model
|
16-16-5
|
24-24-6
|
32-32-8
|
40-40-10
|
50-50-12
|
60-60-15
|
72-72-18
|
|
Capacity
|
8000BPH
|
12000BPH
|
15000BPH
|
18000BPH
|
20000BPH
|
25000BPH
|
32000BPH
|
|
Washing heads
|
16
|
24
|
32
|
40
|
50
|
60
|
72
|
|
Filling heads
|
16
|
24
|
32
|
40
|
50
|
60
|
72
|
|
Capping heads
|
5
|
6
|
8
|
10
|
12
|
15
|
18
|
|
Suitable bottle
|
PET
|
PET
|
PET
|
PET
|
PET
|
PET
|
PET
|
|
Diameter of bottle(mm)
|
50-110
|
50-110
|
50-110
|
50-110
|
50-110
|
50-110
|
50-110
|
|
Height of bottle(mm)
|
150-310
|
150-310
|
150-310
|
150-310
|
150-310
|
150-310
|
150-310
|
|
Suitable cap
|
screw cap
|
screw cap
|
screw cap
|
screw cap
|
screw cap
|
screw cap
|
screw cap
|
|
Weight
|
4000KG
|
4500KG
|
6000KG
|
7800KG
|
9000KG
|
10000KG
|
12000KG
|
|
Main motor power
|
3Kw
|
3Kw
|
3Kw
|
5.5Kw
|
7.5Kw
|
7.5Kw
|
7.5Kw
|
Product Details

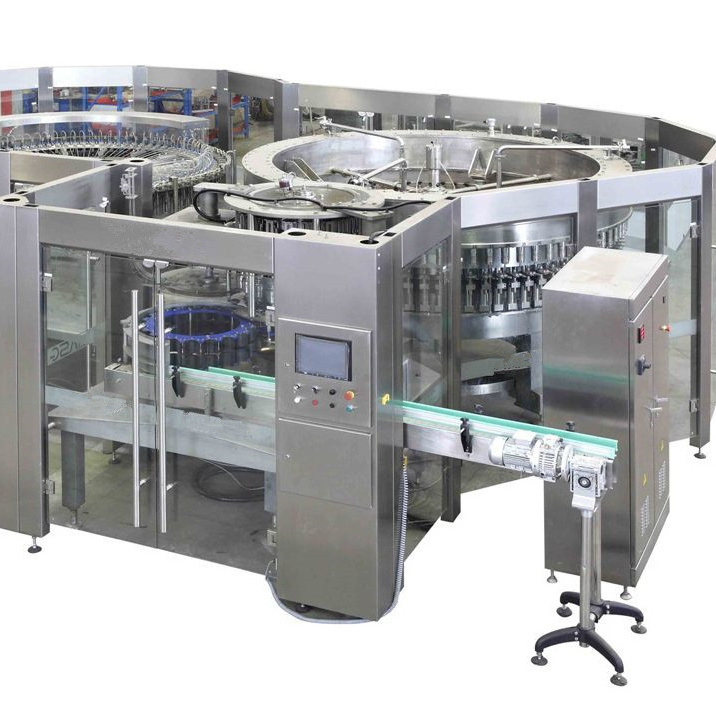

Three in one washing filling capping machine
The equipment includes bottle rinser,filling machine, capping machine,rack, sealing,window main motor,drive system,transmission system of bottles,cap sorting device,and electric control system and more.
Washing system
The dumping gear of the bottle rinsing machine consists of water driver, bottle rinsing gripper,upper turntable,guide
rail,protective shield, water-spraying device,water tray.
Capping system
The cap-sealing mechanism consists of cap sorting machine,cap-setting guide rail and capping machine
Auxiliary equipment
The auxiliary(optional) equipment have bottle rinsing water reflux tank, bottle-feeding air conveyor,and bottle-outputting chain,Besides,we will configure manual bottle feeding platform(or bottle unsrambler),automatic cap elevator and so on.
Product Display
Participate in the exhibition
Product packaging
wood case & plastic film packing
We ensure that the machine will arrive safely. Please rest assured.
After Sales:
1.1 year warranty
2.Free spare parts.
3.24h customer service
4.Engineers serve overseas if necessary
3.24h customer service
4.Engineers serve overseas if necessary
