Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale
Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale

Famous Brand Zoomlion RT100 100 Ton Big Rough Terrain Crane In Hot Sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $165000
≥2 Sets
US $154500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
construction
Rated Lifting Moment:
3500kN/m
Span:
35m
Place of Origin:
Hubei, China
Brand Name:
zoomlion
Weight (KG):
100000 kg
Type:
Telescopic Boom

Quick Details

Rated Loading Capacity:
100ton
Max. Lifting Height:
63m
Engine Brand:
EVANGEL
Application:
construction
Rated Lifting Moment:
3500kN/m
Span:
35m
Place of Origin:
Hubei, China
Brand Name:
zoomlion
Weight (KG):
100000 kg
Type:
Telescopic Boom

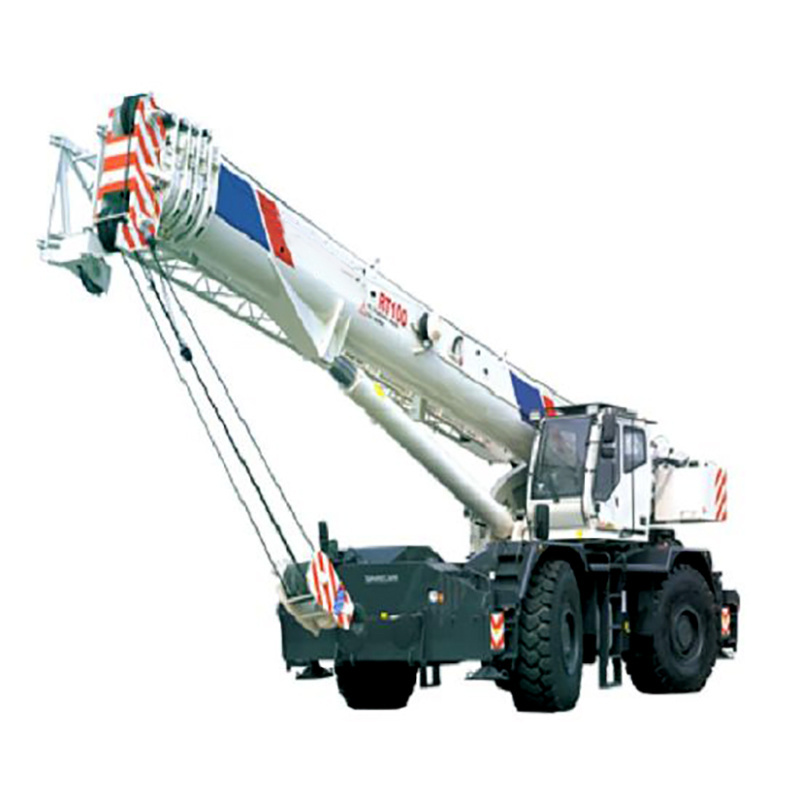

Famous brand zoomlion RT100 100 Ton big Rough Terrain crane in hot sale

Product Description

Maneuverable and robust drive
• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;
Short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites

Excellent off-road capability
• Big ground clearance and departure / approach angle offer excellent off-road capability.

Strong gradeability
• Cummins electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
• Even in the condition of abrupt road resistance,the engine can also be functional.
• Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum, suitable for any bad roads and job sites.

Pick-and-carry operations
• The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.
• The crane can also carry out ”On tires“ Lifts without extending the outrigger beams in narrow job sites.
• Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.

Single cab design
• Single cab design with large skylight provides large field of view;
• Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue, thus improves the working efficiency;
• The crane is fitted with air conditioning, suitable for all-weather work;
• Digital display and keyboard units,advanced data bus technology,error check and audible & acoustic alarm ensure the safety and high efficiency of the operation.

Item
Specification
Unit
Overall Length
14900
mm
Overall Width
3500
mm
Overall Height
3990
mm
Wheel Base
4645
mm
Total vehicle mass in travel configuration
79500
kg
Front Axle Load
41560
kg
Rear Axle Load
37940
Engine Model
QSL
Engine rated power
224
kw/(r/min)
Engine rated torque
1369
N.m/(r/min)
Max. travel speed
33
km/h
Min. turning diameter
15
m
Min. ground clearance
568
mm
Max. grade ability
60
%
Approach angle
21.1
°
Departure angle
17.3
°
Braking distance (at 30 km/h, full load )
9
m
Oil consumption per 100km
--
L
