Quick Details
-
Brand Name:
-
PANDA
-
Dimension(L*W*H):
-
1m*1.2m*1m
-
Splitting hole Dia:
-
42mm to 48mm
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Mininum Drilling hole Depth:
-
400mm to 700mm
-
Actual Spltting Force:
-
600 tons
-
Rated Working Pressure:
-
55-63Mpa
-
Splitting Distance:
-
13-18mm
-
Delivery:
-
Air/Sea/Express
-
Advantage:
-
High Performance
-
Product name:
-
Rock Splitter
Quick Details
-
Weight (KG):
-
200
-
Application:
-
stone, rock, concrete splitting, Coal Mining,Quarry drilling,DTH drilling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PANDA
-
Dimension(L*W*H):
-
1m*1.2m*1m
-
Splitting hole Dia:
-
42mm to 48mm
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Mininum Drilling hole Depth:
-
400mm to 700mm
-
Actual Spltting Force:
-
600 tons
-
Rated Working Pressure:
-
55-63Mpa
-
Splitting Distance:
-
13-18mm
-
Delivery:
-
Air/Sea/Express
-
Advantage:
-
High Performance
-
Product name:
-
Rock Splitter
China best Diesel Electric Gasoline Hydraulic Rock Splitter with steel Aluminum Darda C12 Guns Rock Drill

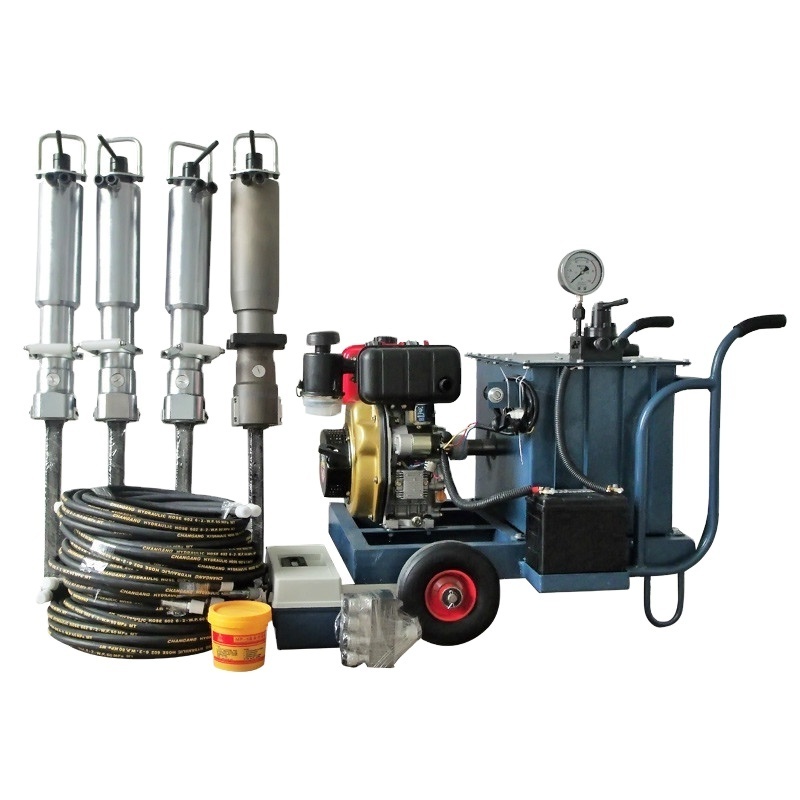

The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllably split rock or concrete. Especially suit for cabined area where large machine can not work.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
It is including Power Station and Cylinders.
Power Station
:
Including
Diesel & Electric & Gasoline
.
Cylinder (Gun)
:
Including
Aluminum & Steel
.
One Station can match 1-10 pieces cylinders.
Advantage of our hydraulic splitter:
Enormous splitting force up to 600 tons
Dust free and near silent operation
Vibration free
Light weight
Precision work
Always controllable
For use in close quarters and hard to access places
Easy handling
Different size counter wedge and center wedge can use on the same splitter.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
One Station can match 1-10 pieces cylinders.
Advantage of our hydraulic splitter:
Enormous splitting force up to 600 tons
Dust free and near silent operation
Vibration free
Light weight
Precision work
Always controllable
For use in close quarters and hard to access places
Easy handling
Different size counter wedge and center wedge can use on the same splitter.
|
Model
|
Splitting hole Dia.(mm)
|
Splitting Parts Dia.(mm)
|
Splitting Effective Length (mm)
|
Mininum Drilling hole Depth (mm)
|
Actual Spltting Force (Ton)
|
Rated Working Pressure (Mpa)
|
Splitting Distance (mm)
|
|
PA150
|
42-44
|
40.5
|
150
|
400
|
600
|
55.63
|
13-18
|
|
PA250
|
42-44
|
40.5
|
250
|
500
|
600
|
55.63
|
13-18
|
|
PA350
|
46-48
|
44.5
|
350
|
600
|
600
|
55.63
|
13-18
|
|
PA450
|
46-48
|
44.5
|
450
|
700
|
600
|
55.63
|
13-18
|
Power Station:
DIESEL
ELECTRIC
GASOLINE
Different Cylinders Materials:
ALUMINUM
Lighter, around 35kg per piece, a little more expensive than steel, the most popular one among customers.
C12
Also made by aluminum, but high performance. More similar with DARDA original.
STEEL
Around 45kg per piece, the most cheapest among the three materials. Also popular among customers.
Production Application:
Professional R&D Team
First-Class Sales Team
Effective Production Team
Perfect After-Sales Service Team
Ply-Wooden Boxes + Pallet
By Air/Sea/Express
Fast and Safe Delivery Team
DTH Hammer
99.8% Response Rate
DTH Pipes
97.9% Response Rate
DTH Hole Opener
96.8% Response Rate
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
