Quick Details
-
Model Number:
-
Oilvey 10
-
Specification:
-
3inch 4inch 5inch 6inch 8inch
-
Length:
-
50m, 100m, 200m
-
Thickness:
-
4.2mm
-
Standard:
-
ISO
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ASOE
-
Model Number:
-
Oilvey 10
-
Specification:
-
3inch 4inch 5inch 6inch 8inch
-
Length:
-
50m, 100m, 200m
-
Thickness:
-
4.2mm
-
Standard:
-
ISO
Product Description

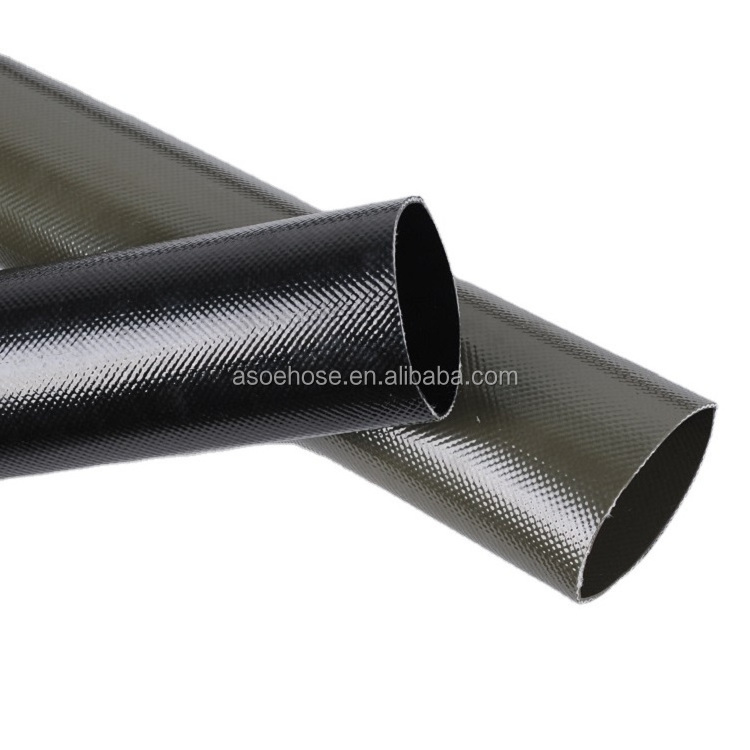

Oilvey 10 is one type of through-the -weave polyurethane (PU) covered hose. Oilvey 10 hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected
against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
Incorporated copper wire is used to transfer static electricity.
against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.
Incorporated copper wire is used to transfer static electricity.
Application:
Produced Water Transfer Solutions
Pipeline Bypass
Ship to Shore Unloading
Tank Clearing
Tank-to-Tank Transfer
Refueling Ships
Cargo Loading/Unloading
Pollution Control and Clean-Up
Salvage Pumping
Home Fuel Delivery
Loading/Unloading Rail Car
Aircraft Refueling
Inert Gas Handling
Dry Powder Handling
Aircraft Refueling
Bulk Fuel Transfer
Pipeline Bypass
Ship to Shore Unloading
Tank Clearing
Tank-to-Tank Transfer
Refueling Ships
Cargo Loading/Unloading
Pollution Control and Clean-Up
Salvage Pumping
Home Fuel Delivery
Loading/Unloading Rail Car
Aircraft Refueling
Inert Gas Handling
Dry Powder Handling
Aircraft Refueling
Bulk Fuel Transfer
Packing & Delivery
Standard Export Wooden Box, Reel, Carton
Packing: Steel reel, Pallet and other packing per request
Loading Port: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao and other China port per request
Packing: Steel reel, Pallet and other packing per request
Loading Port: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao and other China port per request
Specification
|
Oilvey 10 PU Layflat Hoses
|
|
|
|
|
||||
|
ID
|
|
Wall Thickness
|
Working Pressure
|
Bursting Pressure
|
||||
|
inch
|
mm
|
mm
|
PSI/bar
|
PSI/bar
|
||||
|
1 1/2”
|
35+1.5
|
2.2
|
250PSI/17bar
|
750PSI/51bar
|
||||
|
2”
|
51+1.5
|
2.7
|
250PSI/17bar
|
750PSI/51bar
|
||||
|
2 1/2”
|
64+1.5
|
2.9
|
250PSI/17bar
|
750PSI/51bar
|
||||
|
3”
|
76+2.0
|
3.0
|
250PSI/17bar
|
750PSI/51bar
|
||||
|
4”
|
103+2.0
|
3.2
|
250PSI/17bar
|
750PSI/51bar
|
||||
|
6”
|
153+2.5
|
4.2
|
200PSI/14bar
|
600PSI/42bar
|
||||
|
8”
|
204+3.0
|
4.5
|
215PSI/15bar
|
645PSI/45bar
|
||||
