Quick Details
-
Inside Diameter Range:
-
optional
-
Outside Diameter Range:
-
3-32mm
-
Spool Capacity:
-
Diameter
-
Arrange Width:
-
Refer
-
Voltage:
-
360v/220v
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
1000*750*1500mm
-
Weight:
-
1000
-
After-sales Service Provided:
-
online support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Huaming
-
Application:
-
Soft Plastic Pipes
-
Inside Diameter Range:
-
optional
-
Outside Diameter Range:
-
3-32mm
-
Spool Capacity:
-
Diameter
-
Arrange Width:
-
Refer
-
Voltage:
-
360v/220v
-
Power:
-
1.1kw
-
Dimension(L*W*H):
-
1000*750*1500mm
-
Weight:
-
1000
-
After-sales Service Provided:
-
online support

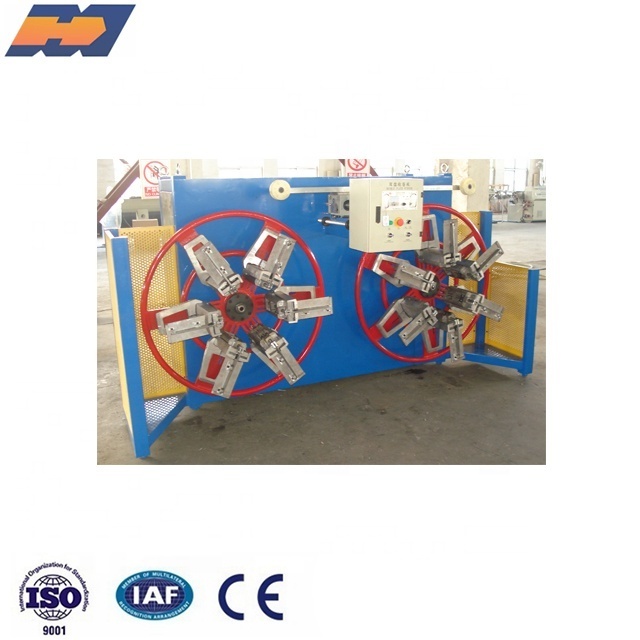

Pipe Winding Machine
Application:
The machine is mainly used in winding-up and packing of aluminium-plastic compound pipe cross-linking compound pipe and other plastic soft pipes. It automatically adjusts winding speed and winding methord. It has two disk for continious winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equipped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact. Its automatication is high. Its appearance is beautiful and its opration is conenient.
|
Model |
SPS280 |
SPS400 |
SPS700 |
SPS1250 |
|
Winding diameter ( mm ) |
280 |
400 |
700 |
1250 |
|
Winding width ( mm ) |
220 |
300 |
400 |
420 |
|
Winding speed (m/min) |
0.5-15 |
0.5-15 |
0.8-8 |
0.8-5 |
|
Winded pipe specification (mm) |
10-20 |
16-40 |
40-75 |
75-125 |
|
Air pressure (Mpa) |
0.6 |
0.6 |
0.6 |
0.6 |
|
Appearance size (mm) |
2100x1000x1400 |
2500x1150x1450 |
4500x2100x2410 |
4500x2250x2300 |
|
Weight (kg) |
7000 |
1000 |
2500 |
4500 |
We can also manufacture various single screw palstic extruders according to customers' needs!
Any futher information you want to know, please contact me or send inquiry!
