Quick Details
-
Travel (W-axis) (mm):
-
500 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
65 r.p.m
-
Spindle Motor Power(kW):
-
2.5
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.04 T
-
Boring range:
-
65-500mm
-
Feed stroke:
-
500mm (Support Customized)
-
Boring Bar (Standard):
-
60*1500mm (Support Customized)
-
Accessories:
-
Optional
-
After-sales Service:
-
Online support/video support
-
Boring Bar Speed rpm:
-
0-65
-
Power Type:
-
servo motor
-
Package:
-
Fumigation disinfection plywood packing box
Quick Details
-
Table Travel (X) (mm):
-
500 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
500 mm
-
Marketing Type:
-
Hot Product 2022
-
Range of Spindle Speed(r.p.m):
-
65 r.p.m
-
Spindle Motor Power(kW):
-
2.5
-
Production Capacity:
-
30
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LT
-
Voltage:
-
220V/380V
-
Weight (T):
-
0.04 T
-
Boring range:
-
65-500mm
-
Feed stroke:
-
500mm (Support Customized)
-
Boring Bar (Standard):
-
60*1500mm (Support Customized)
-
Accessories:
-
Optional
-
After-sales Service:
-
Online support/video support
-
Boring Bar Speed rpm:
-
0-65
-
Power Type:
-
servo motor
-
Package:
-
Fumigation disinfection plywood packing box
Products Description
Specification

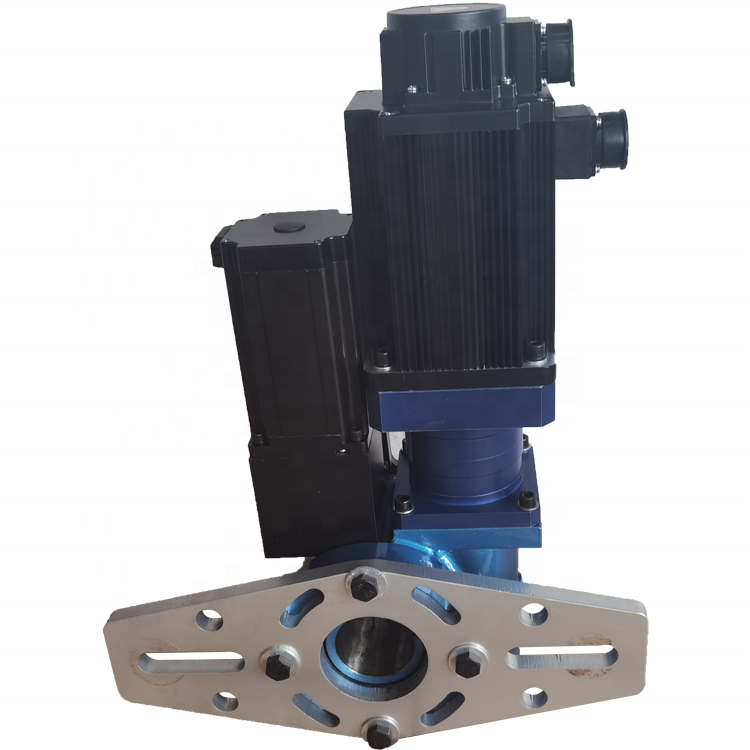

Portable boring machine is a non-standard, custom designed and manufactured on-site boring device. It adopts various modules and components and needs to be moved and transported to the slipway or other construction sites, and then assembled on site to form a boring device. A tooling equipment used for machining the inner hole, end face and end face sealing groove of bearing brackets such as shafting and rudder systems on the slipway.
◆ The boring bar of the boring machine for construction machinery is made of high-quality alloy steel, which has undergone multiple production processes such as special heat treatment, load testing, and inspection. It has high strength and extremely high wear resistance.
◆ The whole machine is composed of boring bar, feed box, power device and support device. The modular design makes the on-site installation and disassembly faster.
◆ Using servo motor to provide power, constant torque and powerful cutting power ensure the stability of the equipment.
◆ The supporting device of the boring bar adopts self-aligning bearing, which is easy to install and replace, small in size, and can be self-aligned to ensure the coaxial accuracy of the processing hole.
◆ All the materials of the boring machine are made of high-quality metal, the whole machine has stable performance, high strength, and the contact parts have extremely high wear resistance.
