Quick Details
-
Input Voltage:
-
220V
-
Application:
-
CATV
-
Certification:
-
CCC
-
Product Name:
-
Dc Power
-
Warranty:
-
3 Years
-
Type:
-
Indoor
-
Protection:
-
Voltage
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
Material:
-
Iron
-
Name:
-
60V 6A AC Adapter Power
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YATAI
-
Model Number:
-
YT
-
Input Voltage:
-
220V
-
Application:
-
CATV
-
Certification:
-
CCC
-
Product Name:
-
Dc Power
-
Warranty:
-
3 Years
-
Type:
-
Indoor
-
Protection:
-
Voltage
-
Protections:
-
Short Circuit Overload Overvolt Overtemp
-
Material:
-
Iron
-
Name:
-
60V 6A AC Adapter Power

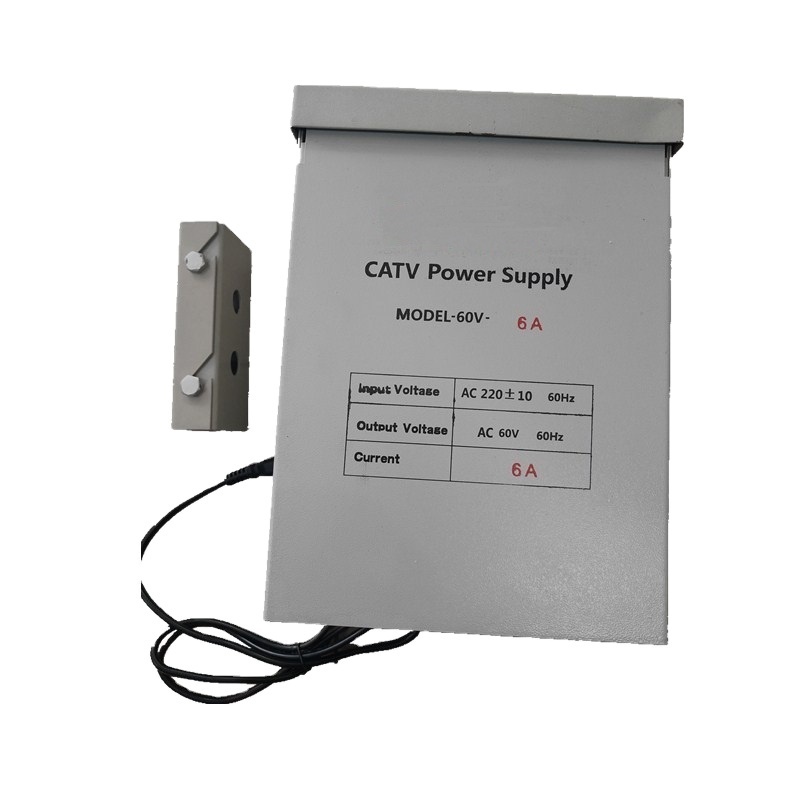

Power Supply Specification
Welcome to choose our company's power supply,This type AC60V power supply is produced for protecting cable TV network. Please read carefully before using, Our company does not undertake any responsibility if it’s caused by your incorrect operation and inaccuracy installation. Meantime, this product is not in the range of “three guarantees” (for repair, replacement or compensation of faulty products).
T echnical Parameters
|
Item |
Power supply |
Model |
LKDZ— 6A LKDZ—60—6A |
|
Input Voltage |
AC220V |
Output Voltage |
AC60V |
|
Frequency |
50HZ |
Rated Current current current |
2~15A optional |
|
Working |
continuation,self cooling
|
Protective Current
|
1.5 times the rated current |
|
Working condition |
-40--+50 degree |
Band |
5-1000MHZ |
|
Insulation Resistance |
>100M |
Flatness |
±0.5dB |
|
Dielectric Strength |
2KV/Min No breakdown and flashing phenomenon |
Reflection Loss |
>12dB |
|
Quality |
Satisfy the requirements of GB/T11318.9-1996 |
||
Performance Feature
1.With toroidal power transformer,small magnetic flux leakage, low loss, no noise, strong load capacity.
2.Dual output design,when any circuit does not need to supply, as long as remove the corresponding fuse on the internal circuit board .
3.With built-in signal inserter, two ports can be used as a signal input and output ports, the construction is convenient.
4. Rain and lightning protection design,overload protection,alarm,automatically restore power when troubleshooting.
5. Used both indoor and outdoor.
Schematic circuit
Cautions
1.In order to prevent the rain and the air convection cooling and e xtend service life, P ower supply should be erected, no matter any type of installation.
2.The power installation and fixation must be secure,in case falling.
3.The power cord connection point and input/output port tightening and press firmly, in order to prevent poor contact and initiate fire .
4.The place of installing should keep away from flammable and explosive points,and keep well ventilated and no corrosion environment.
5.Must test power supply in power grid voltage requirements are consistent with its input before starting up, in case of damage to power supply and related equipment.
6.U se the same specifications of the substitution when changing the fuse.
7. Power grounding is good and reliable, i n case of electric shock accidents.
8. Please immediately contact the dealer or manufacturer, when the power failures, do not change it without permission.
