Quick Details
-
Network:
-
Wired
-
Product name:
-
Wired Beam Detector
-
Power input:
-
DC9V-30V/AC9--30V
-
Current consumption:
-
<70mA max
-
Detection method:
-
Simultaneous interruption of all infrared beams
-
Interruption time:
-
50/100/300/700ms
-
Alarm cycle:
-
>1.5s
-
Alarm output:
-
1C Relay NC/NO output optional
-
Working temperature:
-
-30℃--70℃
-
Humidity:
-
<95%
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
Netrual
-
Model Number:
-
LD-ABT-60/100
-
Network:
-
Wired
-
Product name:
-
Wired Beam Detector
-
Power input:
-
DC9V-30V/AC9--30V
-
Current consumption:
-
<70mA max
-
Detection method:
-
Simultaneous interruption of all infrared beams
-
Interruption time:
-
50/100/300/700ms
-
Alarm cycle:
-
>1.5s
-
Alarm output:
-
1C Relay NC/NO output optional
-
Working temperature:
-
-30℃--70℃
-
Humidity:
-
<95%
Product Description

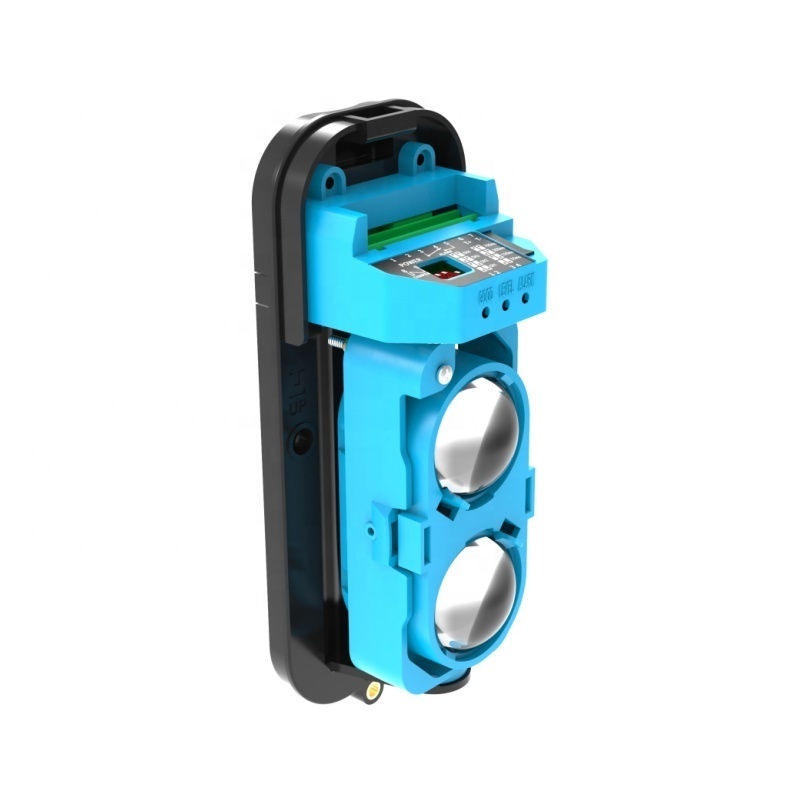

IP65 Waterproof Outdoor Infrared Fence Detector Wireless Beam Sensor
Features:
*
4ch frequencies selectable
*
Interruption time adjustable
* Tamper alarm
* Wide voltage design
* Long distance perimeter protection
* Wide voltage design
* Long distance perimeter protection
Specification
|
item
|
value
|
|
Product name
|
Wired Beam Detector
|
|
Detection distance
|
60m/ 100m optinal
|
|
Power voltage
|
DC 9--30V/AC 9-20V
|
|
Working current
|
<70mA max
|
|
Interruption time
|
50/100/300/700ms
|
|
Alarm duration time
|
>1.5s
|
|
Alarm output
|
NC/NO
|
|
Tamper alarm
|
NC
|
|
Waterproof grade
|
IP65
|
|
Working temperature
|
-30-70℃
|
|
Humidity
|
≤95% RH
|
|
Alignment angle
|
Horizontal:180°±90° Vertical: 20°±10°
|
|
Dimension
|
184mm*73mm*71mm
|
