Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NIANFENG
-
Model Number:
-
NF184L-F, NF184L-F
-
Insulation class:
-
H class
-
Protection Class:
-
IP23
-
Excitation type:
-
Brushless
-
Bearing:
-
Single bearing
-
Phase:
-
3 Phase
-
Color:
-
Customers' Request
-
Rated Power:
-
25KVA 20KW
-
Certification:
-
CE ISO9001
Quick Details
-
Rated Voltage:
-
230V, 380v, 400V
-
Rated Current:
-
45A
-
Frequency:
-
50Hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NIANFENG
-
Model Number:
-
NF184L-F, NF184L-F
-
Insulation class:
-
H class
-
Protection Class:
-
IP23
-
Excitation type:
-
Brushless
-
Bearing:
-
Single bearing
-
Phase:
-
3 Phase
-
Color:
-
Customers' Request
-
Rated Power:
-
25KVA 20KW
-
Certification:
-
CE ISO9001

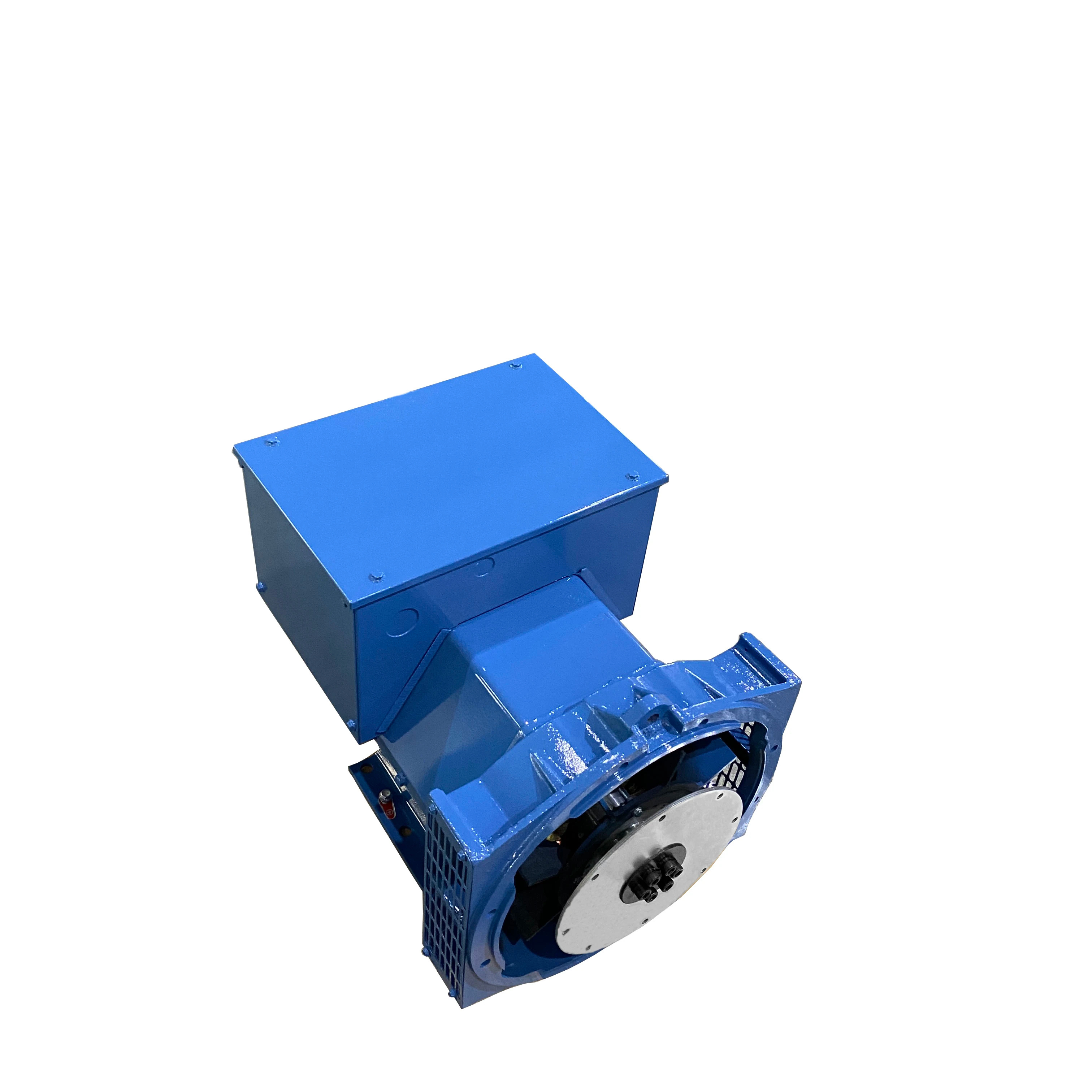

Best price!! NF184series brushless alternator generator
Description：Products character
1. Optional auxiliary winding or phase-compound excitation system can provide the ability of bearing short-circuit current
2. Advanced automatic voltage regulator system can guarantee the genrator work normally even in the worst conditions.
3. Reorganization the first twelve terminal block wiring to fit the different voltage requirements.
4. Standard 2 / 3 pitch windings curbed excessive midline current, making it very easily to operate with other generatorsinparallel.
5. Unique overall design of salient-pole rotating magnetic field, taking into account the advantages of separation ofsalient-poleand hidden structure, and improved the thermal conditions and the winding coil increased mechanical strength.
6. Easy installation, convenient maintenance, with easily operated terminal, rotating diodes and the bolt shaft.
7. Both of the single and full pivot type structures, in compliance with all the leading diesel engine land assemblyinterfacestandards.
8. Adopted a completely continuous damper winding and the 2 / 3 pitch windings effectively inhibit the output voltage
waveformdistortion and greatly reduce telephone harmonic factor and telephone interference factor.
Electrical performance
Voltage sinusoidal waveform distortion rate:≤5%
Telephone harmonic factor (THF):≤2%
Telephone interference factor(TIF):≤50
AVR optional
SX460,MX321,MX341,SX440,SX440T,AS440,etc.
2. Advanced automatic voltage regulator system can guarantee the genrator work normally even in the worst conditions.
3. Reorganization the first twelve terminal block wiring to fit the different voltage requirements.
4. Standard 2 / 3 pitch windings curbed excessive midline current, making it very easily to operate with other generatorsinparallel.
5. Unique overall design of salient-pole rotating magnetic field, taking into account the advantages of separation ofsalient-poleand hidden structure, and improved the thermal conditions and the winding coil increased mechanical strength.
6. Easy installation, convenient maintenance, with easily operated terminal, rotating diodes and the bolt shaft.
7. Both of the single and full pivot type structures, in compliance with all the leading diesel engine land assemblyinterfacestandards.
8. Adopted a completely continuous damper winding and the 2 / 3 pitch windings effectively inhibit the output voltage
waveformdistortion and greatly reduce telephone harmonic factor and telephone interference factor.
Electrical performance
Voltage sinusoidal waveform distortion rate:≤5%
Telephone harmonic factor (THF):≤2%
Telephone interference factor(TIF):≤50
AVR optional
SX460,MX321,MX341,SX440,SX440T,AS440,etc.
|
MODEL
|
POWER
|
Rated Volt(V)
|
RatedSpeed(r/min)
|
Frequency(HZ)
|
|
NF-184D
|
20KVA 16KW
|
230/380/400
|
1500
|
50
|
|
NF-184E
|
22.5KVA 18KW
|
230/380/400
|
1500
|
50
|
|
NF-184F
|
27.5KVA 22KW
|
230/380/400
|
1500
|
50
|
|
NF-184G
|
31.3KVA 25KW
|
230/380/400
|
1500
|
50
|
|
NF-184H
|
37.5KVA 30KW
|
230/380/400
|
1500
|
50
|
|
NF-184J
|
40KVA 32KW
|
230/380/400
|
1500
|
50
|
NIANFENG is a major industry manufacturer for generators in Fujian Province, located in the city of"The capital of Chinese Small
and Medium-sized Motor"--Fuan city, it is specializing in the research and manufacturing of Land/Marine generators, high-voltage
generators, permanent magnet generators and other types of generators
and Medium-sized Motor"--Fuan city, it is specializing in the research and manufacturing of Land/Marine generators, high-voltage
generators, permanent magnet generators and other types of generators
For more than ten years, NIANFENG insists on creating evergreen brand with quality, and has passed ISO9001 quality system,
ISO14001 environmental management system and ISO45001 occupational health and safety management system certification. Technical
performance indicators have reached the international advanced level of the company, the products comply with various
international standards, product power, voltage, frequency, protection grade cover ability can meet the demand of global users
diversification, when compared with similar products at home and abroad has higher efficiency and better dynamic performance, low
temperature, low waveform distortion rate, AVR advantages of parallel running stability, It can match all kinds of power systems
well, and is widely used in many fields such as data center, building, ship, military, electric power, factory and mine, railway,
highway, petrochemical and so on. It is well received by customers at home and abroad.
ISO14001 environmental management system and ISO45001 occupational health and safety management system certification. Technical
performance indicators have reached the international advanced level of the company, the products comply with various
international standards, product power, voltage, frequency, protection grade cover ability can meet the demand of global users
diversification, when compared with similar products at home and abroad has higher efficiency and better dynamic performance, low
temperature, low waveform distortion rate, AVR advantages of parallel running stability, It can match all kinds of power systems
well, and is widely used in many fields such as data center, building, ship, military, electric power, factory and mine, railway,
highway, petrochemical and so on. It is well received by customers at home and abroad.
At present, NIANFENG has built more than 47,000 square meters of modern production plant, with scientific machinery and equipment
enterprise management system and a complete industry internal supply chain, the annual production capacity is up to 100,000 sets.
NIANFENG's scientific research and innovation ability is the leader in the generator industry, it has won more than 30 national
invention and utility model patents, and has been awarded the "National High-Tech Enterprise", "Provincial Science And Technology
Giant Leading Enterprise", "Provincial Specialized, Fine And Special New Enterprise" and other honorary titles.
enterprise management system and a complete industry internal supply chain, the annual production capacity is up to 100,000 sets.
NIANFENG's scientific research and innovation ability is the leader in the generator industry, it has won more than 30 national
invention and utility model patents, and has been awarded the "National High-Tech Enterprise", "Provincial Science And Technology
Giant Leading Enterprise", "Provincial Specialized, Fine And Special New Enterprise" and other honorary titles.
NIANFENG generator, high efficiency and low consumption, make the world better!
www.zgnfmotor.com
Q1. What's your
power range
of diesel generators?
Answer: 7.5KVA-3120KVA
Q2. What's your delivery time ?
A: 15-35 days after we get the deposit. We have the huge quantities in stock.
Q3. Are you trade company or manufacturer ?
A: We are an experienced manufacturer. We have more than 12 years of experience. We have our own factory for generatorsandgenerator sets.
Q4. What's your warranty ?
A: 1 year warranty or 1000 hours which comes first.
Q5. What's your MOQ ?
A: MOQ is 1 set . Sample order or trial order is acceptable.
Q6. What’s the frequency of diesel generators?
A: 50/60Hz
Q7. What's your payment ?
A: T/T , L/C at sight and Trade Assurance.
Q8. What’s the voltage of your alternator and diesel generator?
A: Generally speaking, the voltage is 110V/380V,230V/400V/415V or according to your requirement.
Q9. Do you have any certificate ?
A: ISO9001, GB755, CE .
Q10. Do you provide OEM ?
A: Yes. We can make different color or different voltage.
Q2. What's your delivery time ?
A: 15-35 days after we get the deposit. We have the huge quantities in stock.
Q3. Are you trade company or manufacturer ?
A: We are an experienced manufacturer. We have more than 12 years of experience. We have our own factory for generatorsandgenerator sets.
Q4. What's your warranty ?
A: 1 year warranty or 1000 hours which comes first.
Q5. What's your MOQ ?
A: MOQ is 1 set . Sample order or trial order is acceptable.
Q6. What’s the frequency of diesel generators?
A: 50/60Hz
Q7. What's your payment ?
A: T/T , L/C at sight and Trade Assurance.
Q8. What’s the voltage of your alternator and diesel generator?
A: Generally speaking, the voltage is 110V/380V,230V/400V/415V or according to your requirement.
Q9. Do you have any certificate ?
A: ISO9001, GB755, CE .
Q10. Do you provide OEM ?
A: Yes. We can make different color or different voltage.
