Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEIGU
-
Model Number:
-
L109
-
Material:
-
Q235
-
Surface:
-
Hot dip galvanized,Painted,galvanized
-
Frame Weight:
-
20kg
-
Frame Size:
-
1.05x2.0m
-
Marketing:
-
Italy, Romania
-
Noted:
-
OEM service is available
-
Style:
-
Italian Pin Type Frame
-
Standard:
-
EN12811
-
Certificate:
-
COC
-
Frame Thickness:
-
2.3mm/2.9mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Inspection, Return and Replacement
-
Project Solution Capability:
-
3D model design
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEIGU
-
Model Number:
-
L109
-
Material:
-
Q235
-
Surface:
-
Hot dip galvanized,Painted,galvanized
-
Frame Weight:
-
20kg
-
Frame Size:
-
1.05x2.0m
-
Marketing:
-
Italy, Romania
-
Noted:
-
OEM service is available
-
Style:
-
Italian Pin Type Frame
-
Standard:
-
EN12811
-
Certificate:
-
COC
-
Frame Thickness:
-
2.3mm/2.9mm
Advantages:
1) Reasonable structure, simple assembly, quick operation, safety & reliability;
2) Easy to transport and knock down, high efficiency, save massive manpower and resource.
3) Easy to carry and operate with the weight about 20kg/piece.
4) Assembly & disassembly with hands only.

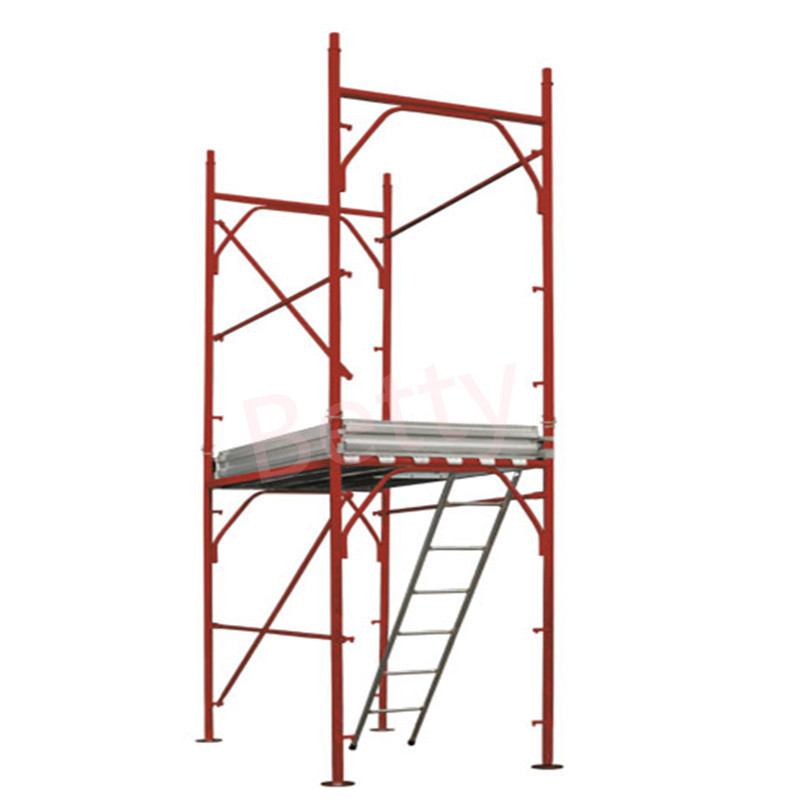

Below are the features of the GBM scaffolding:
- Pitch: 1800 mm
- Frame height: 2000 mm
- Frame depth: 1050 mm
- Half frame height: 1240 mm
- Length of horizontal ledgers centre distance: 1800 mm
- Length of diagonal braces centre distance: 2186 mm
- Frame weight: 20 kg
- Horizontal ledgers weight: 2.65 kg
- Diagonals braces weight: 3.25 kg
- Maximum load: 30kN/m2
- S235JR steel pipes
- Red RAL 3009 dip coating or hot-dip galvanization in compliance with the UNI EN 12811 standard
- Platforms with trapdoors and ladder
- Safety parapets for the ends, stone guards, rods, top parapets, adjustable base plates, toeboards.
When all the process are finished,the products will be packaged as customers' requirments,some of them want us to package as follows,by Italian type steel pallet ,some products need in packed in frame.What packages do you want us do for you?Please let me know,through leave message to my TRADE MANAGER on line,or send inquiry to my email,I'll reply you in the first.
• Rizhao Weiye Tools Co.,Ltd. is manufacturer and exporter of forged construction couplers and scaffolds in northern China. We had pasted ISO9001:2000 , all the produces in accordance with the BS1139 and EN74 standards strictly. We are Exporting products to more than a dozen countries such as Europe, Australia, Southeast Asia,etc.
• The scaffolding systems contains ringlock system ,cuplock system, kwikstage system,north europe system etc. These scaffolding can be widely used on construction industry,ship industry,stage erect,and so on.
We had qualified by ISO9001:2008,all our product are match to the China certificate,and also match the standard of BS1139,EN74A/B.You can see the signs on the products surface.
RIZHAO WEIYE TOOLS,CO.,LTD is a real factory in Rizhao city,you can see our company name on the above pictures,we have three branch plant,all the name is RIZHAO WEIYE TOOLS CO.,LTD.in chinese is ……………,here not allow us write characters in chinese,so you can see in the picures,or mail to me,ok?For more information, please visit our website or contact us directly.
