Quick Details
-
Production Capacity:
-
20-80bags/min
-
Weight (KG):
-
1980
-
Voltage:
-
220v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Weeshine
-
Dimension(L*W*H):
-
L2860 x W2580 x H3450mm
-
Product name:
-
WPV200 Automatic Vertical Packaging System
-
Packing Speed:
-
20-90bag/min.
-
Machine Material:
-
Stainless Steel 304
-
After-sale Service:
-
Engineers available to service overseas.
-
Bag size:
-
(L)80-300mm (W) 80-200mm
-
Weight range:
-
10g-1000g
Quick Details
-
Function:
-
FILLING, Sealing, packing,sealing
-
Packaging Type:
-
Film, Foil, PE Bag&Sachet&Chain-bag
-
Packaging Material:
-
Laminated Film,PE
-
Production Capacity:
-
20-80bags/min
-
Weight (KG):
-
1980
-
Voltage:
-
220v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Weeshine
-
Dimension(L*W*H):
-
L2860 x W2580 x H3450mm
-
Product name:
-
WPV200 Automatic Vertical Packaging System
-
Packing Speed:
-
20-90bag/min.
-
Machine Material:
-
Stainless Steel 304
-
After-sale Service:
-
Engineers available to service overseas.
-
Bag size:
-
(L)80-300mm (W) 80-200mm
-
Weight range:
-
10g-1000g
Products Description
|

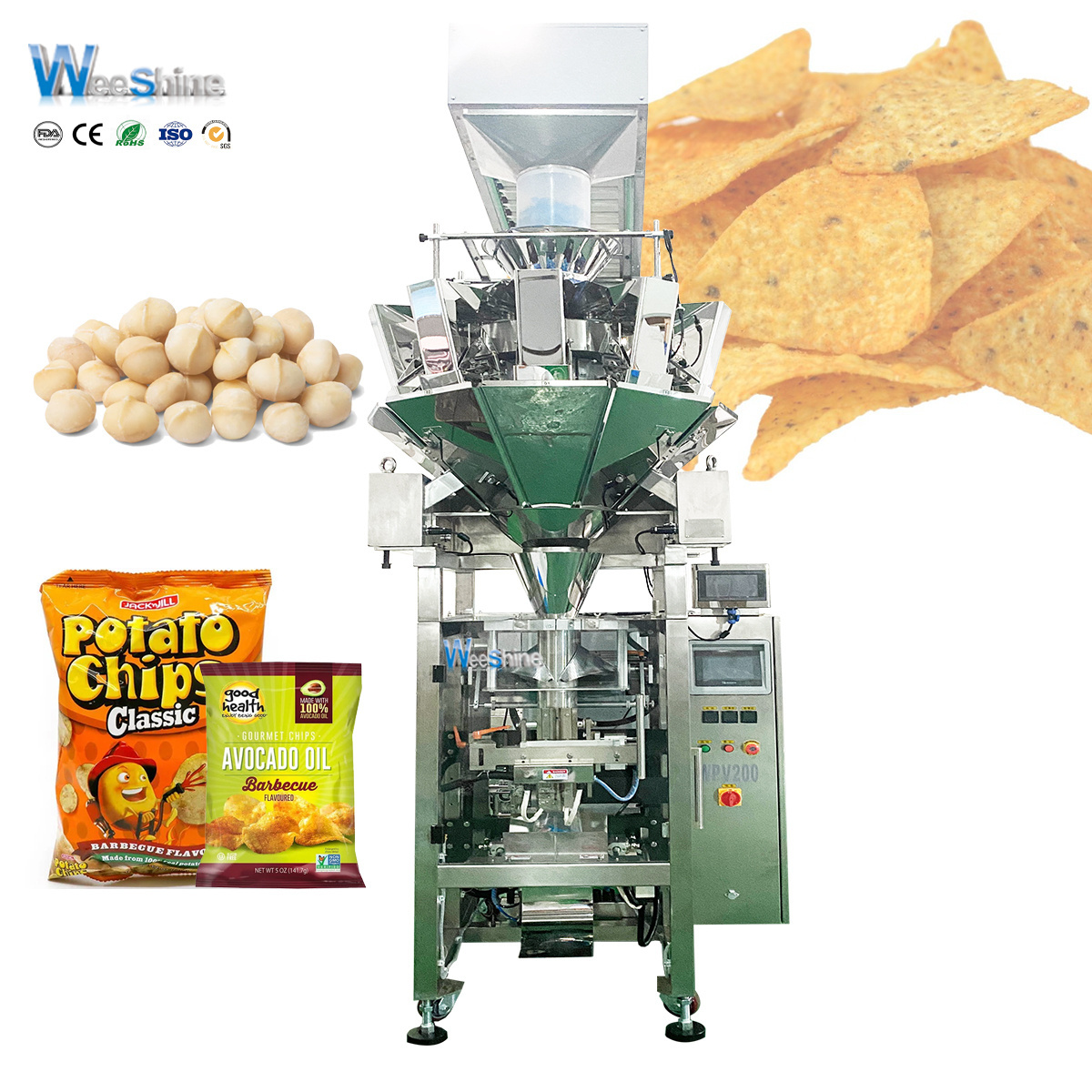

WPV200 Granule Vertical Packing Machine Specification
|
|
|
|
Model
|
WPV200
|
|
|
Bag size
|
(L)80-300mm
(W) 80-200mm |
|
|
Film width
|
Max.420mm
|
|
|
Film thickness
|
0.05-0.10mm
|
|
|
Packing range
|
10gs-1000gs/bag
|
|
|
Packing speed
|
20-90 bags/min
|
|
|
Air consumption
|
0.65Mpa, 0.4m³/min
|
|
|
Power supply
|
220V/380V 50-60Hz
|
|
|
Power
|
4.5KW
|
|
|
Dimension
|
L2860 x W2580 x H3450mm
|
|
|
Weight
|
1980kgs
|
|
|
Packing material
|
All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order)
|
|
|
We have several models. We can customize the right model for you according to your requirements. Please contact us for more information.
|
|
|
Main Features
1.Equipped with safety protection,comply with firm's safety management requires.
2. PLC and HMI controller, easy to operate and maintain.
3.S
ervo film pulling system,photocell accuracy cutting position.
4. Touch screen can store the technical parameters of various kinds of products.No need to reset while products changing.
5. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and
more
stable.
6. Automatically completed products feeding,forming, filling, gas flushing (exhausting), sealing,
cutting,date
printing and counting.
7. Have error indicating system, helping handle the trouble immediately.
8. The device of gusseted bag, linked bag, punching device ect for optional.
8. The device of gusseted bag, linked bag, punching device ect for optional.
