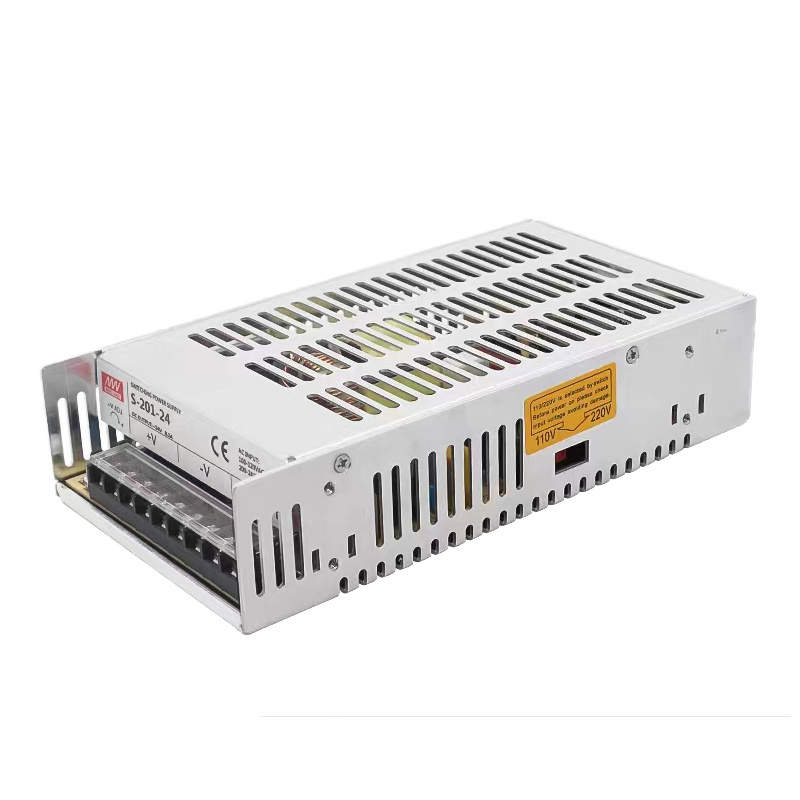

201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply
201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply

201w LED display Switching Power Supply 40A 5v LED video wall panel module dc power supply display screen dc 5v power supply

FOB Reference Price: Get Latest Price
≥5 Pieces
US $14.54
≥200 Pieces
US $12.65
≥800 Pieces
US $11.23
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
ZTAO
Model Number:
S-201-5
Output Frequency:
50~60Hz
Output Current:
40A
Color:
silver
Product Name:
201w LED display Switching Power Supply

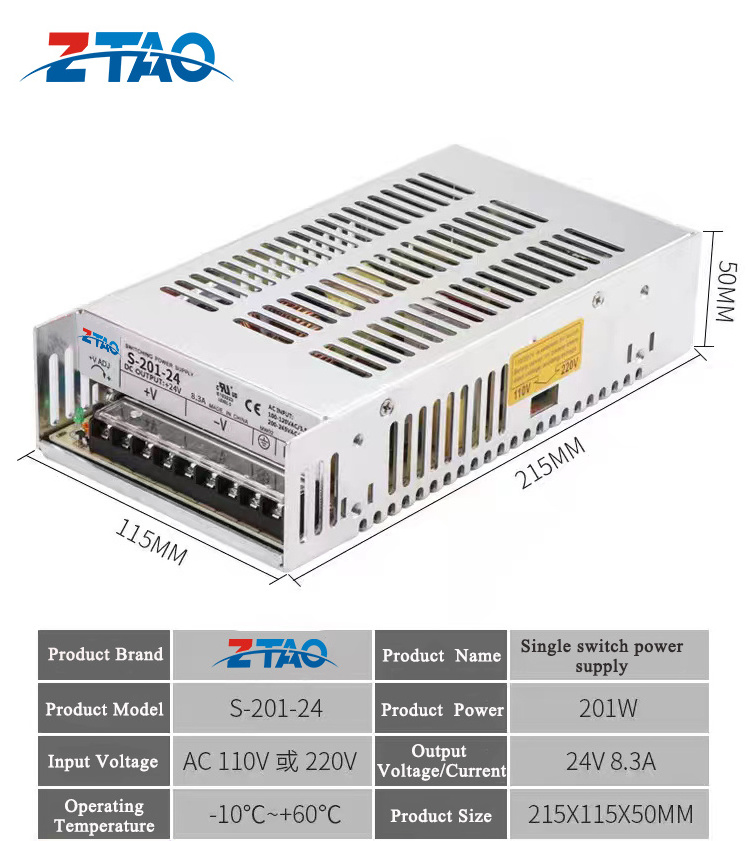

Dimension:
215*115*50mm(L*W*H)
Packing:
1.05Kg:20PCS/20KgT
Working TEMP:
-10~+60℃
Application:
LED Products
Certification:
CE FCC ROHS
Warranty:
3 Years
Protection:
OCP OVP SCP OPP
Output:
Customer's Requests
MOQ:
1 Piece

Quick Details

Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on230VAC)
Output Voltage:
5V
Place of Origin:
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-201-5
Output Frequency:
50~60Hz
Output Current:
40A
Color:
silver
Product Name:
201w LED display Switching Power Supply
Dimension:
215*115*50mm(L*W*H)
Packing:
1.05Kg:20PCS/20KgT
Working TEMP:
-10~+60℃
Application:
LED Products
Certification:
CE FCC ROHS
Warranty:
3 Years
Protection:
OCP OVP SCP OPP
Output:
Customer's Requests
MOQ:
1 Piece
Product Paramenters
Hot Sale Led Driver Switching S-250-24 Smps Ac Dc 24v 10a 250w Switching Power Supply
MODEL
S-201-5
S-201-12
S-201-24,
S-201-36
S-201-48
DC Voltage
5V
12V
24V
36V
48V
Rated Current
40A
16.6A
8.3A
5.5A
4.1A
Current range
0~40A
0~16.6A
0~8.3A
0~5.5A
0~4.1A
Rated power
201W
201W
201W
201W
201W
Ripple&noise
100mVp-p
120mVp-p
120mVp-p
150mVp-p
150mVp-p
Voltage ADJ.
5~8V
12~14V
24~28V
36~38V
48~53V
Efficiency
78%
80%
80%
82%
84%

Over load
105%~150% in rated output power
Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage
8~10V
15~16.5V
29~33V
40~45V
58-65V
Protection mode,tum off output voltage, restart to recover
Product Description
Details Images
01.
PURE COPPER
TRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand, low loss and large capacity
03.
DUST PROTECTION COVER
Prevent accidental touch and improve safety performance
Related Products
Product Usage

    • Product usage introduction

    • AND Our Services & Strength

1. 3 years warranty
2. Supply at factory price
3. Faster delivery: Sample order in stock,
and 3-7days for bulk production
4. Had awarded CE,FCC & ROHS certification
5. Any inquiries will be replied within 24 hours
