Quick Details
-
Model Number:
-
SKRTLBE010
-
Max. Current:
-
0.5A
-
Material:
-
PA6T, PA9T, LCP or PPA Plastic
-
Actuating Force:
-
180gf/200gf/250gf/Customized
-
Travel:
-
0.20±0.1mm
-
Lifespan:
-
More than 100000Cycels
-
Temperature Range:
-
-25~+70°℃
-
Withstand Voltage:
-
250V, AV/min
-
Rated Load:
-
DC 12V 0.5A
-
Contact Resistance:
-
≤0.03Ω
-
Insulation Resistance:
-
≥100MΩ
-
Certificate:
-
ROHS
-
Certification:
-
ROHS
Quick Details
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koumay
-
Model Number:
-
SKRTLBE010
-
Max. Current:
-
0.5A
-
Material:
-
PA6T, PA9T, LCP or PPA Plastic
-
Actuating Force:
-
180gf/200gf/250gf/Customized
-
Travel:
-
0.20±0.1mm
-
Lifespan:
-
More than 100000Cycels
-
Temperature Range:
-
-25~+70°℃
-
Withstand Voltage:
-
250V, AV/min
-
Rated Load:
-
DC 12V 0.5A
-
Contact Resistance:
-
≤0.03Ω
-
Insulation Resistance:
-
≥100MΩ
-
Certificate:
-
ROHS
-
Certification:
-
ROHS

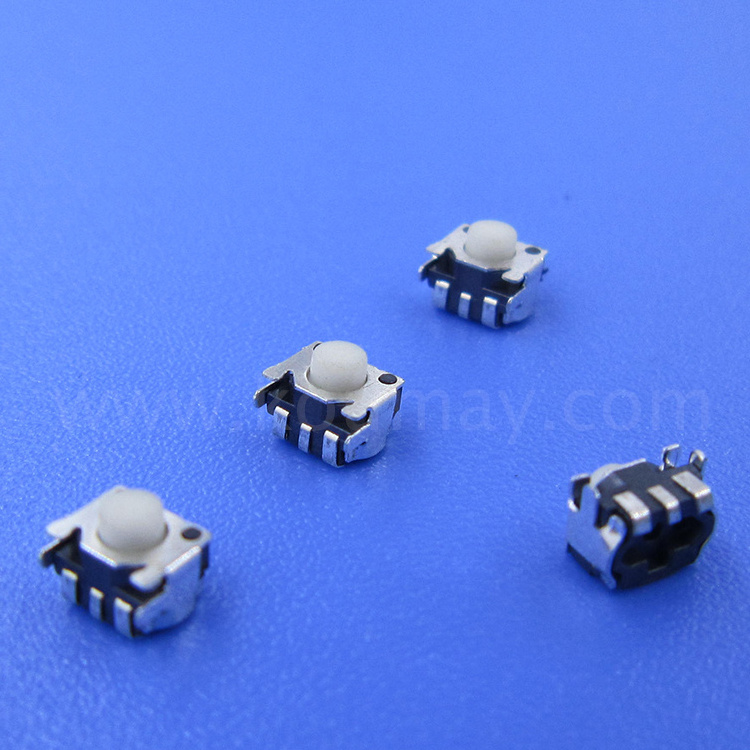

Tact Switch
|
Tact switch |
Specification |
|
Rating |
0.5A 12V DC |
|
Contact resistance |
100mΩ max |
|
Insulation resistance |
100MΩ min at 500V DC |
|
Dielectric strength |
AC 500V for 1 min |
|
Lifespan |
100,000 Cycles |
|
Practical temperature range |
-25 to 85 degrees Celsius |
|
RoHS |
Yes |
|
[Warm Tips] All informations above are for reference only; Particulars of all items are base on individual specification. |
|
