Can show the detailed working data, make the data visual. It will be easier to adjust and control the machine for customer. With memory function, can see the product quantity.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1150*770*840mm
-
Weight:
-
110 KG
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
30-50bottles/min
-
Packaging Material:
-
Wood
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 1150*770*840mm
-
Weight:
-
110 KG
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Product Description

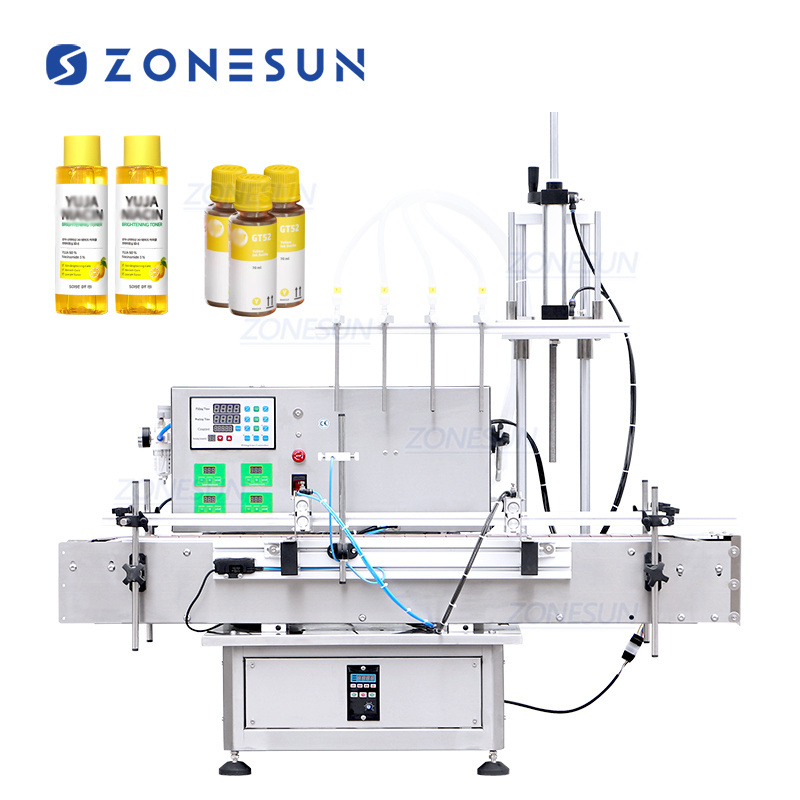

Desktop full automatic machine is very efficient with high cost performance. It is widely used in daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump. Ensue the cleanliness of the liquid,It is good choice for strong corrosive liquid such as biological liquid, eye drops, sulfuric acid, hydrochloric acid, disinfectant, essential oils, solvents, etc.
|
Machine model
|
ZS-DTPP4D
|
|
Power supply
|
AC110V/220V 50Hz-60Hz 60W(Each Pump)
|
|
Filling Range
|
2500ml/min
|
|
Maximum flow
|
2500m/min for each nozzle (based on water )
|
|
Filling nozzles
|
4(we can customize the nozzles based on your demands)
|
|
Working speed
|
30-50 bottles/min(based on bottles and liquids)
|
|
Air pressure
|
0.3-0.4MPa
|
|
Filling accuracy
|
≤±1% (For water)
|
|
Diameter of filling nozzle
|
6/8mm
|
|
Delay range
|
0.01-999.9s
|
|
Belt length
|
1m
|
|
Size of air compressor connector
|
OD8mm
|
|
Package size
|
About 1150*770*840mm
|
|
Package weight
|
About 110kg
|
Electric eye can detect the passing through bottles and send the signal back to the system, make sure the machine fill liquid accurately and will not miss any bottles.
The chain conveyor has larger weight capacity which is good for transport heavier products.The speed regulator is used to control working speed of conveyor belt. This makes sure the machine can work with other machine better and more convenient to adjust the machine.
The liquid will not pass through the pump and be filled. Ensure the liquid is clean and improve your production quality. Compared with another peristaltic pump filling machine, this one will be easier to change filling hose.
