Professional Supplier of Manual Hydraulic Hose Pipe Crimping Machine

Professional Supplier of Manual Hydraulic Hose Pipe Crimping Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $19900

≥10 Sets

US $18900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 780mm*710mm*1400mm

Weight:: 730

Name:: hydraulic hose crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT81B

Color:: Blue

Control System:: Electric Control System

HS COSDE:: 846291900

Origin:: Tianjin,China

Certification:: CE

Keywords:: Hydraulic Hose Crimping machine

Material:: Carbon Steel

Quick Details

Place of Origin:: Tianjin, China

Brand Name:: BNTFLEX

Voltage:: 380V/220V

Dimension(L*W*H):: 780mm*710mm*1400mm

Weight:: 730

Name:: hydraulic hose crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT81B

Color:: Blue

Control System:: Electric Control System

HS COSDE:: 846291900

Origin:: Tianjin,China

Certification:: CE

Keywords:: Hydraulic Hose Crimping machine

Material:: Carbon Steel

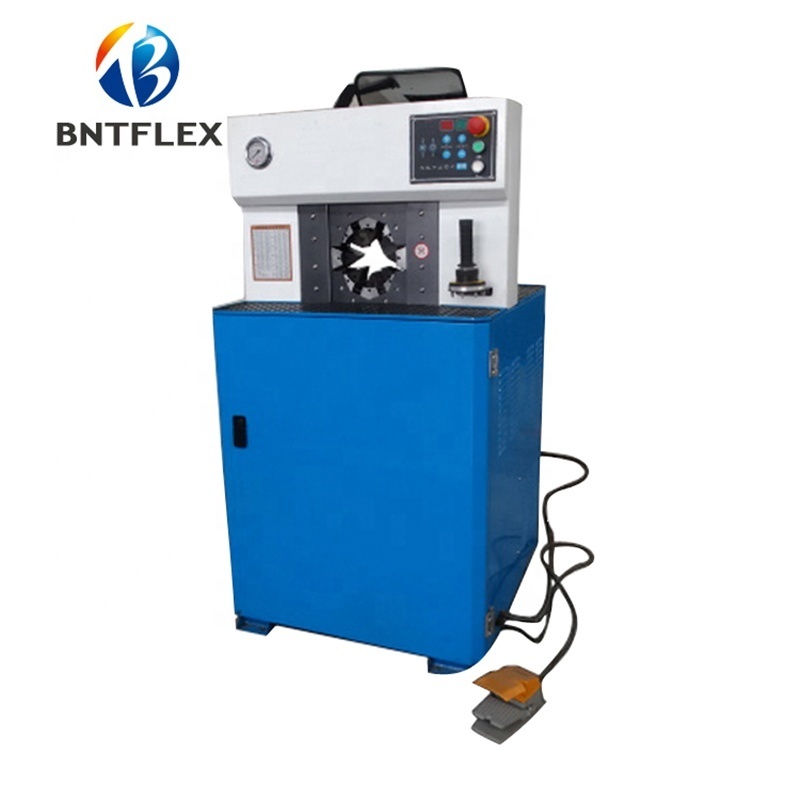

CRIMPING MACHINES

BNT81B

PROFESSIONAL WORKSHOP BENCHTOP

KEY ADVANTAGES

• Ergonomic micrometer

• Radial die movement

• High crimping force

• Electronic control and semiautomatic opening

• Cylinder protection

• Easy front access for elbow fittings

• Energy savings

MAIN APPLICATIONS

Dedicated to hydraulic maintenance specialists working on medium sized machines and equipment. Also suitable for assemblers involved in medium sized hoses and quantities.

TECHNICAL SPECIFICATIONS

Motor: 3KW

Noise Level: 71dB

Crimp Range :10-87mm

Crimp force :3800KN

Opening with dies :+30mm

Complete Opening :155mm

Master Die Length :65mm

Standard Dies :15,18,20,23,26,29,37,46,51 ,63mm

Dimensions :780mm*710mm*1400mmNet Weight:730kg
Packaging :880*810*1500mm
Gross Weight :830kg
Voltages :220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz
Capacity :2wb:2'' max.
4ws: 2” max.
6ws: 1” max.

Technical Features:

The BNT81Bcrimping machine is a cost-effective alternative for single-piece production.

BNT81B-models (precision, durability, force and ease of use), the 50model is totally unmatched in it's own class.

AVAILABLE DIE SETS

Product Code	Description	N°	Crimp Range(mm)	Die Length (mm)	For Hose ID(mm)
1	Die set n. 15 - length 60mm	15	15-19	65	6
2	Die set n. 19 - length 60 mm	18	19-23	65	8
3	Die set n. 23 - length 60 mm	20	23-26	65	10
4	Die set n. 26 - length 60 mm	23	26-31	65	13
5	Die set n. 31 - length 70 mm	26	31-36	65	16
6	Die set n. 36 - length 70 mm	29	36-41	65	19
7	Die set n. 41 - length 75 mm	37	41-47	65	25
8	Die set n. 47 - length 80 mm	46	47-55	78	32
9	Die set n. 55 - length 80 mm	51	55-60	78	38
10	Die set n. 60 - length 80 mm	63	60-69	78	51

Detailed Images

OUR RANGE OF BNT81B POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 380t

OUR RANGE OF BNT81B POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 500t

OUR RANGE OF BNT81B POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 500t

Related Products

$1000 - $ 3500 Pieces

1 Pieces (MOQ)

$1000 - $ 3000 Pieces

1 Pieces (MOQ)

$1000 - $ 2000 Pieces

1 Pieces (MOQ)

Certificate

BNTFLEX

Packing&Shipping

Company Introduction

Dalian Barnett Flex Hydraulics Co., Ltd., Zhonghua West Road, Ganjingzi District, Dalian, Covers An Area Of 50 Acres And Has A Mechanical Processing Workshop, Finished Product Debugging Workshop, Mold Workshop, New Product Trial Center, Finished Product Warehouse, Spare Parts Warehouse, Million, Annual Production Capacity Of 5000 Sets.

More Than 60 Employees, Of Which More Than 50% Of Professional And Technical Personnel, Passed The ISO9001 CE Quality System Certification, Has Made The Import-Export Rights And The EU Set Up CE Certification, Is Currently The Domestic Industry One Of The Larger Enterprises.

The Main Products Of The Company Include Over 50 Series Of Nine Series Of Over 50 Models, Including Crimping Machine, Pipe Cutting Machine, Stripping Machine, Pipe Loading Machine, Marking Machine, Buttoning Machine, Pressure Testing Machine, Hose Washing Machine And Burst Test Bench. XAC, Jizhong Energy, CSR Group, The Beijing-Shanghai High-Speed Railway, The Construction Of The Railway Company Should Provide Equipment Support. The Products Are Exported To More Than 30 Countries And Regions Such As Britain,Spain, Portugal, Ukraine, Russia, The United States, Mexico, Brazil, Argentina, Saudi Arabia, Thailand, Indonesia And So On.

The Company Will Continue To Uphold The Concept Of Innovation And Development, Product Refinement, Fine, The Chinese Barnett Into A World Of Barnett.

Our Services & Strength

Modern hydraulics applications require robust fluid connector solutions with guaranteed long lasting performance. To that end, BNTFLEX Hydraulics offers a complete range of hoses, fittings and assembly equipment which are designed to work seamlessly together. This harmonised approach allows us to guarantee the quality and performance of hose assemblies in a way that our competitors simply cannot match.
