Quick Details
-
Production Capacity:
-
850T/H
-
Power:
-
159KW, 129KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Dimension(L*W*H):
-
7800*9000*3800MM
-
Product name:
-
Asphalt Paver
-
Application:
-
Straight Road Paving
-
Key words:
-
Road Laying Machine
-
Type:
-
Vibratory Road Paver
-
Name:
-
Road Roller Paver
-
Model:
-
TPJ-1.5
-
Spray medium:
-
Emulsified Asphalt
-
Keywords:
-
Concrete Paver Lay Pavers Concrete Pavers
-
Rubber Paver:
-
Feeling TPJ-2.5 Paver Machine
Quick Details
-
Max. Paving Thickness:
-
300MM
-
Weight:
-
24 kg
-
Engine Brand:
-
IMPORT
-
Production Capacity:
-
850T/H
-
Power:
-
159KW, 129KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Dimension(L*W*H):
-
7800*9000*3800MM
-
Product name:
-
Asphalt Paver
-
Application:
-
Straight Road Paving
-
Key words:
-
Road Laying Machine
-
Type:
-
Vibratory Road Paver
-
Name:
-
Road Roller Paver
-
Model:
-
TPJ-1.5
-
Spray medium:
-
Emulsified Asphalt
-
Keywords:
-
Concrete Paver Lay Pavers Concrete Pavers
-
Rubber Paver:
-
Feeling TPJ-2.5 Paver Machine

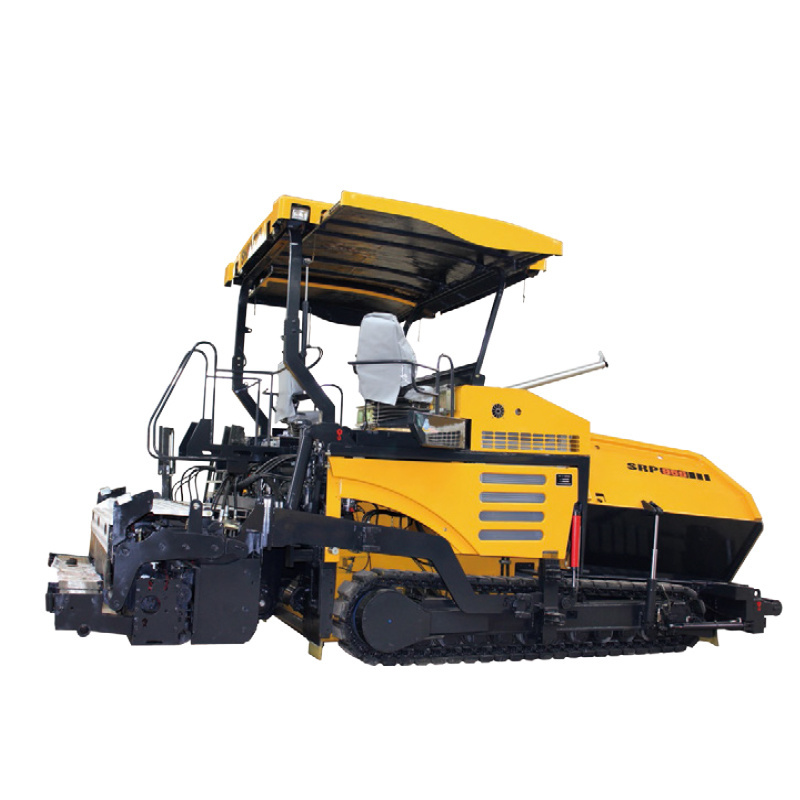

SHANTUI Machine Asphalt Paver SRP90S With Cheap Price Hot Sale
Contact way
Products Description
power system
* SRP90S PLUS matches BF6M1013-22T3 (or Shangchai SC9DK220.1G3) turbocharged diesel engine with low noise, low emissions and
meets China III emissions. It has strong power, reliability and durability, and strong oil adaptability.
Walking system
* The independent left and right microcomputer-controlled hydraulic system is adopted, which has good low-speed stability and
straightness when driving;
* Adopt four-wheel and one-belt of famous domestic brands, lengthen the track and drive independently. The original imported
walking reducer has high reliability, large driving torque, and uniform speed, ensuring the evenness and compactness of the
paving.
Control System
* Based on the imported EPEC controller, a new generation of Shantui paver intelligent operation management system is developed.
The paving speed is automatically controlled at a constant speed, the driving paving speed can be freely switched, and it has
an automatic fault diagnosis function to monitor the vehicle;
* Adopt microcomputer high-precision intelligent leveling system, equipped with electronic leveling for horizontal and vertical
slopes, with high leveling accuracy and strong anti-interference performance;
* Adopting high-brightness color LCD display and ergonomic imported joystick, with high reliability and controllability;
* The control panel is clearly arranged. All the component switches are arranged according to the functional logic, which is easy
to operate and has a good human-computer interaction interface.
Screed
* SRP90S PLUS series paver is equipped with hydraulic telescopic electric heating screed, single vibration, frequency stepless
adjustable;
* The multi-slider structure enhances the overall rigidity of the screed, the wide wear-resistant bottom plate, good operation
stability and high operation quality.
Material distribution system
* Four sets of left and right conveying and distributing systems with full hydraulic transmission are adopted. The material level
adopts ultrasonic sensor control technology to ensure full proportion uniform feeding;
* Large diameter and large pitch spiral material distribution structure, strong material distribution capacity, low speed
material distribution and small segregation;
* The left and right spiral feeders can be driven separately, and the height of the feeder from the ground is infinitely
adjustable to meet the paving needs of different thicknesses.
Receiving device
* Longer and wider large-capacity hopper, the productivity is better than similar models;
* The spring self-damping push roller can greatly reduce the impact of the material cart on the paver and make the operation
quality higher.
Driving environment
* The operation platform can slide left and right and adjust up and down to meet the actual needs of different robots;
* The left and right seats can be rotated to the outside of the fuselage, and the streamlined bridge structure allows the
operator to have a good view of the material distribution channel, and can always observe the material level in front of the
screed;
* The glass fiber reinforced plastic canopy is easy to extend and retract on both sides of the large ceiling, which protects the
operator from the interference of sunlight and rain, and the ergonomically designed ladders and handrails provide a comfortable
driving environment for the operator
* With the help of a manual hydraulic pump, the cab and exhaust tailpipe can be raised and lowered at the same time, improving
the maneuverability and comfort of the operator.
Maintenance
* The engine cover and left and right side doors that are opened as a whole, all working pumps, control valves, and filter
elements are within easy reach, making maintenance points easy to access;
* Centralized lubricating system automatically delivers grease to the scraper conveyor and screw distributor bearings.
* SRP90S PLUS matches BF6M1013-22T3 (or Shangchai SC9DK220.1G3) turbocharged diesel engine with low noise, low emissions and
meets China III emissions. It has strong power, reliability and durability, and strong oil adaptability.
Walking system
* The independent left and right microcomputer-controlled hydraulic system is adopted, which has good low-speed stability and
straightness when driving;
* Adopt four-wheel and one-belt of famous domestic brands, lengthen the track and drive independently. The original imported
walking reducer has high reliability, large driving torque, and uniform speed, ensuring the evenness and compactness of the
paving.
Control System
* Based on the imported EPEC controller, a new generation of Shantui paver intelligent operation management system is developed.
The paving speed is automatically controlled at a constant speed, the driving paving speed can be freely switched, and it has
an automatic fault diagnosis function to monitor the vehicle;
* Adopt microcomputer high-precision intelligent leveling system, equipped with electronic leveling for horizontal and vertical
slopes, with high leveling accuracy and strong anti-interference performance;
* Adopting high-brightness color LCD display and ergonomic imported joystick, with high reliability and controllability;
* The control panel is clearly arranged. All the component switches are arranged according to the functional logic, which is easy
to operate and has a good human-computer interaction interface.
Screed
* SRP90S PLUS series paver is equipped with hydraulic telescopic electric heating screed, single vibration, frequency stepless
adjustable;
* The multi-slider structure enhances the overall rigidity of the screed, the wide wear-resistant bottom plate, good operation
stability and high operation quality.
Material distribution system
* Four sets of left and right conveying and distributing systems with full hydraulic transmission are adopted. The material level
adopts ultrasonic sensor control technology to ensure full proportion uniform feeding;
* Large diameter and large pitch spiral material distribution structure, strong material distribution capacity, low speed
material distribution and small segregation;
* The left and right spiral feeders can be driven separately, and the height of the feeder from the ground is infinitely
adjustable to meet the paving needs of different thicknesses.
Receiving device
* Longer and wider large-capacity hopper, the productivity is better than similar models;
* The spring self-damping push roller can greatly reduce the impact of the material cart on the paver and make the operation
quality higher.
Driving environment
* The operation platform can slide left and right and adjust up and down to meet the actual needs of different robots;
* The left and right seats can be rotated to the outside of the fuselage, and the streamlined bridge structure allows the
operator to have a good view of the material distribution channel, and can always observe the material level in front of the
screed;
* The glass fiber reinforced plastic canopy is easy to extend and retract on both sides of the large ceiling, which protects the
operator from the interference of sunlight and rain, and the ergonomically designed ladders and handrails provide a comfortable
driving environment for the operator
* With the help of a manual hydraulic pump, the cab and exhaust tailpipe can be raised and lowered at the same time, improving
the maneuverability and comfort of the operator.
Maintenance
* The engine cover and left and right side doors that are opened as a whole, all working pumps, control valves, and filter
elements are within easy reach, making maintenance points easy to access;
* Centralized lubricating system automatically delivers grease to the scraper conveyor and screw distributor bearings.
Performance Parameters
|
MODEL:
|
SRP90S plus
|
SRP95M plus
|
|
Base Paving Width (m)
|
3-5.7
|
2.5
|
|
Maximum Paving Width (m)
|
9
|
9.5
|
|
Maximum Paving Thickness (mm)
|
350
|
350
|
|
Paving Speed (m/min)
|
0-18
|
0-18
|
|
Travel Speed (km/h)
|
0-2.4
|
0-2.4
|
|
Hopper Capacity (t)
|
15
|
15
|
|
Theoretical Productivity (th)
|
850
|
850
|
|
Camber Adjustment(%)
|
-1 - +3
|
-1 - +3
|
|
Climbing Ability (%)
|
20
|
20
|
|
Vertical Flatness (mm/3m)
|
<2
|
<2
|
|
Horizontal Slope Error (%)
|
±0.02
|
0.02
|
|
Density Distribution Error (%)
|
<5
|
<5
|
|
Heating Method
|
Gas heating
|
Gas heating
|
|
Lubrication Method
|
Centralized Lubrication
|
|
|
Diesel Engine
|
BF6M1013EC
|
BF6M1013EC/
Shangchai SC8D190G2B1 |
|
Power 0utput
|
148
|
148/140
|
|
RPM
|
2300
|
2300
|
|
Screed
|
AVS9030D
|
DVM9525Q
|
|
Vibration Speed (r/min)
|
0-1470
|
0-1470
|
|
Vibration Distance (mm)
|
4
|
3 ,5,7.9
|
|
Secondary Vibration Distance (mm)
|
-
|
0,3,6,9,12 .
|
|
Vibration Frequency (Hz)
|
0-50
|
0-50
|
|
Machine Weight (t)
|
24
|
22
|
|
Maximum Operating Weight (t)
|
29
|
30
|
|
External Dimensions LxWxH(mm)
|
7800x9000x3800
|
7300x9500x3800
|
|
Transport Dimensions LxWxH(mm)
|
7800x3000x3360
|
7300x3000x3360
|
