Quick Details
-
Dimension(L*W*H):
-
2100*1100*850mm
-
Weight:
-
750 KG, 750kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Tree Branch Shredder
-
Keywords:
-
Wood Chopping Machine
-
Color:
-
Red
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Waste Wood Branch
-
Application:
-
Crush Branches
-
Usage:
-
Wood Shredder Cutting Wood Branch
-
Name:
-
Wood Chipper Chips Making Machine
Quick Details
-
Use:
-
shredding wood, Cutting Wood
-
Place of Origin:
-
HeNan
-
Brand Name:
-
YiBao
-
Dimension(L*W*H):
-
2100*1100*850mm
-
Weight:
-
750 KG, 750kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Tree Branch Shredder
-
Keywords:
-
Wood Chopping Machine
-
Color:
-
Red
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Waste Wood Branch
-
Application:
-
Crush Branches
-
Usage:
-
Wood Shredder Cutting Wood Branch
-
Name:
-
Wood Chipper Chips Making Machine
30 kw wood chipper wood chipper shredder for tractor plastic barrel wood chipper shredder machine tree branch crusher machine

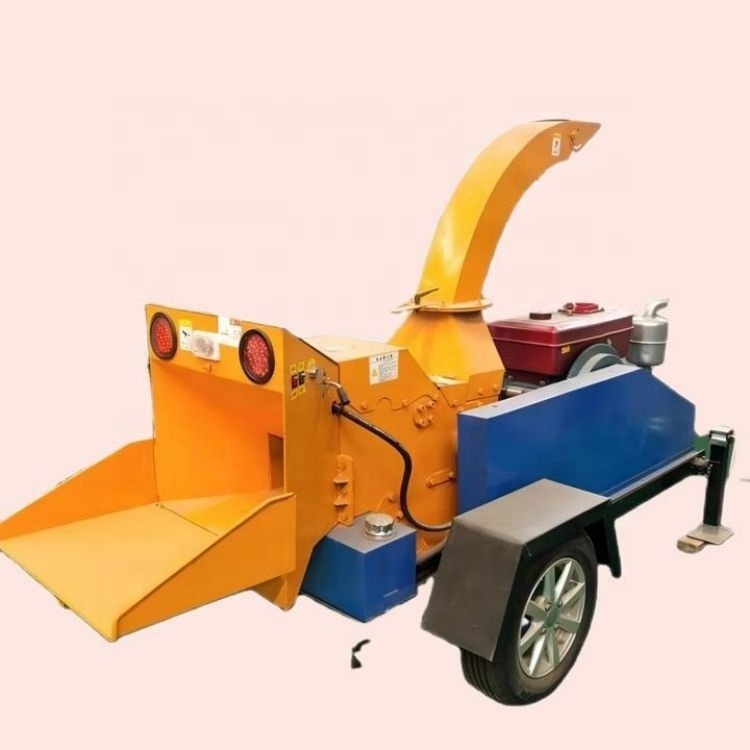

The wood shredder is equipped with a high-power diesel engine, which is reasonable in design, convenient in walking, high in working stability, convenient in operation, and saves manpower.Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.Blades, as wear parts of the wood chippers, it maintains high strength while also with high toughness, not break and curl during work.Clutch. When the transmission load exceeds the torque that can be transmitted by the friction, the clutch friction plate will automatically slip, preventing transmission overload and protecting the engine.
It is mainly used to crush branches and forks cut by pruning trees, whether branches or trunks. The equipment is simple and formed at one time. After chipping, end product be used as raw material of high-density board, particleboard, paper industry, etc.
The wood branch shredder is simple to operate,one-time molding, after crushing, it can be used as mulch, wood bed base, organic fertilizer, edible fungus, biomass power generation, and can also be used for the production of high density board, particle board, paper industry, etc.
After crushing, it can be directly sprayed into the transportation vehicle, and the volume can be reduced by 80%-90% after crushing, which not only reduces the transportation cost, but also saves manpower, material resources, energy saving and emission reduction. The wood-specific branch crusher produced by our company can be driven by a diesel engine, and is equipped with tires, platforms, and traction devices. It is flexible and can crush branches anytime and anywhere. It is very convenient for field operations or roadside work.
The wood wood branch shredder is newly developed and produced and suitable for woods, orchards, forestry, highway tree maintenance, parks, golf courses and other departments.
Specification
|
Model
|
6130 Diesel powered
|
6145 Diesel powered
|
|
Production capacity
|
1-2T/h
|
4-6T/h
|
|
Dimensions
|
L2300*W1300*H1800mm
|
L3200*W1700*H2400mm
|
|
Power
|
25/32/55hp diesel engine
|
82/102hp diesel engine
|
|
Start-up method
|
Electric start
|
Electric start
|
|
Rotation speed of main machine
|
2900r/min
|
2200r/min
|
|
Diameter of feed rollers
|
280mm
|
500mm
|
|
Feeding roller power
|
Hydraulic motor |
Hydraulic motor |
|
Diameter of knife roller
|
300mm
|
500mm
|
|
Number of blades
|
Movable knife 3 pieces Static knife 1 piece
|
Movable knife 4 pieces Static knife 1 piece
|
|
Blade length
|
300mm
|
230mm
|
|
Cell specification
|
12V 105aH |
24V 105aH
|
|
Generator power
|
800W
|
800W
|
|
Diesel tank volume
|
20L |
300A power switch
|
|
Hydraulic oil tank volume
|
25L
|
95L
|
|
Feeding gear
|
In-Reverse-Stop 3-speed manual control
|
In-Reverse-Stop 3-speed manual control
|
|
Inlet size
|
700*500mm
|
1000*740mm
|
|
Feed size
|
300*250mm
|
450*380mm
|
|
Wheel size
|
13" aluminium alloy wheels
|
15" aluminium alloy wheels
|
|
Tyre size
|
165/70r13
|
215/75r15
|
|
Throttle adjustment
|
Tail light, feed light, foldable hand jack, adjustable towing height
|
Tail light, feed light, foldable hand jack, adjustable towing height
|
|
Discharge opening direction
|
360 degree quick adjustment device, height adjustment of discharge nozzle
|
Tail light, feed light, foldable hand jack, adjustable towing height
|
Henan YiBao Machinery was founded in 2018,located in Zhengzhou,Henan Province, with convenient transportation,such as free ways high-speed railways,airports etc. We maily produce pellet machine ,wood crusher machine,shredder machine,feed processing machine ,dryer ,biomass pellet making machine, briquette charcoal making machine and other related supporting equipment,We have introduced advanced German production technology and cooperated with many domestic universities in research and development.
Now we have a research and development team of more than 20 persons to provide customers with customized various scale production lines.We have a professional sales team(35 persons ),They can design and provide suitable equipment or production lines to meet the customers"actual needs.We also have young salesmen with fluent oral English to serve customers by online videos. Our products have been approved CE SGS ISO9000 etc .And they have been currently exported to Europe and Africa and other regions and countries.The quality and after-sales services make us a good reputation in the machinery industry. We had have and will have been committed to protecting the environment and improving the ecosystem as our purpose and principle.
FAQ
Q1: How does your factory do regarding quality control ?
A1: Quality is priority.We always regard great importance to quality controlling from the very small thing (even a samll screw we will choose the best quality) from the beginning.
Q2: What is your after-sales service ?
A2: Our after-sales service is first class.We have a powerful team to help you solve problems.The warranty is one year and if the machine is damaged by natural not by human,we can send the new parts to you for free.
Q3: Does the machine power voltage meet buyer's factory power source ?
A3: We can do it as your request.
Q4: Can you offer some video of the wood chipper machine making machine ?
A4: Yes,of course.Besides,we can help you to have your products to make it if you are available to send us some of your product and then record a video for your reference.
