Full plastic shell
waterprooflevel IP67/IP68
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WESTSAM
-
Model Number:
-
10087
-
Product name:
-
NMEA 2000 5 Pin Waterproof Connectorr
-
Temperature Range:
-
-25℃ to +85℃
-
Rated Voltage:
-
250V AC/DC
-
Protection level:
-
IP67 IP68 Waterproof
-
Contact material:
-
Brass Gold Plated
-
Color:
-
black
-
Insertion/withdrawal cycles:
-
> 100 times
-
Pin:
-
5P
Quick Details
-
Type:
-
DIN
-
Application:
-
Power
-
Gender:
-
Female/Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WESTSAM
-
Model Number:
-
10087
-
Product name:
-
NMEA 2000 5 Pin Waterproof Connectorr
-
Temperature Range:
-
-25℃ to +85℃
-
Rated Voltage:
-
250V AC/DC
-
Protection level:
-
IP67 IP68 Waterproof
-
Contact material:
-
Brass Gold Plated
-
Color:
-
black
-
Insertion/withdrawal cycles:
-
> 100 times
-
Pin:
-
5P
Specification
|
item
|
NMEA 2000 marine connector Network male to female Molded cable Waterproof connector T power adapter M12 5 Pin connector
|
|
Contacts
|
5 Pin
|
|
Protection level
|
IP67 IP68
|
|
Rated voltage
|
250V AC/DC
|
|
Wire gouge
|
AWG16
|
|
Mating cycles
|
>100 times
|
|
Contact resistance
|
≤5 mΩ
|
|
Contact material
|
Brass Gold Plated
|
|
Temperature Range
|
-25℃ to +85℃
|
1.NMEA 2000 (National Marine Electronics Association) cables and connectors are industry standard for data communications among ship board electric devices.
2.NMEA 2000 Cable and Connectors (Cordsets, Tees, Terminators, Power taps, Bulk Cable, FieldConnectors, Bulk Head Feed-thrus, Multiport, Diagnostic Tools.
3.NMEA 2000 drop cable,NMEA2000 T-connectors,NMEA 2000 male terminator and NMEA2000 female terminator

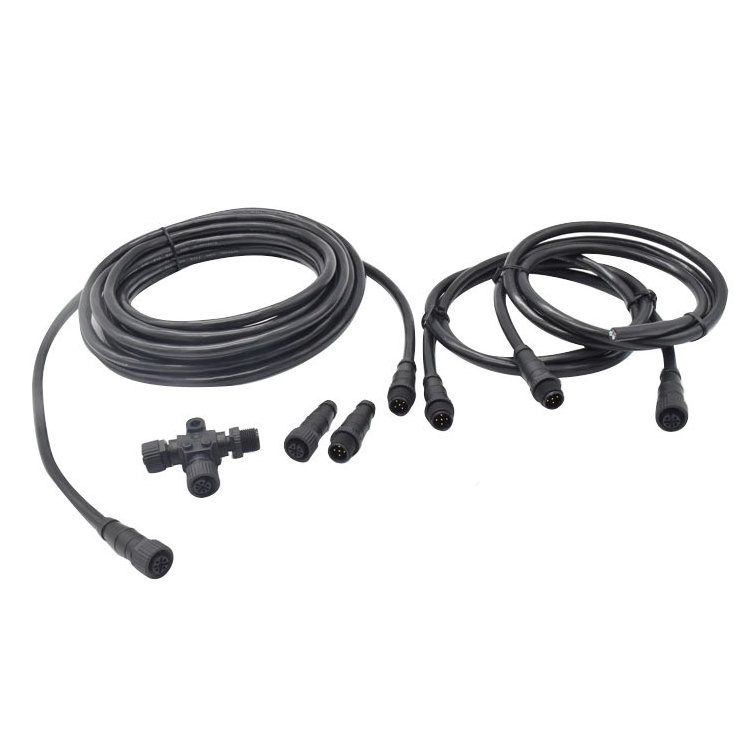

Product show
Mostly used in marine
Long life cycles Salt resistant
