Quick Details
-
Input:
-
1Channel H DMI Input+3.5mm
-
Input Resolution:
-
Up to 4K@30fps
-
RECORDING CAPABILITY:
-
TF card: 256G
-
Audio compression:
-
Dolb y AC3
-
Video compression:
-
H.265/HEVC main profile, H.264/AVC baseline/main/high profile
-
Structure:
-
B frame(IBBP) GOP structure
-
Protocol:
-
HLS(M3U8), HTTP/UDP/RTSP, RTMP, O NVIF
-
OEM:
-
Support customized services
-
Certification:
-
ROHS,CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-8900AU-EC
-
Input:
-
1Channel H DMI Input+3.5mm
-
Input Resolution:
-
Up to 4K@30fps
-
RECORDING CAPABILITY:
-
TF card: 256G
-
Audio compression:
-
Dolb y AC3
-
Video compression:
-
H.265/HEVC main profile, H.264/AVC baseline/main/high profile
-
Structure:
-
B frame(IBBP) GOP structure
-
Protocol:
-
HLS(M3U8), HTTP/UDP/RTSP, RTMP, O NVIF
-
OEM:
-
Support customized services
-
Certification:
-
ROHS,CE
Detailed Image

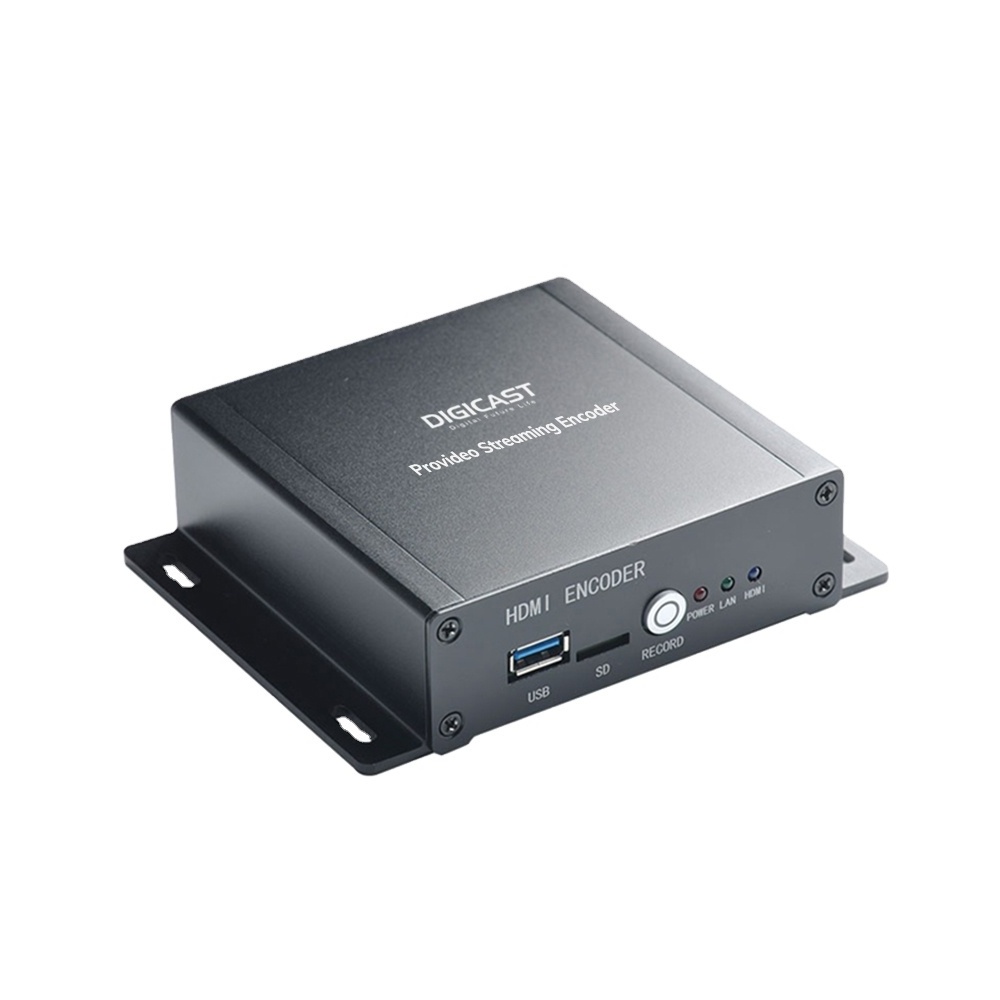

4K UHD HEVC ProVideo Streaming Encoder
APPLICATONS
* Organizations, Conferences and Worship
* Agencies, TV & Radio and Sports
* Government, Education and Music
* Digital Signage Project
* Remote Video Conference
* Video Monitoring
Specification
|
SPECIFICATIONS
|
|
|
|
VIDEO ENCODING
|
Video compression: H.265, H.264/AVC High Profile Level 4.0
H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE GOP Structure: IBBP, IPPP Video input: 1*H DMI input Input Resolution: Up to 4K@30fps(3840*2160) Output Resolution: 640*360~3840*2160 (customizable) Bitrate: 16kbps~32Mbps, CBR/VBR Video frame rate: 5- 60fps OSD: Text, Image Video pre-processing: Noise reduction, Sharpen, Filtering |
|
|
RECORDING CAPABILITY
|
TF card: 256G
USB port: connect to external storage 10T |
|
|
AUDIO ENCODING
|
Audio compression: Dolby AC3,AAC / AAC+ / AAC++ / MP3, G.711
Audio bit rate: 12Kbps~320Kbps Sampling rate: 44.1KHz, 48.0KHz Audio input: 1*HDMI embedded audio, 1*3.5mm line in, support audio gain |
|
|
IP STREAMING OUTPUT
|
Transport protocol: TS over IP output, HLS, RTSP, HTTP, UDP and RTMP protocol
For each H DMI to IP output, supporting output 4 groups TS over IP streams (for each group the HLS, HTTP, RTSP, UDP and RTMP protocol all enabled). with 4 different resolutions (up to 4K@30fps) and 4 different bitrates to meet different size screen and different bandwidth condition. Connector: RJ45, 1000M |
|
|
GENERAL OPTIONS
|
|
|
|
SYSTEM
|
Configuration Interface: web-based UI
Upgraded: via network Connector: RJ45, 1000M Ethernet interface. |
|
|
PHYSICAL AND POWER
|
Power supply: 12V~1A
Consumption: 5W Operating temperature: 0~50 Dimensions: 106mm(W)*60mm(D)*15mm(H) Weight: 0.2kg(including accessories) |
|
OVERVIEW
In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms.
DMB-8900AU UHD 4K HEVC ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 4K@30fps. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth. DMB-8900NU UHD accepts 1*HDMI input, then output 4 groups TS over IP in H.265 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. This 4K Encoder has widely applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application
.
FEATURES
* Video Input: 1*channel HDMI in
* Video resolution up to Full HD 4K @30fps* Capable of Recording locally or external storage by USB port.
* Output 4 groups IP streams with different resolution, bitrate and protocol
* Video compression: H.265/HEVC main profile, H.264/AVC baseline/main/high profile
* Audio compression: Dolby AC3 , AAC / AAC+ / AAC++ / MP3, G.711
* B frame (IBBP) GOP structure
* Video bitrate Control: CBR/VBR 16Kbps ~ 32Mbps
* Video packaging: A mode: FFMPEG, B mode: VLC
* Transmission: 100M/1000M for transmission/configuration(RJ45 Duplex network port).
* Support Text/image OSD, image overlay
* Support automatically obtain IP (DHCP), support One-key recovery, upgrade and remote maintenance
* Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
* Support build-in or external audio input, support left and right sound channel, Support audio gain, turn volume individually
* Support encoding without video signal
* Take effect immediately when applied the settings, no need to restart.
* Support encoding without video signal
* Take effect immediately when applied the settings, no need to restart.
* Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
* Switchable of audio output mode: Left, right and Stereo
* Configurable of Multi-bitrate, Multi-resolution, Multi-protocol
* Providing HLS, RTSP, HTTP, UDP and RTMP protocol
Compatible with ONVIF Network Video Protocol
* Any IOS browsers (iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
*Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(such as VLC).
* System supports WINDOWS * XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
*Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
* Web-based management
Application &Diagram
UHD HEVC ProVideo Streaming Encoder ( HDMI in )
Video Compression up to full HD 4K@30fps
Video Input : One channel HDMI/SDI For option
Praise From Customers
Send Inquiry
About Us
FAQ
1.What the difference between H.264 and H.265 encoder format?
Mostly, it depends on the Server you use. If your terminal decoding could support H.265 decoding, we recoomend you the one by H.265. Because compared to the H.264, H.265 encoder format able to transfer more programs in limited bandwidth.
2.Can this support HLS protocol?
Yes, it’s compatible with HLS(M3U8), HTTP/UDP/RTSP, RTMP, ONVIF, RTMP protocols.
3.Which input do you have?
It depends on the products. For this economic series, we have HD interface, SDI input only.
4. Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
5. How and where can I set up the device? Is by software?
You could set up the encoder by Web-management. It's very easy for operation. You can add a logo and subtitle. We also will send a User Manual with encoder. And our technical will to be of help.
6. How is the delay?
The delay of this device is about 200 ms. If you find the delay is more than that, could be caused by the internet or decoder.
7.I am a Cameraman, Which device is better for me?
If you need move the camera often, and will use it in the outdoor, we recommend you the one with WIFI, Battery and 4G/3G function.It’s super suitable for the Mobile Live Streaming Event, is that DMB-8900N Ultra. Please note, the WIFI and Battery function is banded, can’t be separated.
8.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
9.How long will I receive my product?
All our products are in stock. It will take about 3-7 work days after we get the payment. Because before shipping, we need to all test the device.
Mostly, it depends on the Server you use. If your terminal decoding could support H.265 decoding, we recoomend you the one by H.265. Because compared to the H.264, H.265 encoder format able to transfer more programs in limited bandwidth.
2.Can this support HLS protocol?
Yes, it’s compatible with HLS(M3U8), HTTP/UDP/RTSP, RTMP, ONVIF, RTMP protocols.
3.Which input do you have?
It depends on the products. For this economic series, we have HD interface, SDI input only.
4. Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
5. How and where can I set up the device? Is by software?
You could set up the encoder by Web-management. It's very easy for operation. You can add a logo and subtitle. We also will send a User Manual with encoder. And our technical will to be of help.
6. How is the delay?
The delay of this device is about 200 ms. If you find the delay is more than that, could be caused by the internet or decoder.
7.I am a Cameraman, Which device is better for me?
If you need move the camera often, and will use it in the outdoor, we recommend you the one with WIFI, Battery and 4G/3G function.It’s super suitable for the Mobile Live Streaming Event, is that DMB-8900N Ultra. Please note, the WIFI and Battery function is banded, can’t be separated.
8.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
9.How long will I receive my product?
All our products are in stock. It will take about 3-7 work days after we get the payment. Because before shipping, we need to all test the device.
