Quick Details
-
Voltage:
-
AC 110V-220V Customized, 50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Model Number:
-
TOB-JS100L-LX
-
Usage:
-
battery electric
-
Dimensions(L*W*H):
-
800*700*350mm
-
Weight:
-
86 KG
-
Keywords:
-
high quality electric roller machine/roller machine
-
Roller surface hardness:
-
HRC62
-
Roller temperature:
-
RT-130℃, adjustable and digital display
-
Usage on:
-
electrode press
Quick Details
-
Condition:
-
New
-
Plate Type:
-
battery electrode
-
Color & Page:
-
Other
-
Voltage:
-
AC 110V-220V Customized, 50HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Model Number:
-
TOB-JS100L-LX
-
Usage:
-
battery electric
-
Dimensions(L*W*H):
-
800*700*350mm
-
Weight:
-
86 KG
-
Keywords:
-
high quality electric roller machine/roller machine
-
Roller surface hardness:
-
HRC62
-
Roller temperature:
-
RT-130℃, adjustable and digital display
-
Usage on:
-
electrode press

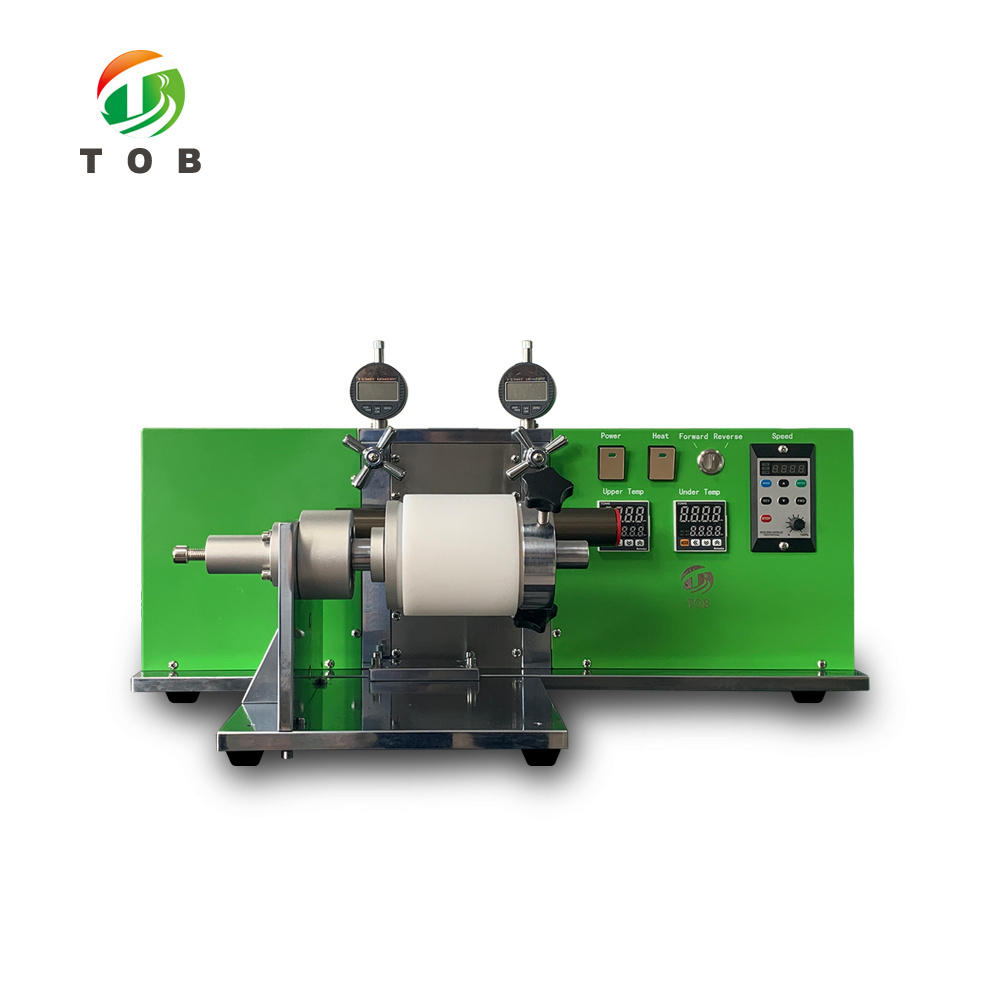

Laboratory Used Small Lithium Cell Battery Electrode Roll To Roll Heat Roller Press Calender Machine
Products Description
1 TOB-JS100L-LX Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C
2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C
|
Model
|
Roll to Roll Hot Roller Press Machine TOB-JS100L-LX
|
|
Source voltage
|
AC 110V-220V Customized, 50HZ
|
|
Power
|
800W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Roller temperature
|
RT-130℃, adjustable and digital display
|
|
Roller diameter
|
2 - Φ96mm
|
|
Roller surface hardness
|
HRC62
|
|
Roller finish degree
|
>0.8
|
|
Rolling press thickness
|
0-2mm, Adjustable
|
|
Working speed
|
0-40mm/s
|
|
Rolling press width
|
Max 100mm(Customizable)
|
|
Dimension(L*W*H)
|
800*700*350mm
|
|
Weight
|
About 86kg
|
|
Package size
|
940*840*460mm
|
|
Package weight
|
About 115kg
|
Details Images
1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs
3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs
