- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Extralink
-
Model Number:
-
Enyo
-
Place of Origin:
-
GUA
-
Interface:
-
8x Gigabit Ethernet Ports
-
Standard:
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12G
-
Brand Name:
-
Extralink
-
Model Number:
-
Enyo
-
Place of Origin:
-
GUA
-
Interface:
-
8x Gigabit Ethernet Ports
-
Standard:
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az

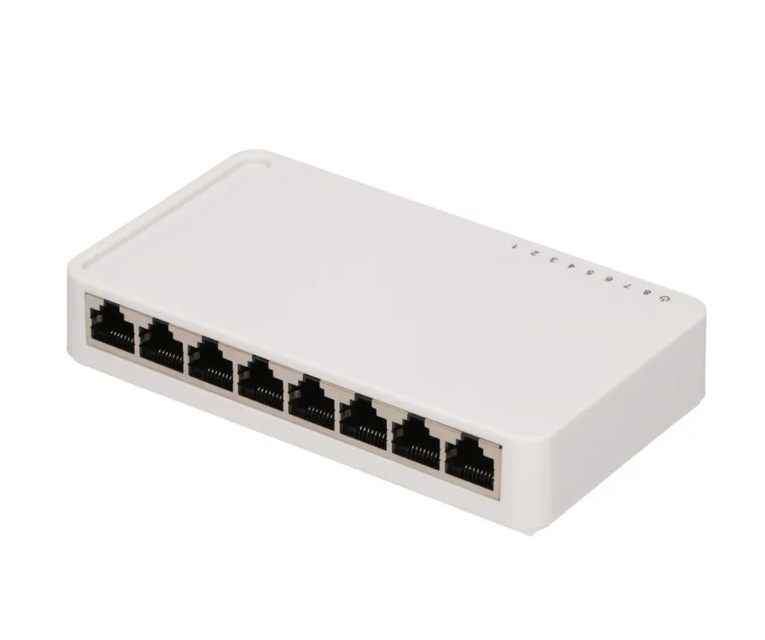

Extralink ENYO EX-SG1008D 8-port switch with 10/100/1000 Mbps Gigabit throughput
Extralink Enyo is an 8-port switch with a Gigabit 10/100/1000 Mbps throughput. The device works in network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az and full duplex and half-duplex, with flow control in IEEE 802.3x standard
Features:
· Single-chip 8-port gigabit non-blocking switch architecture
· Embedded 8-port 10/100/1000Base-T PHY
· Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
· Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
· Supports 9216-byte jumbo packet length forwarding at wire speed
Technical Parameter
|
Model
|
Extralink ENYO
|
|
Chipset
|
RTL8370N
|
|
Port number
|
8 port 10/100M/1000M Auto MDI-MDIX RJ45 |
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
|
|
Network media
|
10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP |
|
Data rate
|
10/100M/1000M
|
|
Forwarding rate
|
10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps, 1000Mbps/1488000pps |
|
LED Indicator
|
10/100M/1000Mbps(Link/Act),Power |
|
Dimension
|
159*71*30mm
|
|
Power Input
|
DC5V/1000mA
|
|
Power Consumption
|
Max4.5W
|
|
Environment
|
Operating Temperature: 0°C-50°C
|
