Quick Details
-
Model Number:
-
TJ-CIP, 100x100mm -- 3000x8000mm
-
Material:
-
HT200-300
-
Accuracy:
-
0~3 Grade
-
Operation Mode:
-
CNC machining, precision grinding, hand scraping
-
Item Weight:
-
customized
-
Capacity:
-
customized
-
Product name:
-
Cast Iron Surface Plate
-
MOQ:
-
1pcs
-
Accessories:
-
Stand
-
Hardness:
-
HB170-240
-
Certification:
-
ISO, CE
-
Color:
-
Blue
-
Working temperature:
-
(20±5) ℃
-
Package:
-
Wooden Box
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TJ
-
Model Number:
-
TJ-CIP, 100x100mm -- 3000x8000mm
-
Material:
-
HT200-300
-
Accuracy:
-
0~3 Grade
-
Operation Mode:
-
CNC machining, precision grinding, hand scraping
-
Item Weight:
-
customized
-
Capacity:
-
customized
-
Product name:
-
Cast Iron Surface Plate
-
MOQ:
-
1pcs
-
Accessories:
-
Stand
-
Hardness:
-
HB170-240
-
Certification:
-
ISO, CE
-
Color:
-
Blue
-
Working temperature:
-
(20±5) ℃
-
Package:
-
Wooden Box
Product Paramenters
Standard Size Range: 100mm*100mm-3000mm*8000mm
We can make other sizes on the basis of your actual conditions
We can make other sizes on the basis of your actual conditions
|
Type(mm)
|
Flatness Tolerance（um)
|
|
|
|
|
||||
|
|
0
|
1
|
2
|
3
|
Final machining
|
||||
|
100x100
|
4
|
8
|
16
|
|
|
||||
|
200x100
|
5
|
10
|
20
|
|
|
||||
|
200x200
|
5
|
10
|
20
|
|
|
||||
|
300x200
|
6
|
12
|
24
|
|
|
||||
|
300x300
|
6
|
12
|
24
|
|
|
||||
|
400x300
|
6
|
12
|
24
|
|
|
||||
|
400x400
|
6
|
12
|
24
|
|
|
||||
|
500x500
|
7
|
14
|
28
|
|
|
||||
|
600x500
|
7
|
14
|
28
|
|
|
||||
|
800x600
|
8
|
16
|
32
|
80
|
|
||||
|
900x600
|
8
|
16
|
32
|
80
|
|
||||
|
1000x1000
|
10
|
20
|
39
|
96
|
|
||||
|
1200x1000
|
|
20
|
39
|
96
|
|
||||
|
...
|
|
|
|
|
|
||||
|
8000x3000
|
|
|
|
382
|
570
|
||||
Products Description

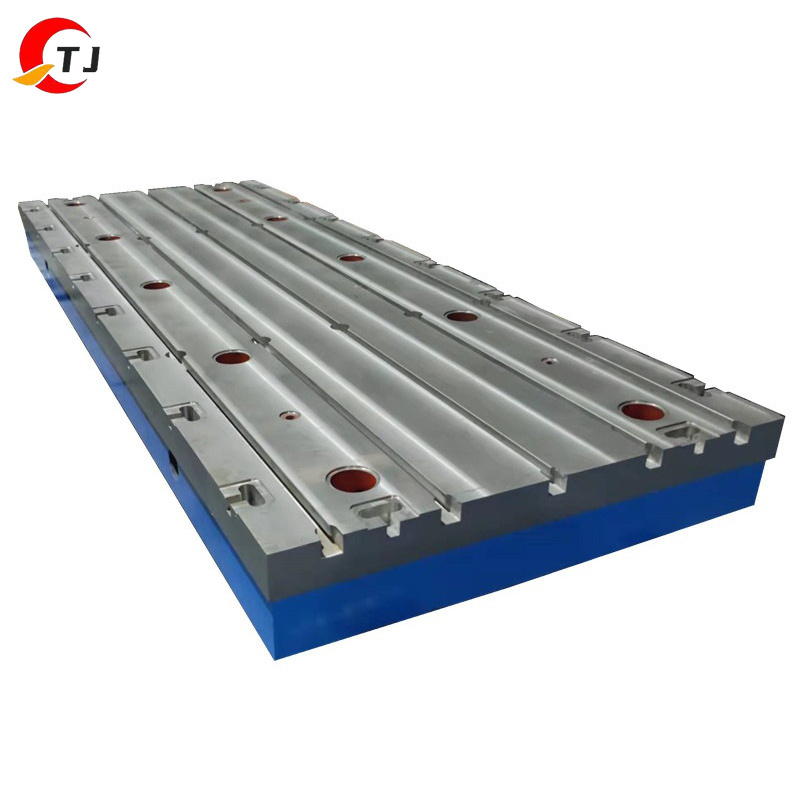

Cast Iron Surface Plate:
1.The cast iron platform is referred to as the platform, which is also called the cast iron plate.
2.That is the basic plane reference measuring tool for workpiece inspection, scribing, debugging equipment, assembly, welding and riveting
3.Cast iron platforms are classified into 0, 1, 2, 3
or fine machining
according to accuracy levels.
4.Generally, Class 0, Class 1, and Class 2 plates are used as flat plates for inspection platforms. Platforms for Class 3 are used for scribing, assembly, welding, and riveting.
5.A
ccessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc
Exquisite craft
The
platform
adopts scraping technology,
precision grinding, hand scraping
, and the accuracy is controllable.
Stable precision
The raw material of the cast iron surface table is the high-strength cast iron HT200-300 whose surface hardness is of HB170-240. After the two manual handling such as 600℃ to 700℃ artificial annealing as well as 2 to 3 years of natural aging, the T slot base plate perfectly resists abrasion and has stable precision.
Customer project and product photos
Widely applied in the manufacturing and processing of machines, machining equipments, railway and tracks, automobiles, motorcycles, ships, pressurized containers, sheet metals, classis and cabinets, testing and measurement instruments and steel constructions.
