Quick Details
-
Weight:
-
customized as per steam boiler
Quick Details
-
Place of Origin:
-
SHN
-
Brand Name:
-
ZhongDe
-
Dimension(L*W*H):
-
customized as steam boiler
-
Weight:
-
customized as per steam boiler

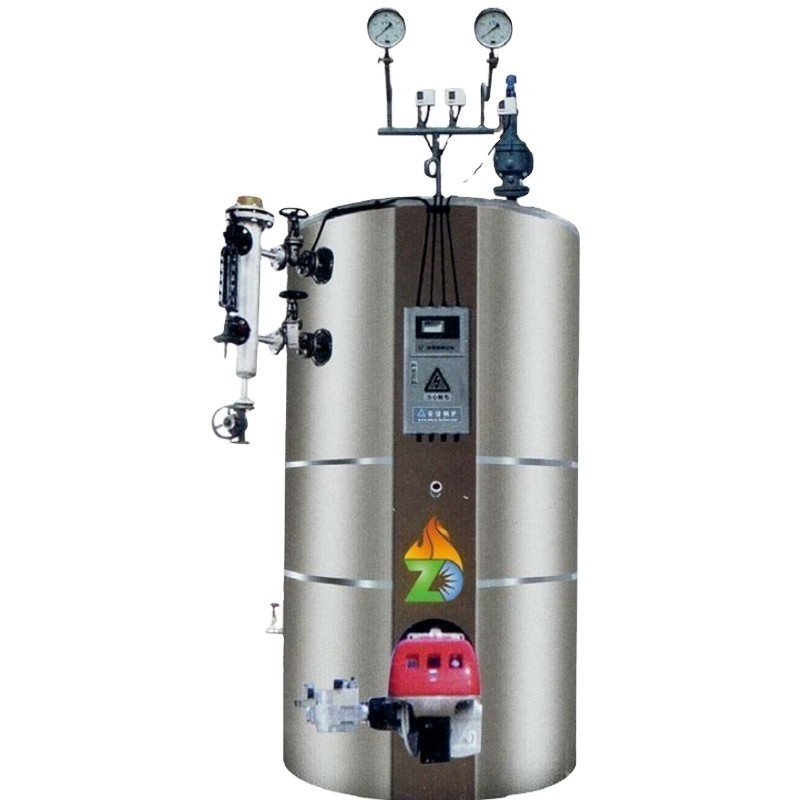

LHS boiler is a patented product with vertical three return side blowing structure; The fire and smoke pipes in complete water package are under the boiler water; Small land occupation, fast pressure rise, intelligent automatic control; Stable operation, energy saving, environmental protection, safety and reliability.
Product Description
Specification
|
Model
|
LHS 0.1-0.7-Y.Q
|
LHS 0.2-0.7-Y.Q
|
LHS 0.3-0.7-Y.Q
|
LHS 0.5-0.7-Y.Q
|
LHS 0.7-0.7-Y.Q
|
||
|
Rated evaporation（t/h）
|
0.7
|
1.4
|
2.1
|
2.8
|
4.2
|
||
|
Design efficiency (%)
|
92.5
|
|
93.1
|
|
93.2
|
||
|
Water capacity (L)
|
360
|
790
|
940
|
1400
|
1600
|
||
|
Length（mm）
|
900
|
920
|
1050
|
1480
|
1780
|
||
|
Width（mm）
|
900
|
920
|
1050
|
1480
|
1780
|
||
|
Height（mm）
|
1720
|
2120
|
2320
|
2350
|
2420
|
||
|
Natural gas consumption（Nm³/h）
|
8.7
|
16.8
|
24.4
|
40.3
|
60.8
|
||
|
Light oil (Kg/h)
|
7.2
|
13.6
|
20.3
|
33.2
|
50.2
|
||
|
Urban gas (Nm³/h)
|
18.5
|
35.7
|
51.8
|
79.8
|
128.2
|
||
|
Model
|
LHS 1-1.0-Y.Q
|
LHS 1.5-1.0-Y.Q
|
LHS 2-1.0-Y.Q
|
LHS 3-1.0-Y.Q
|
||
|
Rated evaporation（t/h）
|
1
|
1.5
|
2
|
3
|
||
|
Design efficiency (%)
|
93.5
|
|
94.2
|
|
||
|
Water capacity (L)
|
2200
|
2450
|
3000
|
3200
|
||
|
Length（mm）
|
2000
|
2200
|
2200
|
2400
|
||
|
Width（mm）
|
2000
|
2200
|
2200
|
2400
|
||
|
Height（mm）
|
2680
|
3000
|
3000
|
3100
|
||
|
Natural gas consumption（Nm³/h）
|
82.1
|
122.8
|
165
|
240
|
||
|
Light oil (Kg/h)
|
67
|
101.4
|
134
|
198
|
||
|
Urban gas (Nm³/h)
|
174
|
260.1
|
350
|
521
|
||
Boiler Characteristics
Packing & Delivery
Selling Units:Single item
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
