Factory Price Automatic Fruit Juice Jelly Pudding Milk Ice Cream Yoghurt Yogurt Cup Filling Sealing Packing Machine

Factory Price Automatic Fruit Juice Jelly Pudding Milk Ice Cream Yoghurt Yogurt Cup Filling Sealing Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: 99.8%

Packaging Type:: Cups

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: Fostream

Dimension(L*W*H):: 3000*800*1700 (mm)

Weight:: 500 KG

Processing Types:: Normal Pressure Filling

Function:: Filling Sealing

Suitable for:: Water, Fruit Juice, Yogurt, Pudding

Production Capacity:: 3500-4000 cups/hour

Filling Volume:: 50-350ml

Air Consumption:: 0.8m3/min

Machine Material:: Stainless steel SUS 304

Cup Material:: PP Cup

Film Material:: PET / VMPET / PP / Aluminum

Film Design:: Free Design

Quick Details

Machinery Capacity:: 4000BPH, 8000BPH, 6000BPH, 2000BPH

Packaging Material:: Plastic

Filling Material:: Milk, Water, Juice, Jelly

Filling Accuracy:: 99.8%

Packaging Type:: Cups

Voltage:: 220V

Place of Origin:: Guangdong, China

Brand Name:: Fostream

Dimension(L*W*H):: 3000*800*1700 (mm)

Weight:: 500 KG

Processing Types:: Normal Pressure Filling

Function:: Filling Sealing

Suitable for:: Water, Fruit Juice, Yogurt, Pudding

Production Capacity:: 3500-4000 cups/hour

Filling Volume:: 50-350ml

Air Consumption:: 0.8m3/min

Machine Material:: Stainless steel SUS 304

Cup Material:: PP Cup

Film Material:: PET / VMPET / PP / Aluminum

Film Design:: Free Design

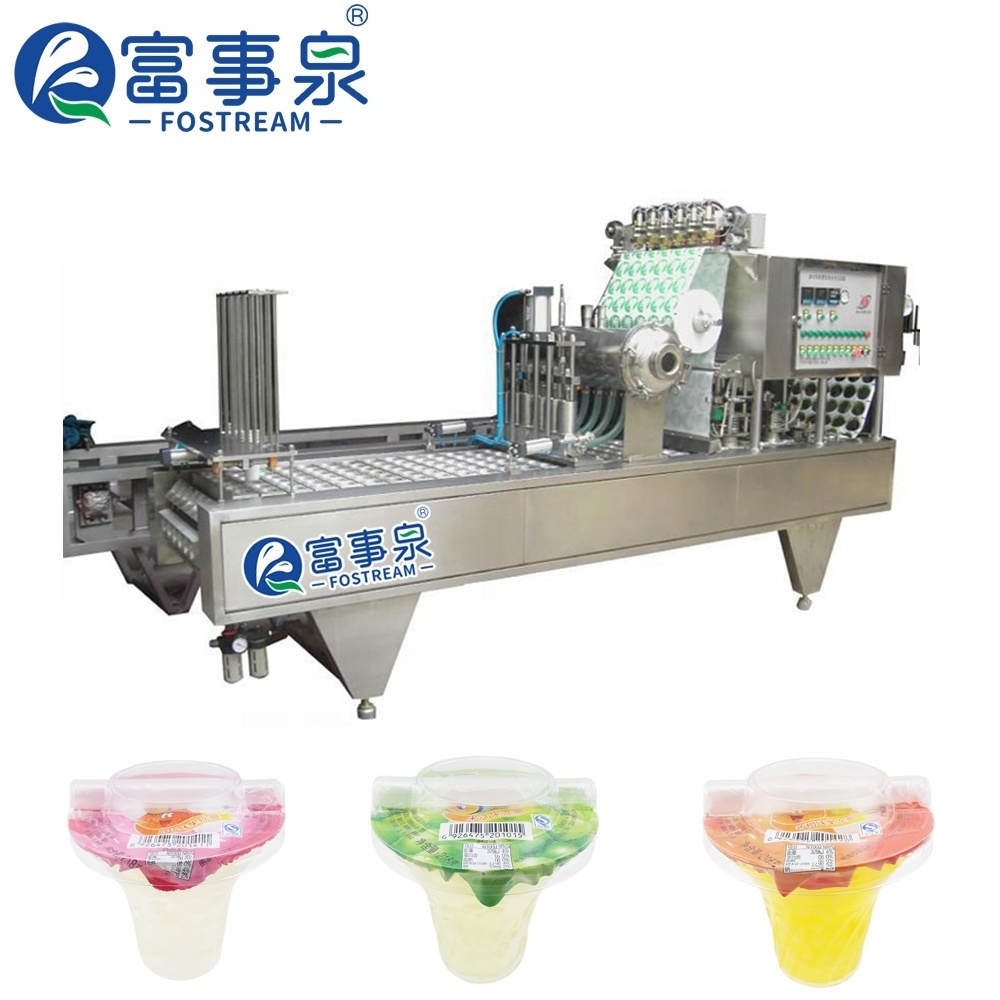

Automatic Fruit Juice Jelly Pudding Ice Cream Milk Yogurt Cup Filling Sealing Machine

Products Description

1.BRIEF INTRODCUTION

Automatic mineral water cup filling and sealing machine is a multifunctional high-speed filling machine specially designed for liquid or semi-liquid to be filled and sealed.High quality, high stability, long service life.

Suit for Packing Milk, Soy Milk, Fruit Juice , Jelly , Pudding , Honey, Mineral Water and so on.

2.MAIN FUNCTION

1. auto cup dropping (cups should be stacked, but can’t stick together) 2. auto filling water 4. date printing 5. UV sterilization 6. photocell 7. twice sealing 8. auto film cutting 9. wasted film recycling 10. auto cup exiting

3. Features:

1. Advanced design, reasonable structure, reliable performance; 2. Fully automatic operation, adjustable production speed, easy operation, safety, increase productivity, reduce labor costs; 3. Photoelectric sensor track ensure accurate sealing; 4. Twice sealing, sealing pressure can be adjusted according to customer requirements as easy or difficult to tear, reflecting greater humanization design; 5. Seal firmly and smooth flawless; 6. Customize equipment according to the customer requirements and other accessibility features; 7. Configuration: this machine uses the channel steel, welded together, after 3 times anti-rust treatment, outsourcing 304 stainless steel. Exposed parts are made of rust-proof handle.

4.Cup Water Filling Production Line:

Main Technical Parameters

Model	FS-2 Cups	FS-4 Cups	FS-6 Cups	FS-8 Cups
Capacity	1800-2000 Cups/H	3800-4000 Cups/H	5800-6000 Cups/H	7800-8000 Cups/H
Voltage	220V-380V/50-60HZ,three phase
Power	1.5 KW	3.5 KW	5 KW	6 KW
Sealing width	190mm	360mm	540mm	Double360mm
Dimension(LxWxH)	2800x500x1700mm	3000x800x1700mm	3500x1100x1700mm	4000x1500x1700mm
Weight	350 KG	500 KG	750 KG	1000 KG

Details Images

FS-2 Cups Filling Sealing Machine (1800-2000 Cups/H)

FS-4 Cups Washing Filling Sealing Machine (3800-4000 Cups/H)

FS-6 Cups Washing Filling Sealing Machine (5800-6000 Cups/H)

Free Film Design

Customer Feedback

Real Scene Shoots

18 Years Alibaba Verified Gold Supplier.

25 Years Production Experience.

125 Online Transactions Completed. 12,500 Square Meters Standard Factory.

304,000 USD Alibaba Trade Assurance.

1,750,000 USD Online Transaction Volume. 7800000 Yuan RMB Registered Capital.

ISO 9001:2008 Quality Management System.

CE Certified & TUV SUD Capability Assessment.

Transaction History Verified

Certification Verified

FAQ

8 professional sales engineers and technicians are waiting for your inquiry.

Q1: Can you provide more information about this product, and quote the best price?
A: Sure, please contact us via any methods showed on this page, and we will send our product catalog, company profile for your reference.What's more, we will customize detailed offer according to your specific requirements.

Q2: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.

Q3: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.

Q4: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.

Q5: How long of your warranty?
A: Regarding warranty, normally we offer 1 year warranty/3000 hours warranty, and we also offer lifetime maintenance.

Q6. Do you accept OEM order?
A: Yes, we have strong design team and technical team. Therefore we can also accept OEM and customized order with special
requirements.
