- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
380V
-
Power:
-
9kw-12kw, 9KW-12KW/380V.50Hz
-
Weight:
-
570 KG
-
Dimension(L*W*H):
-
1680*1080*2100mm
-
Product Name:
-

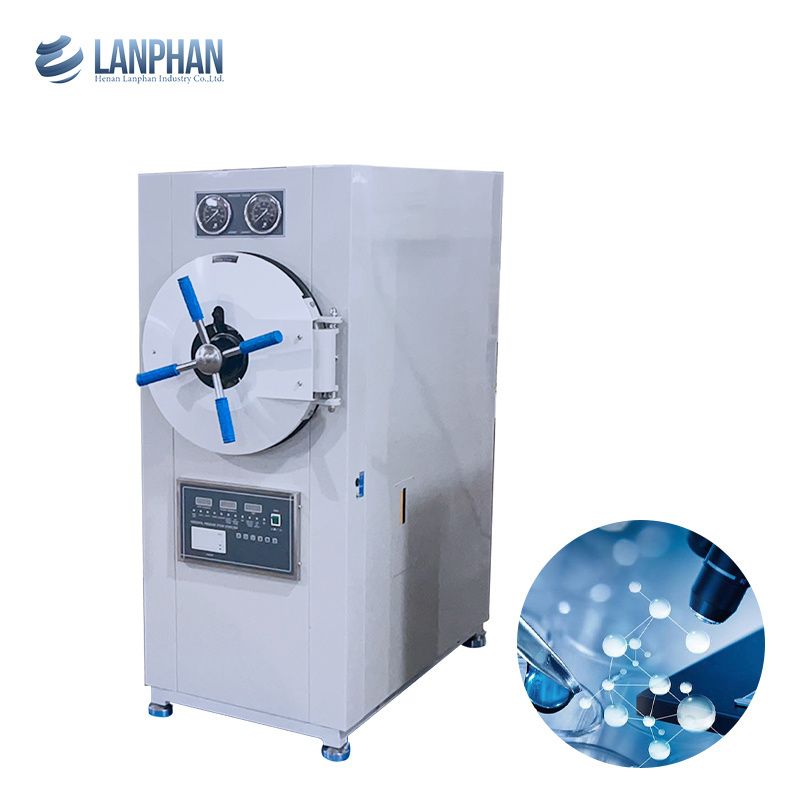

Horizontal autoclave
-
Model technical data:
-
WS-YDB
-
Sterilizing Chamber volume:
-
150L-280L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
40℃~134℃
-
Time for sterilization:
-
0~99min
-
Time for drying:
-
0~99min
-
Heat average:
-
≤±2℃
Quick Details
-
Applicable Industries:
-
Mushroom Growing, Cannned Food, clinical experiments, Mushroom Substrate, solution culture medium, Research institutes
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
microcomputer control system, steam generator, power supply system, shell, Sterilizing Chamber
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
380V
-
Power:
-
9kw-12kw, 9KW-12KW/380V.50Hz
-
Weight:
-
570 KG
-
Dimension(L*W*H):
-
1680*1080*2100mm
-
Product Name:
-
Horizontal autoclave
-
Model technical data:
-
WS-YDB
-
Sterilizing Chamber volume:
-
150L-280L
-
Working pressure:
-
0.22MPa
-
Working temperature:
-
134℃
-
Adjustment of temperature:
-
40℃~134℃
-
Time for sterilization:
-
0~99min
-
Time for drying:
-
0~99min
-
Heat average:
-
≤±2℃
|
Technical data |
WS-150YDB |
WS-200YDB |
WS-280YDB |
|
Sterilizing chamber volume |
150L φ440×1000mm |
200L φ515×1000mm |
280L φ600×1000mm |
|
working pressure |
0.22 MPa |
||
|
working temperature |
134℃ |
||
|
Adjustment of temperature |
105 ℃ - 134℃ |
||
|
Time of sterilization |
0-99 min |
||
|
Time of drying |
0-99 min |
||
|
Heat average |
≤± 2℃ |
||
|
Power |
9KW/380V 50Hz |
9KW/380V 50Hz |
12KW/380V 50Hz |
|
Dimension |
1400×650×1600 |
1400×750×1700 |
1520×910×1900 |
|
Transport dimension |
1560×820×1820 |
1560×910×1880 |
1680×1080×2100 |
|
G.W/N.W |
430/340 KG |
436/350 KG |
570/462 KG |
