Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
SP21
-
Product name:
-
IP68 Waterproof SP21 2 3 4 5 7 9 12 Pin Automotive Wire Connector
-
Pin number:
-
2 3 4 5 6 7 9 pin
-
Connection Type:
-
Threaded Coupling
-
Body material:
-
Nylon PA66
-
Insulator:
-
PPS
-
Contact:
-
Brass with gold plated
-
Temperature:
-
-40℃-+85℃
-
Mating cycle:
-
≥500times
-
Keywords:
-
SP21 Connector
Quick Details
-
Type:
-
Waterproof aviation connector
-
Application:
-
Automotive
-
Gender:
-
Male / Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
SP21
-
Product name:
-
IP68 Waterproof SP21 2 3 4 5 7 9 12 Pin Automotive Wire Connector
-
Pin number:
-
2 3 4 5 6 7 9 pin
-
Connection Type:
-
Threaded Coupling
-
Body material:
-
Nylon PA66
-
Insulator:
-
PPS
-
Contact:
-
Brass with gold plated
-
Temperature:
-
-40℃-+85℃
-
Mating cycle:
-
≥500times
-
Keywords:
-
SP21 Connector

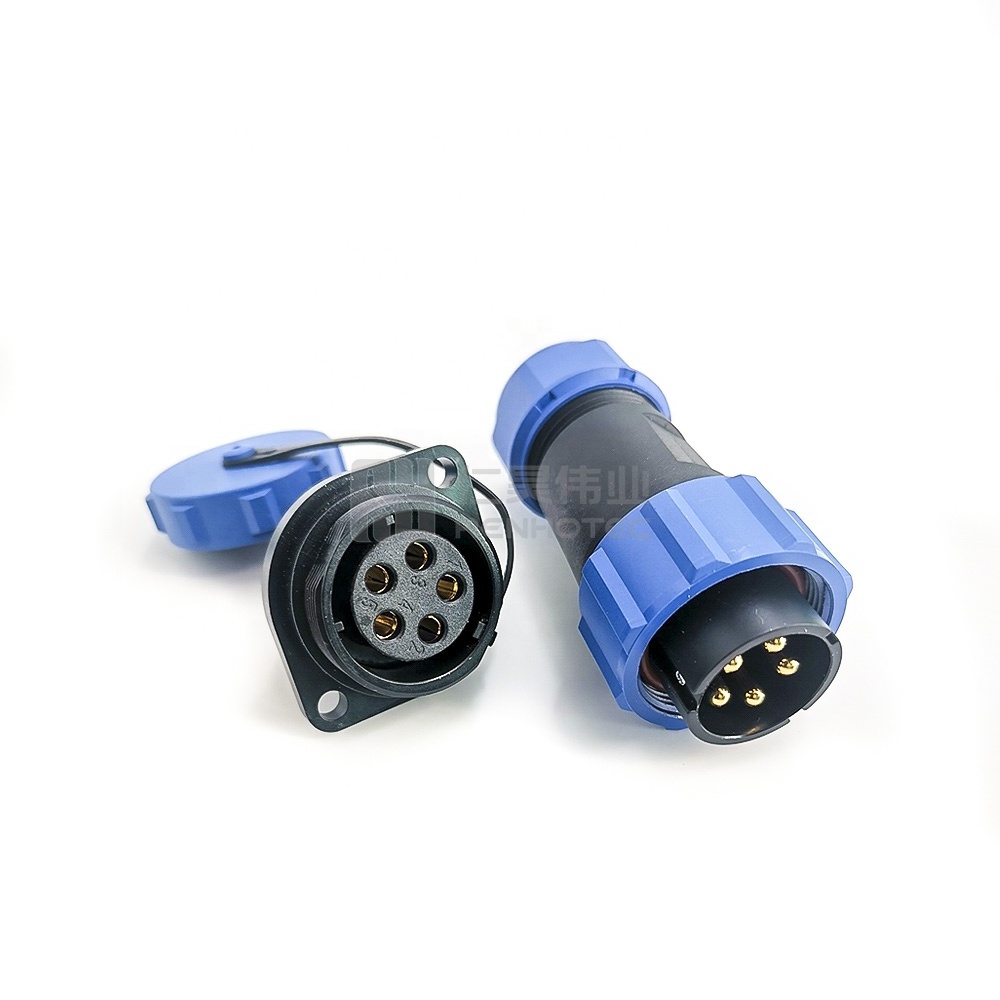

IP68 Waterproof SP21 2 3 4 5 7 9 12 Pin Automotive Wire Connector
1. SP Series of threaded IP68 Connectors are perfect for your application.This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments.
2. When choosing a female connector, this version should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.
3. With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All models are highly reliable and excellent quality.
| IP Rating | IP68 |
| Coupling | Threaded |
| No.of Contact |
SP11: 2-5 ; SP13: 2-9 SP17: 2-10 ; SP21: 2-12 SP29: 2-26 |
Material and Spec
| Coupling | Threaded |
| Shell Material | PC, Nylon66, fire resistance: V-0 |
| Insert Material | PPS, max temperature 260℃ |
| Contact Material | Brass with Gold Plating |
| Termination |
Solder: SPl3 , SPl7 , SP21 , SP29 Crimp: SPl7, SP21 , SP29 Screw: SP21, SP29 (Ø2.5 , Ø 3 , Ø 3.5mm contact) |
| Cable outer diameter range |
SP11: 4 - 6.5 MM
SP13: 4 - 6.5 MM ; 5 - 8 MM SP17: 6 - 10 MM SP21: 4.5 - 7 MM ; 7 - 12 MM SP29 : 13 - 16 MM
|
| IP Rating | IP68 |
| Mating Cycle | 500 |
| Temperature Range | -40~+85 ℃ |
| I nsulation R esistance | 2000 MΩ |
SP13
SP21
