Quick Details
-
Size:
-
11700*2500*3700
-
Place of Origin:
-
Shandong, China
-
Name:
-
fuel tank trailer
-
Condition:
-
Brand new or second hand optional
-
Tires:
-
Tri-angle,Double star or Bridgestone optional
-
Relay emergency valve:
-
with
-
fire extinguisher:
-
with
-
pump:
-
for loading and unloading optional
-
compartments:
-
1-6
-
Hose box:
-
PVC 2PCS
-
Test:
-
Hydrostatic test 35kpa
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60000 Litres
-
Brand Name:
-
Girder trailer
-
Size:
-
11700*2500*3700
-
Place of Origin:
-
Shandong, China
-
Name:
-
fuel tank trailer
-
Condition:
-
Brand new or second hand optional
-
Tires:
-
Tri-angle,Double star or Bridgestone optional
-
Relay emergency valve:
-
with
-
fire extinguisher:
-
with
-
pump:
-
for loading and unloading optional
-
compartments:
-
1-6
-
Hose box:
-
PVC 2PCS
-
Test:
-
Hydrostatic test 35kpa
Product Description

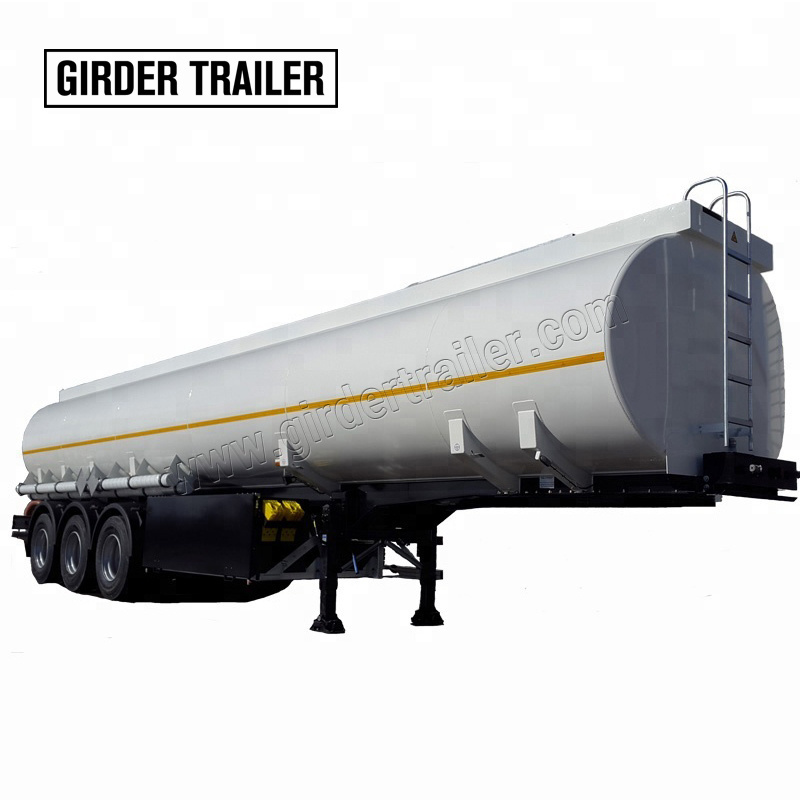

Petrol transporting fuel oil tanker semi trailer,Liquid tank truck semi trailer for sale
QINGDAO SHIYUN TRAILER CO.,LD
,is a professional
China Trailer manufacturer with brand “girder trailer”.
Tank trailers
are used to transport liquids and gas in large volumes.The trailers came in different models because of the wide variety of
liquefied loads.
are used to transport liquids and gas in large volumes.The trailers came in different models because of the wide variety of
liquefied loads.
Features:
1.Can design different volume of tank body.
2.Tank material can be carbon steel,stainless steel,aluminum for different kinds of liquid transporting.
3.Can design different compartments to transport same or different liquid.
4.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight liquid.
5.Man hole 500mm can be simple one or European type with release valve,spill-proof sensor and oil vapor recovery valve..
6.All rooms in the tank have baffle plates to reduce the fluctuations of the liquid.
7.The bottom valve is generally installed in an oil tanker’s outlet. In case of a crash in an accident, the valve can cut off the
pipeline in 5 seconds.The quick cut off also prevents leakage and explosion in an accident.
1.Can design different volume of tank body.
2.Tank material can be carbon steel,stainless steel,aluminum for different kinds of liquid transporting.
3.Can design different compartments to transport same or different liquid.
4.Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight liquid.
5.Man hole 500mm can be simple one or European type with release valve,spill-proof sensor and oil vapor recovery valve..
6.All rooms in the tank have baffle plates to reduce the fluctuations of the liquid.
7.The bottom valve is generally installed in an oil tanker’s outlet. In case of a crash in an accident, the valve can cut off the
pipeline in 5 seconds.The quick cut off also prevents leakage and explosion in an accident.
Specification
|
Type
|
Model
|
Payload (Litre)
|
Usage
|
|
Oil tank semi trailer
|
GT0301GYY
|
20000L~60000L
|
Gasoline,diesel oil,kerosene,jet fuel
|
|
Bitumen/asphalt tank trailer
|
GT0201GLY
|
20000L~50000L
|
Tar,Bitumen ,asphalt
|
|
Chemical liquid tank trailer
|
GT0301GHY
|
20000L~60000L
|
Acids ,Alkalies,Hydrogen peroxide,ammonium hydroxide
|
|
Flammable liquid tank trailer
|
GT0301GRY
|
20000L~60000L
|
Crude oil, pentane, petroleum ether,alcohol
|
|
Liquid food tank trailer
|
GT0301GYS
|
20000L~60000L
|
Edible oil,beer,milk,water,juice,ice cream,sugar water
|
|
Item
|
specifications
|
Remark
|
|
|
Material
|
Carbon steel/stainless steel/Aluminum
|
Aluminum /Stainless steel optional
|
|
|
Axles
|
2/3/4 * 13ton capacity
|
OCT,FUWA,BPW or other Brand
|
|
|
Suspension
|
Mechanical suspension
|
Air /bogie suspension optional
|
|
|
Leaf spring
|
10pcs
|
Air bag lifting optional
|
|
|
Tire
|
12R22.5 ,11R22.5, 315/80R22.5, 385/65R22.5
|
Size and brand optional
|
|
|
Rim
|
9.00-22.5,8.25-22.5,11.75-22.5
|
Other size optional
|
|
|
King pin
|
2’’/3.5’’ bolt type,SAE standard
|
Welding on type optional
|
|
|
Landing gear
|
28 Ton two speed
|
JOST or equivalent brand
|
|
|
Tank body
|
5mm
|
Other thickness optional
|
|
|
End plate
|
6mm
|
|
|
|
Man hole
|
500mm
|
|
|
|
Discharge valve
|
Ball valve
|
|
|
|
Discharge pipe
|
4'' rubber hose
|
|
|
|
Braking system
|
Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional
|
|
|
|
Electrical
|
LED light , 7 ways ,24V
|
|
|
|
Painting
|
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
|
|
|
|
Accessory
|
Tool box,oil tank,spraying system optional
|
|
|
Above data can be customized per your local regulation and requirement.
