Quick Details
-
Voltage:
-
Custom made
-
Power:
-
70Kw
-
Dimension(L*W*H):
-
24000X1200X2400MM
-
Weight:
-
5000KG
-
Application fields:
-
food factory
-
Machinery Capacity:
-
100-150kg/h
-
Machinery Function:
-
candy making machine
-
Raw material:
-
gelatin, sugar, glucose, sugar, glucose, pectin, gelatin
-
Motor:
-
ABB
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service
-
SYSTEM:
-
servo driven
-
Heating source:
-
steam or electrical heating
-
Filling speed:
-
45-60n/min
-
Certification:
-
CE
-
PLC:
-
MITSUBISHI
-
Candy shape:
-
Custom designed
Quick Details
-
Model Number:
-
SGDQ150
-
Brand Name:
-
CANDY
-
Place of Origin:
-
Shanghai, China
-
Voltage:
-
Custom made
-
Power:
-
70Kw
-
Dimension(L*W*H):
-
24000X1200X2400MM
-
Weight:
-
5000KG
-
Application fields:
-
food factory
-
Machinery Capacity:
-
100-150kg/h
-
Machinery Function:
-
candy making machine
-
Raw material:
-
gelatin, sugar, glucose, sugar, glucose, pectin, gelatin
-
Motor:
-
ABB
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service
-
SYSTEM:
-
servo driven
-
Heating source:
-
steam or electrical heating
-
Filling speed:
-
45-60n/min
-
Certification:
-
CE
-
PLC:
-
MITSUBISHI
-
Candy shape:
-
Custom designed
Professional confectionery and chocolate machine manufacturer
**More than 20 years experience, focus on confectionery and chocolate machines research
**Sufficient manufacturing capability and strong technician team for service
**Wide range clients reference all around the world
**Wide range clients reference all around the world
**

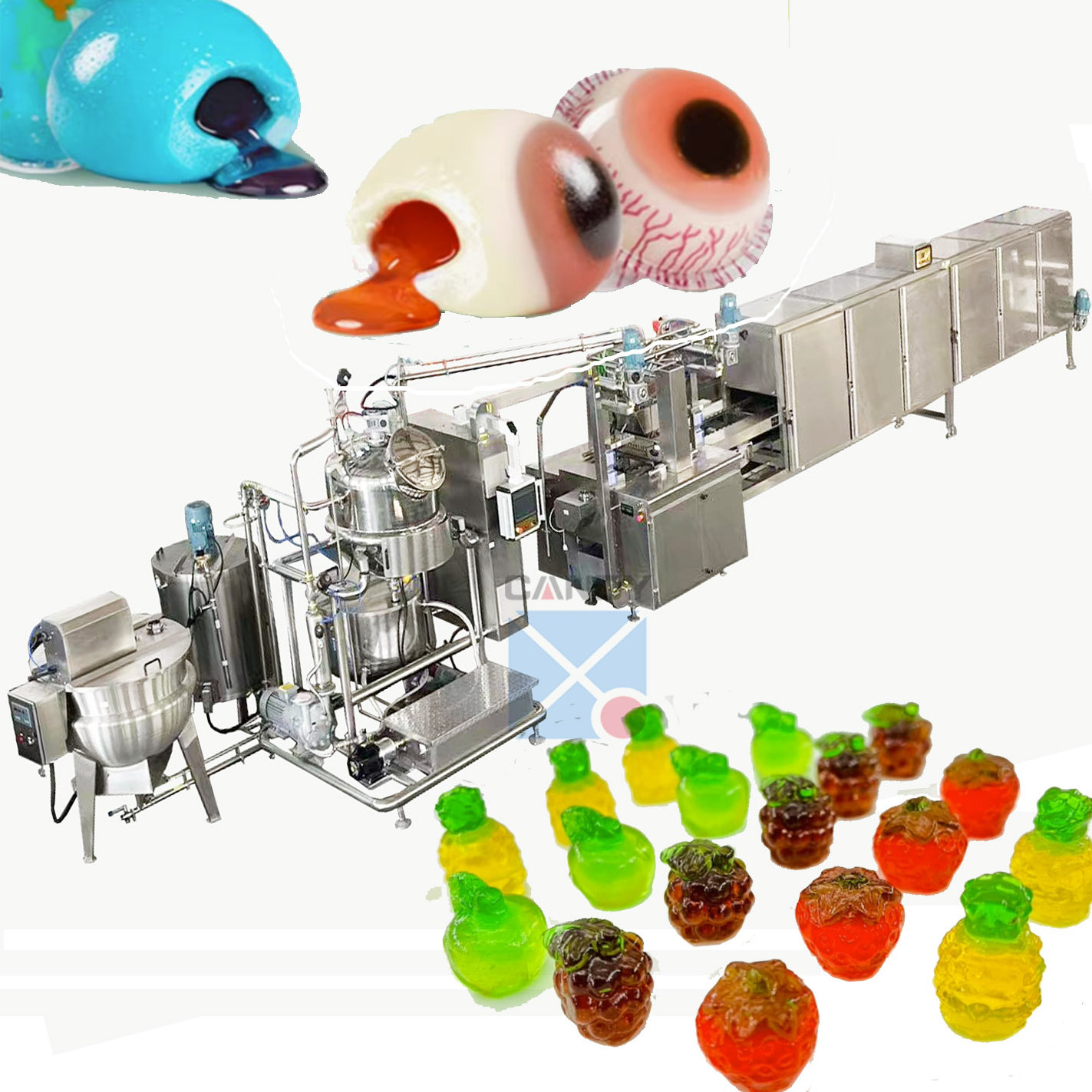

Real Factory Cheap price eyes ball gummy Line center filling gummy making Machine
Product Introduction
Real Factory Cheap price with engineer installation eyes ball gummy Line center filling gummy making Machine
Center filling eyes ball gummy is made by gelatin, through an aeration machine, gelatin will become air aerated and white color, this material is sticky.
CANDY unique designed multi-depositors machine is able to fill this sticky material into a book mould. Then fill center filling jam. After cooling, the ready will come out and going for blister packing. This machine can also use to fill other gummy with single color or multiple colors.
Real Factory Cheap price with engineer installation eyes ball gummy Line center filling gummy making Machine
The line use CANDY unique designed air aerator and servo depositor
eyes ball gummy Line center filling gummy making Machine
The line is equipped with arm mounting touch screen and CANDY unique designed book mold for eyeball
|
SPECIFICATIONS FOR
eyes ball gummy Line center filling gummy making Machine
|
|
|
|
|
||||
|
Model No.
|
SGDQ150
|
SGDQ300
|
SGDQ450
|
SGDQ600
|
||||
|
Capacity
|
150-200kgs/H
|
250-300 kgs/H
|
350-450KG/H
|
500-600KG/H
|
||||
|
Candy weight
|
Designed as per candy size
|
|
|
|
||||
|
Depositing Speed
|
30- 50 strokes/min
|
30- 50 strokes/min
|
30-50 strokes/min
|
30-50 strokes/min
|
||||
|
Working Condition
|
Drying room: Temperature 20~25°C, Humidity less than 50%
|
|
|
|
||||
|
Machine Power
|
45kw
|
50kw
|
55Kw
|
60Kw
|
||||
|
Length
|
24 meters
|
24 meters
|
24 meters
|
24 meters
|
||||
|
Gross weight
|
4000KG
|
5000KG
|
6000kg
|
7000kg
|
||||
Center filling eyes ball gummy making Machine
1. With multiple head depositors and Custom made cooling tunnel
2. Use unique design book type moulds
3. Also suitable for the production of gelatin, pectin, agar, carrageenan based gummy.
4. Machine is made of full stainless steel 304 material.
2. Use unique design book type moulds
3. Also suitable for the production of gelatin, pectin, agar, carrageenan based gummy.
4. Machine is made of full stainless steel 304 material.
Other 3D gummy can be made from the line:
A. Single color 3D gummy with center filling
B. Two colors 3D gummy with center filling
About Us
Shanghai Candy Machine Co., Ltd.
Is established in 2006, We are a professional confectionery machine manufacturer and candy production technology solution provider for global users.
Our machines are mainly used for the production of candy, lollipop, gummy, toffee, chocolate, chocolate bean, cereal bar etc. With the professional engineer support, high efficiency sales team, competitive price superiority and excellent after sell service, we attract customers from all over the world, all our machines are CE approved and have been exported to many countries.
Warmly welcome worldwide customers to visit our factory, establish long term cooperation relationship on basis of mutual benefit. CANDY is your advisable choice for candy machines.
Our machines are mainly used for the production of candy, lollipop, gummy, toffee, chocolate, chocolate bean, cereal bar etc. With the professional engineer support, high efficiency sales team, competitive price superiority and excellent after sell service, we attract customers from all over the world, all our machines are CE approved and have been exported to many countries.
Warmly welcome worldwide customers to visit our factory, establish long term cooperation relationship on basis of mutual benefit. CANDY is your advisable choice for candy machines.
--------------------------F A Q-----------------------------------
Q: Are you trading company or manufacturer ?
A: We are 100% real manufacturing factory located in Shanghai, fengxian area, with more than 20 years manufacturing experience for candy machine.
Q: Do you provide installation recipes for the machine?
A: Yes, we will send engineers to client factory for installation and training of operator once machine arrived, and we will provide a basic recipe to run on the machine, clients can add additional ingredients and adjust favor based on that.
Q: What are the advantages of your company over others?
A: Technology and service . We have an very experienced technical team working in this field for 20 years, also our sales staff also work more than 10 years, we are very professional and can proposal the most suitable proposal machine according to your requirement, and we have better after sale service than others.
A: We are 100% real manufacturing factory located in Shanghai, fengxian area, with more than 20 years manufacturing experience for candy machine.
Q: Do you provide installation recipes for the machine?
A: Yes, we will send engineers to client factory for installation and training of operator once machine arrived, and we will provide a basic recipe to run on the machine, clients can add additional ingredients and adjust favor based on that.
Q: What are the advantages of your company over others?
A: Technology and service . We have an very experienced technical team working in this field for 20 years, also our sales staff also work more than 10 years, we are very professional and can proposal the most suitable proposal machine according to your requirement, and we have better after sale service than others.
