Quick Details
-
Voltage:
-
380V
-
Power:
-
22-30KW
-
Dimension(L*W*H):
-
1850*730*1240mm
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Wood chipper with CE
-
Main shaft speed:
-
550 r/min
-
Capacity:
-
5 T/H
-
Blade(steel):
-
4 piece
-
Feeding inlet size:
-
200*200mm
-
Color:
-
As customer requirment
-
Raw material:
-
Straw
-
Application:
-
Wood Recycling
-
Product name:
-
Wood Chipper Crusher
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SG
-
Marketing Type:
-
Hot Product
-
Voltage:
-
380V
-
Power:
-
22-30KW
-
Dimension(L*W*H):
-
1850*730*1240mm
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Wood chipper with CE
-
Main shaft speed:
-
550 r/min
-
Capacity:
-
5 T/H
-
Blade(steel):
-
4 piece
-
Feeding inlet size:
-
200*200mm
-
Color:
-
As customer requirment
-
Raw material:
-
Straw
-
Application:
-
Wood Recycling
-
Product name:
-
Wood Chipper Crusher

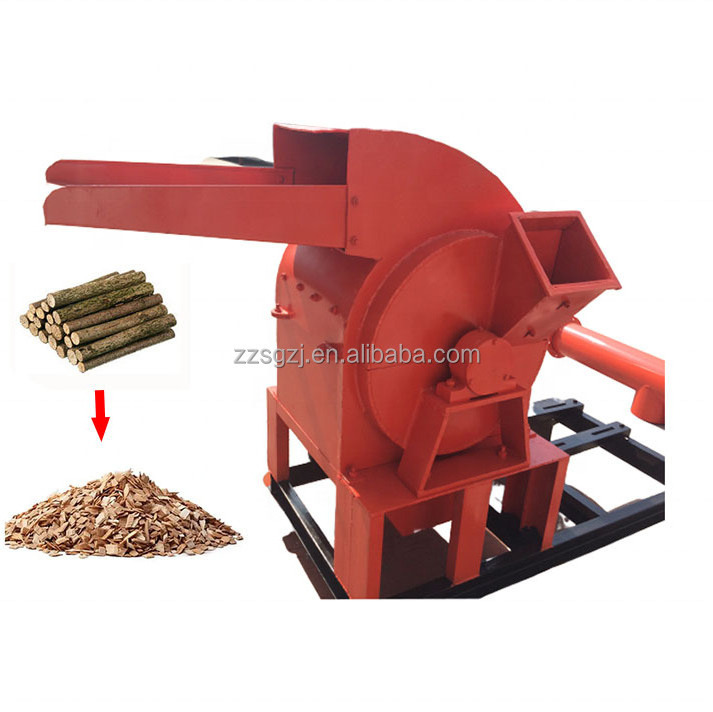

Easy Operate and Maintenance mobile industrial wood chipper knives
Wood chipper with CE
Introduce
SG series wood chipper machine is the new designed ideal equipment for paper making industry,borad making industry.It can process the wood,branch,bamboo into chips,with the
advantage of low investment,low energy consumption,high efficiency,easy to maintain,is the
best way to get rich for developing such machine.
Type:
We have diesel and motor two types of wood chipper machine.
Electrical motor
Diesel motor
Working principle
Wood from the inlet into the machine, when by exposure to cutting blade, with the cutting knife disc rotates at high speed for cutting, the cutting wood in the cutting chamber by cutting cutter blades generated by high-speed steam flow.
Consist of
This crusher machine is made up of base,feeding port,cutter base,frame,cutter and
electrical cabinet,in accordence to different demands equipped with different cutter to
produce different model and thickness wood chipper.
Cutter:
Blades disk
Main technical specifications
| Model |
Capacity (t) |
Disk diameter (mm) |
Powder (kw) |
Weight (kg) |
Main shaft speed (r/min) |
Blade(steel) |
Feeding inlet size (mm) |
Overall size(mm) |
| SG-400 | 1 | 400 | 7.5 | 160 | 650 | 3 | 150*150 | 1200*500*800 |
| SG-420 | 1.5 | 420 | 7.5 | __ | 600 | 3 | 150*150 | 1200*500*800 |
| SG-600 | 2 | 600 | 15 | 380 | 600 |
3 |
180*150 | 1500*570*1050 |
| SG-700 | 3-4 | 650 | 18.5 | __ | 600 |
3 |
190*200 | 1500*680*1100 |
| SG-800 | 5 | 735 | 30 | 520 | 550 | 4 | 200*220 | 1850*730*1240 |
| SG-950 | 8 | 830 | 37 | 950 | 550 | 4 | 230*250 | 1900*820*1500 |
| SG-1150 | 12 | 1150 | 75 | 2000 | 500 | 4 | 330*300 | 2560*1150*1800 |
| SG-1410 | 15-16 | 1410 | 110 | 2600 | 500 | 4 | 400*400 |
2900*1400*2350
|
| SG-1500 | 20 | 1500 | 132 | 3500 | 500 | 4 | 480*450 | _____________ |
Note: the above models can be customized according to user requirements.
Advantage:
1. New type wood chipper---big disk wood chipper machine,branch chipper, plate chipper
with high capacity,good chipper quality,cost-effective
2. I mpact structure,reasonable design,easy installation,convenient operation and maintenance,
high capacity,when chip log,chipper with good effect,besides,the length of chipper can be
adjustable freely,is the advance-technology national machine in wood processing
industry.
3. D isk-type wood chipper machine choose based on your own demands.
What is the main spare parts?
it is the cutter,. blade and screen
Is the machine stable running and good quality ?
Yes, it is
