Quick Details
-
Weight:
-
2000 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
12kw
-
Dimension(L*W*H):
-
3400mmX1800mmX1800mm
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
55m/min
-
Model:
-

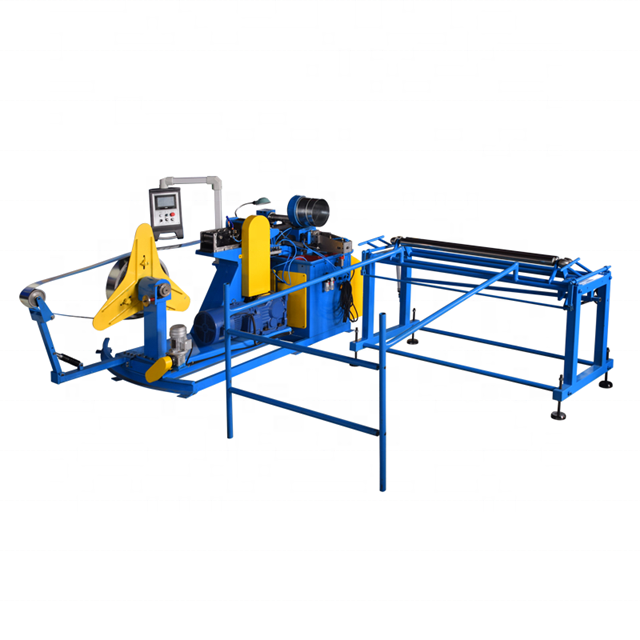

VKL--1600 spiral pipe forming machine
-
Tube diameter:
-
100 - 1600 mm
-
Thickness of strip:
-
0.4- 1.2 mm
-
Pipe Material:
-
Galvanized sheet, aluminum sheet, stainless steel
-
Application:
-
HVAC
-
Voltage:
-
220v/240v/380v/415v/440v/etc
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Control System:
-
PLC
-
Brand:
-
Viken
Quick Details
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
Viken
-
Condition:
-
New
-
Weight:
-
2000 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
12kw
-
Dimension(L*W*H):
-
3400mmX1800mmX1800mm
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
55m/min
-
Model:
-
VKL--1600 spiral pipe forming machine
-
Tube diameter:
-
100 - 1600 mm
-
Thickness of strip:
-
0.4- 1.2 mm
-
Pipe Material:
-
Galvanized sheet, aluminum sheet, stainless steel
-
Application:
-
HVAC
-
Voltage:
-
220v/240v/380v/415v/440v/etc
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Optional
-
Control System:
-
PLC
-
Brand:
-
Viken
| Model | VKL-1600/VKL-1600B |
|
Tube diameter |
100-1600mm |
| Tube length | 120-8000mm |
| Suitable material | Galvanized steel,Stainless steel, Aluminum |
| Thickness of strip | 0.4-1.2mm (SS 0.4-0.8mm) |
| Width of strip | 137mm |
| Strip speed | 55m/min |
| Lock seam | Outside tube, on the inside on request |
| Control system | PLC |
| Motor power | 12kw main motor / 0.75kw hydraulic motor / 0.12kw swam lock wheel |
| Weight | 2000kg |
| Dimension | 3400*1800*1800mm / 2000*1000*1100mm (tube holder) |
Main components:
| Motor | WNM Brand (China) / Siemens Brand (Optional) |
| Air Cylinder | SNS-China |
| PLC | Viken-China |
| Frequency Transformer | Mitsubisi-Japan |
| Electric Brand | Schneider-France |
| Rolls Material | GCr15 |
| Rollers Stations | 5 Stations |
1. Usage and maintenance:
Re: spiral pipe forming machine is totally designed and manufacture by Viken, for usage and maintenance, please add my wechat: wwq1314cxj or whatsapp: 0086 18026400316.
2. What’s the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 3 years.
FOB: Nanjing / Shanghai/or others port in CHINA.
4. What’s the package?
Re:Fumigation-free plywood case or without package.
5. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
6. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
2. What’s the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 3 years.
FOB: Nanjing / Shanghai/or others port in CHINA.
4. What’s the package?
Re:Fumigation-free plywood case or without package.
5. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
6. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
