- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2.2X1.5X1.75m
-
Weight:
-
1000kg
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001/CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Ball Winder Machine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROPE NET
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2.2X1.5X1.75m
-
Weight:
-
1000kg
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001/CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Ball Winder Machine

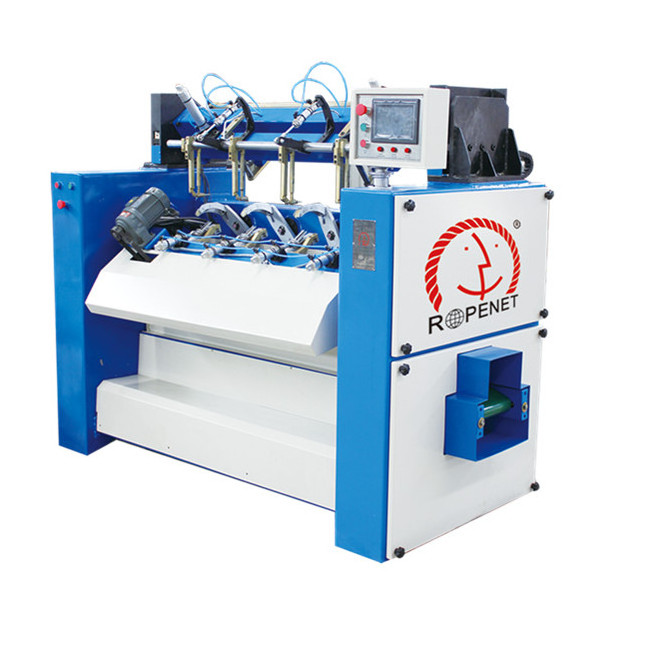

Automatic Ball Winder/Automatic Ball Winding Machine
Product Application
The machine is suitable for winding different size of PP split-film, flat yarn, cotton into ball shape. The PLC control system makes it feeding automatically, unloading automatically, convey automatically, count automatically, yarn break stop automatically.
* Automatic feeding
* Automatic clipping
* Automatic doffing
* Automatic winding tension adjustment
* Reliable in continuous operation
Model | RMBL-80 | RMBL-100 | RMBL-120 | RMBL-140 |
Size of Twine | 0.8-2mm | 0.8-2mm | 0.8-2mm | 0.8-2mm |
Dia. of Ball | 40-80mm | 60-100mm | 80-120mm | 100-140mm |
Winding Speed | 0-600rpm | 0-600rpm | 0-600rpm | 0-600rpm |
Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa | 0.6-0.8 MPa | 0.6-0.8 MPa |
Total Power | 2kw | 2.2kw | 2.5kw | 3kw |
Company Image and Production Flow:
Our Certifications:
Packaging and Delivery:
Our Main Products:
Extruder & Ring Twister & Rope Making Machine:
Braiding Machine & Hawser Machine & D type Rope Making Machine:
Ball Automatic Hank Winder & High Speed Hank Winder & Manual Hank Winder:
Rope Coiler & Automatic Ball Winder & Multi-head Ball Winder:
Six Head Spool Winder & Two Head Spool Winder & 2 in 1 Spool Winder:
AFTERSALES Sevices
1 .Installation Service
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
