Quick Details
-
Brand Name:
-
ES
-
Model Number:
-
T-D12150-A
-
Application:
-
Halogen Lamp
-
Certification:
-
UL CUL
-
Product Name:
-

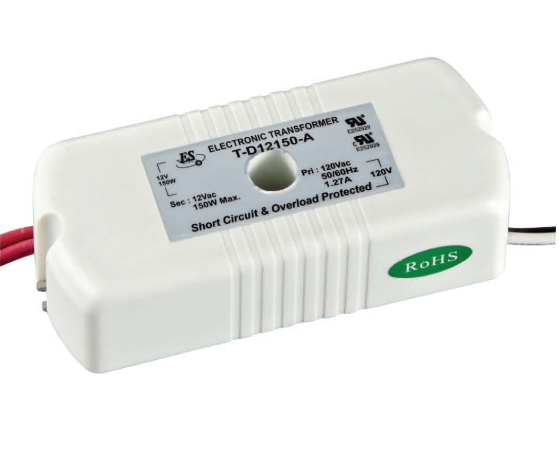

Electronic Transformer
-
Type:
-
Consant Current
-
Efficiency:
-
90%
-
Output Voltage:
-
12VAC
-
Protections:
-
Over Current, Short Circuit,Over temp
-
Size:
-
109*46*29mm
-
Case material:
-
Plastice
-
Color:
-
White
Quick Details
-
Usage:
-
Lighting
-
Phase:
-
Single
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ES
-
Model Number:
-
T-D12150-A
-
Application:
-
Halogen Lamp
-
Certification:
-
UL CUL
-
Product Name:
-
Electronic Transformer
-
Type:
-
Consant Current
-
Efficiency:
-
90%
-
Output Voltage:
-
12VAC
-
Protections:
-
Over Current, Short Circuit,Over temp
-
Size:
-
109*46*29mm
-
Case material:
-
Plastice
-
Color:
-
White
Products Description
|
Model No.
|
|
T-D12105-A
|
T-D12150-A
|
|
|
INPUT
|
DC Voltage
|
110-120VAC; 50Hz / 60Hz
|
|
|
|
|
Rated Current
|
0.9A at 115Vac
|
1.25A at 115Vac
|
|
|
|
Current Range
|
>0.95 at 115Vac with full load.
|
|
|
|
|
Rated Power
|
N/A
|
|
|
|
|
Ripple & Noise(Max.) Note.2
|
N/A
|
|
|
|
OUTPUT
|
AC Voltage Range
|
11.5V'±6%
|
|
|
|
|
Min. Power
|
20W
|
35W
|
|
|
|
Rated Max. Power
|
105W
|
150W
|
|
|
|
Efficency note.1
|
85%
|
90%
|
|
|
Others
|
Dimension (L*W*H)
|
109 * 46 *29mm
|
|
|
|
|
Packing (L*W*H) / Carton
|
315 * 270 * 210mm; 50pcs/16.0Kg
|
|
|
