Quick Details
-
Brand Name:
-
Fibertel
-
Use:
-
FTTH/FTTB/FTTx
-
Warranty Time:
-
1 year
-
Product name:
-

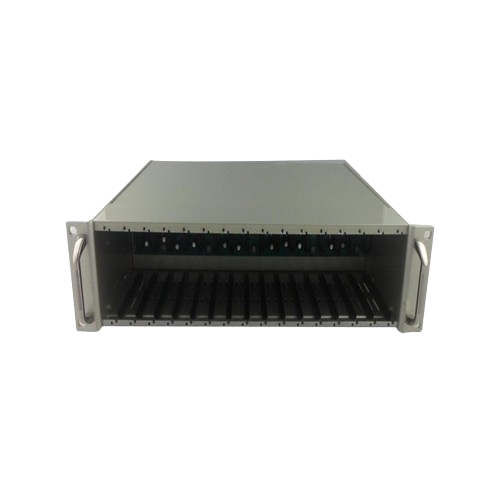

16-Slot Fiber Optic Transceiver Rack Chassis
-
Part No.:
-
TJ50MC16S
-
Number of power supply:
-
Dual power supply
-
Storage temperature:
-
-40℃ ~ +85℃
-
Working temperature:
-
-20℃ ~ +65℃
-
Humidity:
-
5%~95% non-condensing
-
Product Size:
-
483mm* 285mm* 90mm
-
Color:
-
Black or Silvery
-
Weight:
-
8.0Kg
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
TJ50MC16S
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fibertel
-
Use:
-
FTTH/FTTB/FTTx
-
Warranty Time:
-
1 year
-
Product name:
-
16-Slot Fiber Optic Transceiver Rack Chassis
-
Part No.:
-
TJ50MC16S
-
Number of power supply:
-
Dual power supply
-
Storage temperature:
-
-40℃ ~ +85℃
-
Working temperature:
-
-20℃ ~ +65℃
-
Humidity:
-
5%~95% non-condensing
-
Product Size:
-
483mm* 285mm* 90mm
-
Color:
-
Black or Silvery
-
Weight:
-
8.0Kg
Product Description
Description:
This Series 16-Slot Fiber Optic Transceiver Rack Chassis is a standard 2U19-inch, centrally-powered fiber optic transceiver
system. This Rack Chassis equipped with the main and backup power supply; can be inserted 10/100M, 10/100/1000M series fiber optic transceiver modules and single-mode converter module and 1 fiber port & 1 RJ45 port fiber switch, and support for hot-swappable.
The Media Converter chassis adopts communication isolation technology to separate the power supply from the transceiver module completely, to ensure the reliability of the whole system.
Features:
* The configuration of main and backup power supply ensures uninterrupted work of the system;
* AC220V and DC-48V two kinds of power supply to make the system suitable for a variety of work environments;
* Adopting modular power supply is easy to maintain and has good shielding effect;
* Support multiple modules to work at the same time, greatly improving the system's applicability;
* Each module supports hot swap function;
* It is suitable for telecommunication, CATV, Ethernet optical fiber data centralization and network management;
* Requiring high performance network security protection system;
* The chassis structure is designed with 2U standard, which can be easily installed on the rack of the engine room, and dual fan
exhaust have good heat dissipation performance;
* Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations.
* AC220V and DC-48V two kinds of power supply to make the system suitable for a variety of work environments;
* Adopting modular power supply is easy to maintain and has good shielding effect;
* Support multiple modules to work at the same time, greatly improving the system's applicability;
* Each module supports hot swap function;
* It is suitable for telecommunication, CATV, Ethernet optical fiber data centralization and network management;
* Requiring high performance network security protection system;
* The chassis structure is designed with 2U standard, which can be easily installed on the rack of the engine room, and dual fan
exhaust have good heat dissipation performance;
* Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations.
Details Images
|
Part No.
|
TJ50MC16S
|
|
|
|
Number of power supply
|
Dual power supply
|
|
|
|
Power supply
|
Input voltage :AC 100 ~ 240V, 50~60Hz 3.0A(max); Or DC48V
|
|
|
|
|
Output voltage:DC5V 12A(max)
|
|
|
|
|
Ripple voltage ≤ 50Mv
|
|
|
|
|
Noise ≤ 100Mv
|
|
|
|
Dimention
|
483mm* 285mm* 90mm (Standard 19-Inch, 2U height)
|
|
|
|
Weight (kg)
|
8.0Kg
|
|
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|
|
|
Operating Temperature
|
-20℃ ~ +65℃
|
|
|
