Quick Details
-
Type:
-
Balun connector
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOST , OEM
-
Model Number:
-
STT- 408HD
-
Type:
-
Balun connector

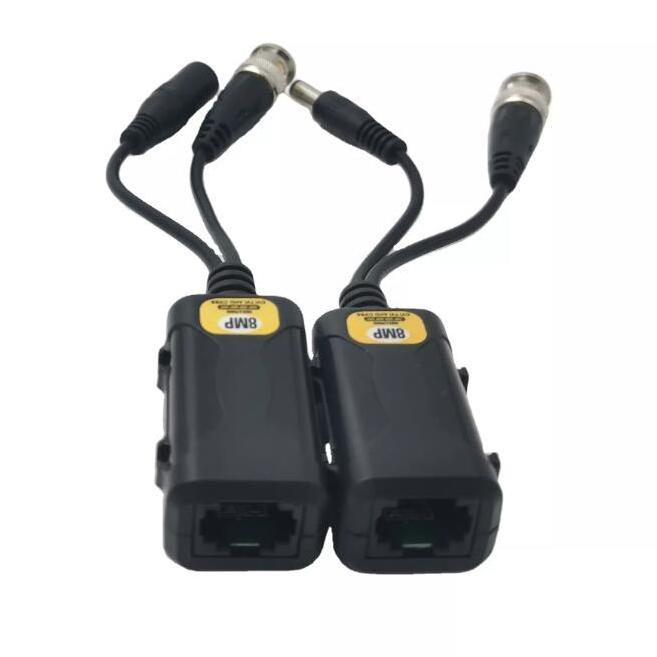

HD 8MP Passive Power Video Balun Audio to RJ45 Connector Converter Supply Passive Transceiver For CCTV Camera System
8MP:Video+Power Supply 2IN1
1:RJ45+DC+BNC 2 in 1 Interface. Video transmission Via UTP CAT5.
2:Compatible with HD-CVI, TVI, CVBS and AHD video Fit for 720P/960P/1080P/8MP
3:HD-CVI / TVI / AHD/ CVBS Passive Video & power Balun : the longest run color was about 1000 ft (300M)HD transmitter.
4:Green lighting is working model , yellow lighting not working.
5:Transmission distance: 720P CVI/AHD / CVBS Max.820ft (250M) ; 1080P CVI/TVI/AHD Max. 656ft (200M).
|
|
ITEM |
SPECIFICATION |
|
Properties |
Transmission signal |
1 channel |
|
Transmission distance |
AHD/CVI:3MP 300M/4MP 200M/5MP 150M/8MP 120M |
|
|
TVI/CVBS:3MP 200M/ 4MP 150M/5MP 100M/8MP 120M |
||
|
Category Type |
Category 5e/ Category 6 only |
|
|
Stability |
MTBF |
>10000 Hours |
|
Video Transmission Contents and Port |
Coaxial Video Connector |
BNC-M |
|
Twisted-pair Video Connector |
Push-terminal |
|
|
Compatible Format |
CVI/TVI/AHD/CVBS |
|
|
Resolution |
720P/960P/1080P/3MP/4MP/5MP/8MP |
|
|
Anti-interference |
>60db |
|
|
Protection |
ESD |
1a contact discharge electricity level 3 |
|
1b air discharge electricity level 3 |
||
|
Per: IEC61000-4-2 |
||
|
Coaxial Cable Connector |
2KV(common-code)Per:IEC1000-4-5 |
|
|
UTP Cable Connector |
2KV(different-code),4KV(common-code) Per: IEC1000-4-5 |
|
|
Power |
Power Transmission |
Power Voltage Drop Calculation:For 12V DC 1Amp,cable distance shoule not exceed 90feet/27meters.For longer distance,please use 14V DC,16V DC,18V DC,20-48V DC... |
