Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Online support
-
Brand Name:
-
FOTON
-
Model:
-
DKV5040XLCBJ6AF
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
9150x2600x3700
-
Box Dimensions (L x W x H) (mm):
-
6800x2440x2450
-

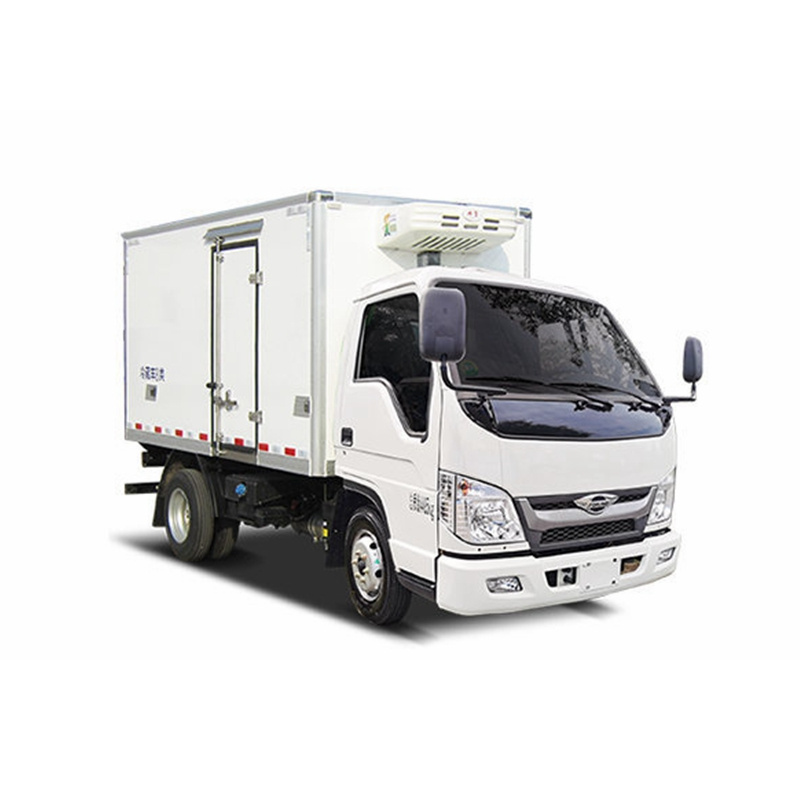

product name:
-
Refrigerated truck
-
Total mass(Kg):
-
16000
-
Rated load mass (Kg):
-
8490 / 8425 / 7925 / 7990
-
Curb weight (Kg):
-
7380 / 7880
-
Axle load(Kg):
-
5600/10400
-
Overall dimensions (mm):
-
9150x2600x3700,
-
Cargo compartment size (mm):
-
6800x2440x2450
-
Front suspension/rear suspension (mm):
-
1370/2835
-
Maximum speed (Km/h):
-
100,89
-
Number of axes:
-
4
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Onsite Installation, Online support
-
Brand Name:
-
FOTON
-
Model:
-
DKV5040XLCBJ6AF
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
9150x2600x3700
-
Box Dimensions (L x W x H) (mm):
-
6800x2440x2450
-
product name:
-
Refrigerated truck
-
Total mass(Kg):
-
16000
-
Rated load mass (Kg):
-
8490 / 8425 / 7925 / 7990
-
Curb weight (Kg):
-
7380 / 7880
-
Axle load(Kg):
-
5600/10400
-
Overall dimensions (mm):
-
9150x2600x3700,
-
Cargo compartment size (mm):
-
6800x2440x2450
-
Front suspension/rear suspension (mm):
-
1370/2835
-
Maximum speed (Km/h):
-
100,89
-
Number of axes:
-
4
Specification
|
Drive form:
|
4X2
|
|
Box length level:
|
3530,3500mm
|
|
Gearbox:
|
Wanliyang WLY5TS32
|
|
Body width:
|
1885mm
|
|
Front track:
|
1495,1415(mm)
|
|
Vehicle weight:
|
2470(Kg)
|
|
Total mass:
|
4495(Kg)
|
|
Approach angle:
|
20 degrees
|
|
Market segments:
|
Cold chain transportation
|
|
type:
|
Refrigerated truck
|
|
Wheelbase:
|
2850(mm)
|
|
engine:
|
Quanchai Q23-115E60, Q23-115C60
|
|
Body length:
|
5490mm
|
|
Body height:
|
2810mm
|
|
Rear wheelbase:
|
1435(mm)
|
|
Rated load:
|
1895(Kg)
|
|
Maximum speed:
|
105(km/h)
|
|
Tonnage level:
|
light truck
|
|
Departure angle:
|
16 degrees
|
|
Front suspension/rear suspension:
|
1130/1510(mm)
|
